Futaba R114F 4-Channel FM Rx 40MHz High with Short Crystal  [R114F]

Futaba (#R114F) - Futaba 4-Channel FM Rx 40MHz high with brief Crystal

RECORDS FROM OUR TECH DEPARTMENT

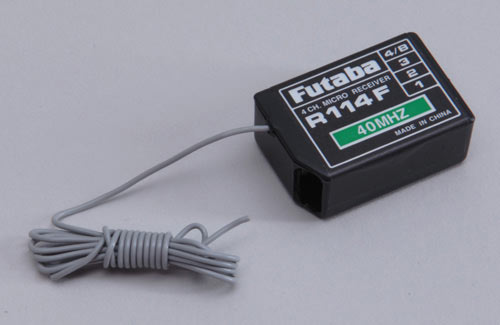

This is a R114F 4-Channel HI 40MHz FM Receiver "With Crystal" from Futaba.

FEATURES:

Narrow-band spacing and superior indication filtering combined to
provide exceptionally clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to use an individual radio transmitter
to run a number of different models.
Perfect for Park or slowly Flyers.
Range of around 650 base (200m)

SPECS: Narrow Band: 20kHz
Power Requirements: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 10mA
Length: 1-1/4" (31.75mm)
Width: 1/2" (.02mm)
Height: 7/8" (.28mm)
fat: 0.35 oz (9.9g)

COMMENTARY: Unique Notice about Frequency Changes-
*72MHz- minimal musical company networks 11 to 35; tall musical company systems 36 to 60.
Receiver crystal networks (11-35 or 36-60) Within Each Band
Can stay Changed, and do not need a retuning the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical company, OR from high to low musical company without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands cannot under any
circumstances be interchanged together. The receiver Must
be provided for retuning toward appropriate musical company.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within the respective bands. You will discover no real high or low bands such
as the 72MHz musical company has.
*Transmitter Crystals cannot be changed to another channel except
by an avowed solution center. It is against FCC guidelines, and
illegal the particular to enhance a frequency determining component
of a transmitter. If radio just isn't retuned, it may possibly be a hazard
spectators, modelers or home, and void AMA protection.
*Check utilizing the regional R/C club the frequencies used in town.
