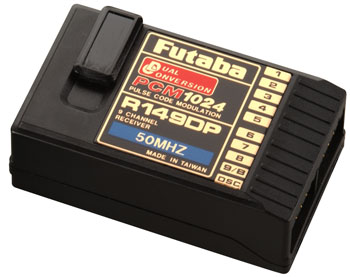

Futaba R149DP 9-Channel PCM Rx 50MHz/ 72MHz High w/o Crystal  [R149DP]

Futaba (#R149DP) - Futaba R149DP 9-Channel PCM Rx 72MHz tall w/o Crystal

NOTES FROM OUR TECH DEPARTMENT
This is a R149DP 9-Ch 72MHz PCM 1024 Dual Conversion Receiver Without Crystal.
This is an increased Band (channel 36-60) receiver without a crystal (see NEEDS).

QUALITIES: Narrow-band spacing and dual transformation indicator filtering combined to
provide exceedingly clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to use an individual radio transmitter
to travel many different model aircraft. Really pilots whom are
utilizing computerized radios with multi-model memory.

INCLUDES: One R149DP Miniature 9 Channel 72MHz PCM 1024 Receiver

NEEDS: One FUTL58** Dual Conversion Receiver Crystal

SPECS: Narrow Band: 20KHz
Intermediate Frequency- 1st IF: 10.7MHz
2nd IF: 455kHz
Power needs: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 15mA
Length: 2.16" (55.0mm)
Width: 1.27" (32.0mm)
Height: 0.82" (21.0mm)
fat: 1.2 oz (36g)
COMMENTS: 1024 Resolution seriously isn't suitable for Older PCM 512 methods.
For the transmitter/receiver crystal set, use FUTL20**.
For the Tall Band, use FUTL0903.
Special Notice about Frequency Changes-
*72MHz- Low musical organization channels 11 to 35; High band channels 36 to 60.
Receiver crystal systems (11-35 or 36-60) Within Each Band
Can be Changed, nor need a retuning the receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical business, OR from high to low musical company without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz regularity Bands cannot under any
circumstances be interchanged together. 72/75:receiver Must
be introduced for retuning towards appropriate musical organization. 50/27: can not do.
*50MHz, 27MHz and 75MHz receiver crystals might be changed anywhere
within the bands. You will find not any real high or low bands such
as the 72MHz musical organization has.
*Transmitter Crystals cannot be changed to some other channel except
by a certified solution center. It is actually against FCC guidelines, and
illegal you to definitely improve a frequency determining component
of a transmitter. In case radio isn't retuned, it could be a hazard
spectators, modelers or property, and void AMA protection.
*Check because of the community R/C club the frequencies present town
