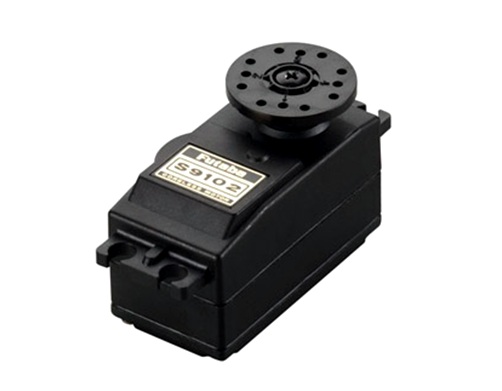

Futaba S9102 Servo Aileron  [S9102]

this is a Futaba S9102 Aileron Servo designed for In-Wing applications. It might produce high-current draw from your batteries if utilizing NiMH or LiPo batteries, encourage them to with the capacity of delivering enough amps.

QUALITIES:
Two Ball Bearings
Coreless motor
Nylon Gears
Thin Profile
Dust and Waterproof
12 months warranty

INCLUDES:
One S9102 Aileron Servo w/J Connector

SPECS:
Length: 1.8" (40mm)
Width: 0.9" (20mm)
Height: 1.4" (36mm)
Weight: 1.7oz (48g)
Torque: 40 oz-in (2.9kg/cm) @ 4.8V
50 oz-in (3.6kg/cm) @ 6V
Transit Speed: .16 sec/60�X @ 4.8V, .13 sec/60�X @ 6V

REMARKS:
For Gromments purchase, FUTM2346
For Eyelets purchase, FUTM2347
For Mounting Screws, purchase FUTM2250
