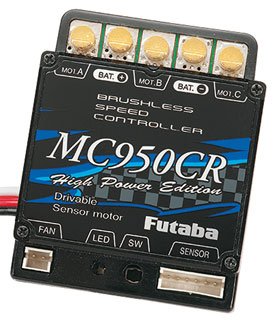

Futaba MC950CR Brushless ESC [MC950CR]

Price:

NZD$188.23

Brand:

Futaba

Model:

MC950CR

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category

Write a review

Description

The MC950CR may be the brushless ESC with features that racers want many.
Severely adjustable, with the ability to alter parameters through your transmitter ?V no laptop required.

Big, remote solder articles for quicker, safer cable accessory.

Characteristics Include:

Controllable regularity by load effect
One push switch for developing fundamental
present limiter
heat security / decrease
minimal Voltage security / For LiPo or life time
Reverse terminal security
Alarm
3 colors LED
Serial relationship
Aluminum top situation / center example / heat sink (choice)
Super core cable 14AWG
Data signing
Reverse function
developing Menu:
PWM regularity (at Min. load)
PWM regularity (at Max. load)
PWM regularity at Brake
Dead Band
Minimal Batt. Protection
Active Limiter
Present Limiter (Time Frame)
Present Limit timer
Brake Max. Duty
Reverse Max. Duty
Neutral Brake
Increase
Brake timer
Reverse mode modification level
Lead Angle (engine timing)
Reverse Cancel
Robot Mode
Present Limiter disable

NEEDS

Inventory amount: FUTM0955
ahead / Reverse (Brake): 255 action
energy requires: Nicd, NiMH battery power 4-7 cells (4.8-8.4V)
Motor limitation: Over 2.5T (With optional heat sink & fan)
Input voltage: NiCd / NiMH 4~7 cells (4.8V~8.4V)
Ahead PWM regularity: 500~30,000Hz/Initial Value: 3.0kHz~5.0kHz
Reverse (Brake) regularity: 500~30,000Hz/ Initial Value: 1.0kHz
Max provide: 900A (Momentary load: 1300A)
Size: 37.2 x 36.6 x 14mm
bodyweight: 33.3g
BEC: 6V / 2A
information logging: 1024sec (1 sec action)
Serial communication: 9,600bps (8bit)
FET: 30pcs (5pcs/pole)
developing: One-touch input by push key switch
