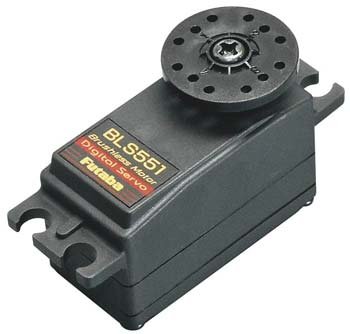

Futaba BLS551 Brushless Low Profile Car Servo  [BLS551]

This is actually the BLS551 Digital Brushless Low Profile vehicle Servo from Futaba.
This servo produces high-current draw from receiver batteries
simply use NiCd receiver batteries.

QUALITIES:

• Low profile design suited to 1/10 & 1/8 scale steering applications
• Designed with brushless motor, steel gears and two ball bearings for smooth procedure and endurance
• Exact identical energy usage as brushed electronic servos

INCLUDES:

• BLS551 Digital Brushless Minimal Profile Automobile Servo
• 0.83" (21mm) diameter Round Horn
• 1.7" (44mm) 3-sided Servo Horn
• 3x8mm Horn Screw, FUTM2290
• Two Rubber Mounting Dampers and Four Metal Eyelets
• Instruction Sheet
• NOTE, Mounting screws are not included, purchase FUTM2250 if needed

NEEDS:

Installing in model, connecting linkage and linking to receiver

SPECS:

• Torque: 102 oz-in (7.4 kg-cm) @ 4.8V 128 oz-in (9.2 kg-cm) @ 6V
• Speed: 0.13 sec/60?X @ 4.8V 0.10 sec/60?X @ 6V
• Proportions: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
• body weight: 1.6 oz (44g)

RESPONSES:

To be utilized simply with FM, PCM and HRS systems. To not be used with AM systems.
