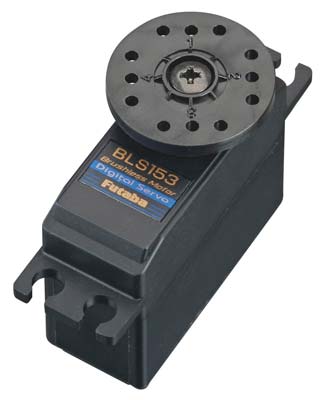

Futaba BLS153 Brushless Mini Air Servo  [BLS153]

TRAITS:

• Mini size for applications which area and fat will be in reasonably limited
• At least five times more powerful than brushed servos
• Twin ball bearings and Samarium cobalt magnets
• Smoother procedure and greater resistance to jolts and vibration
• Same energy usage as brushed electronic servos

INCLUDES:

Futaba BLS153 Servo with 0.83" (21mm) circular horn, 1.2" (32mm) six point horn, 1.5" (39mm) four point horn, four plastic grommets, four eyelets, four 1.5 x 12mm mounting screws and instruction sheet

NEEDS:

Establishing in aircraft, connecting linkage and connecting to receiver

SPECS:

• Energy: 4.8V - 6V NiCd battery power just
• Speed: 0.15 sec/60?X @ 4.8V
• 0.12 sec/60?X @ 6V
• Torque: 76.4 oz-in (5.5 kg-cm @ 4.8V)
• 97.2 oz-in (7.0 kg-cm @ 6V)
• Size: 1.40 x 0.6 x 1.1" (35.5 x 15 x 28.6mm)
• Body fat: 0.92oz (26g)

REMARKS:

For complete performance of electronic servos utilize them just with FM, PCM and FASST systems. Avoid electronic servos with AM systems.
