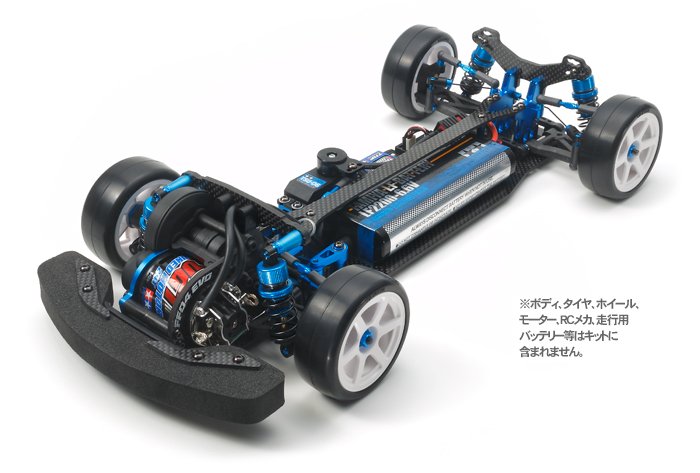

Tamiya 84394 - FF-04 Evo Chassis Kit  [84394]

• The current generation front-motor front-wheel drive FF series framework may be the FF-04 EVO Chassis kit, which develops regarding the carbon fiber double-deck idea of FF-03 EVO Chassis and takes it to a new degree with a selection of upgraded and newly-designed components. The framework provides superior cornering, and employs a dual deck design with 2.5mm thick reduced and 2.0mm thick top carbon fibre decks. Suspension arms use the very same design as those regarding TRF418 touring car framework, and energy is transmitted via an oil-filled gear differential unit housed inside XV-01 framework design gearbox. The consequence is paid off monitor area contact during cornering, including sharper management.

Newly Designed components consist of:

• 2.5mm Thick Carbon Lower Deck

• 3.0mm Thick engine Plate L

• Carbon Upper Deck

• Carbon Bumper Support

• Carbon F/R Damper Stays

• Carbon Servo Plate

• Aluminum Bulkhead

• Aluminum Front Brace

• Aluminum Servo Mount (suitable for low-profile servos)

Featured elements:

• Front Gear Differential Unit

• Double Cardan Drive Shafts

• Fluorine-Sealed Ball Bearings

• TRF Dampers (Tough Ebony Coating)

• Aluminum Turnbuckle Shafts

• Hex Screws

Specifications:

• Scale 1/10

• Construction sort: construction kit

• Terrain use: On-Road

• Drive-train: 2WD FWD

• Drive kind: Gearbox

• Drive line: Universal

• Differential kind: Sealed oil-filled gear

• Suspension: totally split twin wishbone

• Steering process: Bell-crank

• Shock damper: Oil-filled damper

• Shock damper material: Aluminum

• Tire type: not included

• Tire tread: N/A

• Body product: maybe not included

• Chassis item: Carbon fibre plate

• Electronic Speed Control (ESC): maybe not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Engine: N/A

• Bearings: Sealed ball bearing

• Adjustable camber: Yes

• Adjustable toe angles: Front and backside

• Adjustable ground approval: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Yes

• Adjustable track width: Yes

• Adjustable surprise angle: Yes

• Unique function 1: TRF418 suspension system system parts.

• Special function 2: 2.5mm Thick Carbon Lower Deck

• Special function 3: Carbon Upper Deck

• Special function 4: Carbon Bumper Help

• Special function 5: Double Cardan Drive Shafts

• Special function 6: Fluorine-Sealed Ball Bearings

• Unique function 7: TRF Dampers (complex Black Coating)

• Original function 8: Hex Screws

• Special function 9: Aluminum Servo Mount (suitable for low-profile servos)

• Original feature 10: Aluminum Turnbuckle Shafts

• Needs A: 7.2 battery pack & charger

• Requires B: 2-channel radio gear

• Needs C: Wheels, tires, human body set, motor, esc
