This new development for Cobra buggy is recognized after another complete 12 months of rushing across the globe, hearing feedback from numerous (team)drivers and specific assessment on many areas. Based on exact same motorists a responsive end, along side much more steering would bring the Cobra on highest level.
Specs:

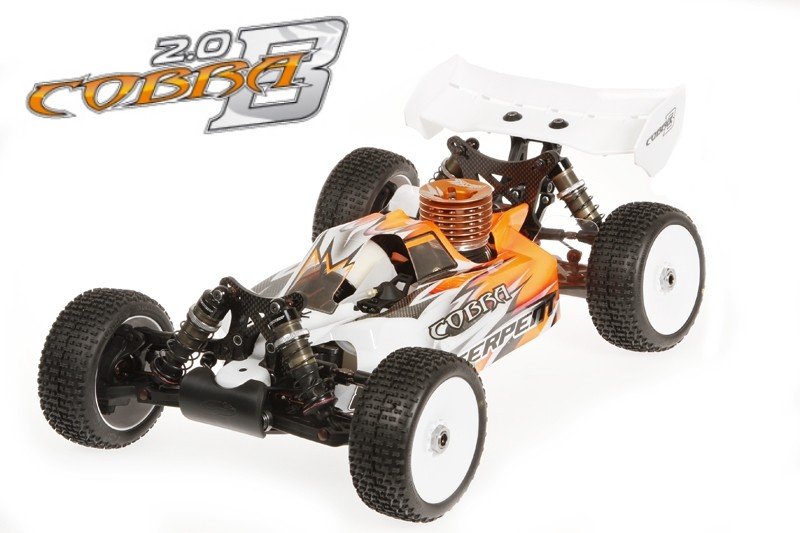

- Name: Serpent 811 Cobra Buggy 2.0
- program: 1/8 scale 4wd buggy
- Type: kit-version, higher end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.300 grms ( competition prepared, varies based on radio-gear and engine)
- Clutch: 4-shoe centrifugal, carbon shoes
- Differential: lightweight, little geardiffs , front, main and back
- Brake: piston kind with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with built-in bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, body, wing, silicone oil, color manual, decalsheet.
- Maybe not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- Groundbreaking wider buttocks with amazing geometry for substantially more right back traction and a less strenuous managing automobile with wider sweetspot
- Tear shockabsorbers relocated towards the trunk from the shocktower
- Longer right back shocks, with considerably longer housing and shockrods to obtain additional travel
- straight back wing with built-in holders the ballraced right back anti-roll club
- Longer back paid down fingers, brand-new higher carbon shocktower, much longer back shock, fresh upright
- Lexan mud-guards to setup on straight back hands
- Nylon mud-scrapers mount regarding straight back uprights
- improved differential gears
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to make flex make lighter. Kick-up angle on front for stabile landings. Countersunk holes. Slots to obtain the best and right back suspension system system mounts precisely. Angled sides to enhance tightness. Laser engraved Cobra logo design.
Bumper
Aligned with framework kikc-up for accurate landings and also to protect front suspension system holde rand anti-roll club.
Chassis stiffners
Composite stiffner front part and right back, to present additional tightness, but still enable some flex as needed.
Central radio / servo mount
Composite radiobox providing you with good room the steering and throttle-servo, the receiver and rx battery power. The whole construction including linkages could possibly be eliminated efficiently and fast in addition, whenever cleansing the automobile, or doing upkeep. One extra post is added towards the servo for safety.
Servo hands and linkages
The servo hands have in fact in reality a splined insert to have the right fit per brand. The linkages operate actually neat and tight and they're a facile task to find to change settings.
Suspension brackets
Beautifully machined 7065 T6 suspension system system system brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks along with 10 dgr C-hubs for accurate steering. Spring metal wheel-axles with big size bearings and bigger in with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make certain you'll definitely not free a wheel nut in a race.
Front suspension system system system
Durable oversized reduced suspension system system system system arms in strong composite nylon. Towards paid down side the initial shaped downstops screws are generate. The paid off shock-mounting pins are guaranteed with a tiny grubscrew from base.
Front part anti-roll club
The ballraced front part anti-roll club system, consist of a spring metal fold cable, which will be guided through diff-cases and runs in ballraced metal adaptors. The cable is from paid off suspension system supply, with a captured adjustable threaded pivotball, for really accurate and low friction procedure and easy tuning.
Shocktower and bodymounts front
4.5mm dense carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of distinction between the total caster and steering airplane. Consequently you'll want less bump steer and a truer steering Ackerman through the complete choice of suspension
Ackerman dishes
Aided by the design of the steering bell cranks when changing the Ackerman you will likely not need to manage your steering tie rods. You merely is only going to need to adjust your end points within radio.
right back suspension system system arms
Durable much longer oversized paid down suspension system system arms in strong composite nylon. In paid down part the special downstops screws are set up. The repaid shock-mounting pins are guaranteed with significantly grubscrew from base. Mud-guards
Superlight polycarbonate mud guards mount towards the latest paid down suspension system fingers, and can keep dirt from your own anti-roll pubs transmission and wheels.
backside uprights installation
Composite uprights with 3 top roll-center functions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings and larger internal individuals who have accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers inside back into protect the cvd system and keep the lubrication in. Flanged and serrated wheel peanuts to ensure that you won't free a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount towards the latest uprights, and may keep consitently the inside your wheel cleaner in the event of dirty conditons.
Back anti-roll club
The ballraced front side anti-roll club system, contain a spring steel fold cable, that will be directed through diff-cases and functions in ballraced steel adaptors. The cable is through the lower suspension system system system supply, with a captured adjustable threaded pivotball, for very accurate and low friction procedure.
Shocktower backside
4.5mm dense carbon shocktower, incorporated towards trunk component for additional stiffness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts right back
Composite back wing, with strong nylon adjustable rear bodymounts on wide body-support bridge situated far sufficient toward back, to steer the systems in simplest method.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly set up making in spring-steel quality. This insures your opportunities to be able to finish 60 minutes about lengthy most significant event, while fighting the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to show to almost any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membrames and big diameter o-rings and bushings to create a supersmooth and leak-proof package. Big diameter pistons happen constantly setup by a nut regarding polished shock-rods tops. Start type springtime retainer to allow dust out simple. The shock-shafts are protected by synthetic boots.
RCM surprise springs
Short sort colorcoded shock springs can be found the initial standard set-up Springs are grinded flat top and base, and examined individually for stress and size.
lightweight geardifferentials
really lightweight gear differentials with actually smooth steel sintered gears, and metal shaft. Perfect sealing instance with exclusive gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector working in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio provides you with amazing acceleration along side low vehicle fat. It's a sure triumph, to help enhance fuel consumption
front part and rear cvd-sets
Both front part and right back captured driveshafts are now actually alongside CVD system. Durable yet light springtime metal etched driveshafts with hard metal pins.
Spring metal transmission elements
the best and back slim but strong springtime metal cardan shafts connect the differentials .
Throttle and brake lever ball cups
Helps provide constant pulling on braking system lever or carburetor in the event that you choose not need the linkage perfectly aligned.
Piston Braking system
Provides more stopping power than you could have ever truly imagined before with a decent deal less servo power. Is completely adjustable with 3 kinds of pistons, solid, O musical organization type, springtime sort. Subsequently you'll adjust your bias or stopping feel towards taste way more practices than previously.
Fiber Glass disk brake system
Fiber Glass braking system disks with oversized front disk.
Brake dinner springs
will keep the laundry distribute ready to accept guarantee un-wanted dragging associated with stopping system discs.
Rushing clutch 4 - shoe
enables you to mix and match footwear materials evenly in pairs. In addition provides more area contact to guarantee the engagement. 4 carbon shaped footwear are standard ( alu ones optional).
Coil exhaust cable and alu mount
Helps assistance with fundamentally causing straight back all over again movement through the pipeline whenever framework flex occurs. Helps in avoiding problems for your exhaust gaskets.
Motor mount
Machined 7075 T6 aluminium engine mount, with component cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, the automobile's gas tank seal is angled to self guide its strategy inside bore pertaining to tank. Simultaneously provides a seal into the chamfered and flat edges from seal, supplying constant engine performance from pit end to a new. Incorporated tank splash guard which assists to prevent gas from splashing on your own ac gear filter in case of an overly excited pit man.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline to have linked to tank, car and pipeline, and includes small composite stoppers to shut 12 months fuelline whenever taking out tank, motor and or pipeline.
Tank with swiveling nipple and drifting clunk.
Utilizing the swiveling nipple it is possible to adjust the angle that you need you fuel line to see. At precisely the same time the drifting clunk assists when you yourself have inverted. The clunk by gravity will fall right back the gasoline, using the flexibility from silicone gas tubing.
Oversized Tank with adjustable amount.
with the insertion of a simple screw and amount reducer you should have ROAR, IFMAR and just about every other organizations appropriate tank amount.
Minimal profile ac filter
Centralized ac filter design to cut back cab width and height. Versatile synthetic boot along with strong nylon example to help the foam elements. Exceptional dense foam airfilter elements to keep your products clean inside.
Body
Serpent cab ahead Avenger human body, with film and masking tape is roofed in kit.
Right back wing
Minimal variation strong back white aero rear wing is roofed for great downforce and right line security.
Oils and oil
The shock-oil, diff oil and lots of oil dilemmas gather the traditional set-up.
