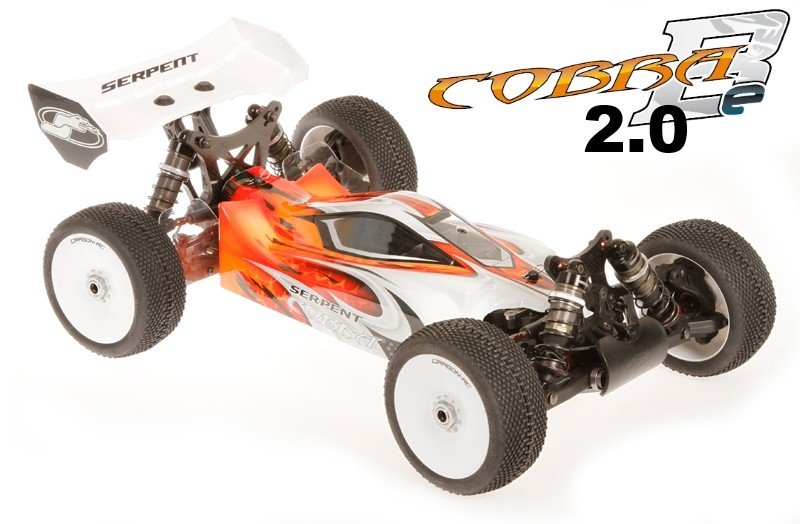

Serpent 1/8 scale buggy in electric variation. Serpent Cobra Buggy E. The Cobra 811e depends upon the identical platform after the gaspowered buggy. State in regards to the art design for the primary component, with advanced level integrated standing servo, receiver, speedo bracket, revolutionary motor-bracket and lay-down Lipo-pack setup with practical lid-system. Exceedingly slim and low design, optimised for fundamental fat safety. Brand-new low body-design and paid off back wing/wingmount.
Specs:
- Name: Serpent Cobra-Be / 811-Be
- course: 1/8 scale 4wd offorad, electric
- type: kit-version, supreme quality competition
- Differential: front side, center and right back
- Shocks: 16mm bigbore
- Included: kit, body, wing, color manual, decals, set-up sheet
- Not included: tyres, tires, radio gear, elecronics
Features:
- enhanced back geometry with wider right back reduced hands, unique uprights and brand new shock place
- Longer back shocks and greater back carbon shocktower to have extra travel
- Shocks relocated towards the trunk, to create access and adjusting easier, as well as make buttocks more stabile and responsive
- straight back wing with integral holders the ballraced straight back anti-roll club
- Lexan mud-guards to include on paid back fingers
- Nylon mud-scrapers mount regarding the back uprights
- enhanced differential gears - as at the moment in get variation
- bigger bearings in steeringblocks and uprights 8X16X5 (2) and 15x21x4 (2)
- Transmission using bigger bearings 8x19x6 and 13x19x4 and brand-new couplers for extra durability
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to produce flex make lighter. Kick-up angle on front part for stabile landings. Countersunk holes. Slots to begin with to start to see the front part and back suspension system system mounts precisely. Angled sides to enhance tightness. Laser engraved Cobra customized logo.
Bumper
Aligned with framework kikc-up for precise landings also to protect front suspension system holde rand anti-roll club.
Chassis stiffners
Composite stiffner front part and straight back, available extra tightness, but still allow some flex as needed.
Central radio / servo mount
Composite lightweight radiobox providing you with good area the steering servo and also the receiver . The entire setup including linkages might removed effectively and fast previously, whenever cleansing the auto, or doing maintenance.
Battery-cases / side-guards
The key eyecatchers will be the excessively low laydown longtudinal place battery-packs at each part of car, being some the side-guards, securely fastened with a flip-lid, for simple and easy fast battery power customizations. The weight reduced in the vehicle and inside the right destination, balanced. The Lipo holders adapt to ROAR appropriate packages / proportions.
Motormount:
The motor is put in to the many optimal spot inside car, maintaining motor-forces and transmission components / alignment in your mind. Simply one-screw must secure the BL motor, toward nicely designed durable machined aluminium motormount. Area for extra motor-cooling available as required.
the area the engine enables a maximum motor-length of 70mm, which covers best machines ( excluding the truggy / monstertruck devices).
Suspension brackets
incredibly machined 7075 T6 suspension system system brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks along with 10 dgr C-hubs for exact steering. Spring metal wheel-axles with big size bearings and larger inner with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make sure you certainly will maybe not free a wheel nut in a competition.
Front suspension system system system
Durable oversized paid off suspension hands in strong composite nylon. On reduced component the unique shaped downstops screws are installed. The reduced shock-mounting pins are guaranteed in full with a little grubscrew through base.
front side anti-roll club
The ballraced front part anti-roll club system, contain a springtime steel fold cable, which may be directed through diff-cases and operates in ballraced steel adaptors. The cable could be because of this repaid suspension system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction operation and simple tuning.
Shocktower and bodymounts front component
4.5mm dense carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center functions. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to scale back the angle of distinction involving the total caster and steering airplane. For that reason you ought to have less bump steer and a truer steering Ackerman through the whole selection of suspension system system
Ackermann plates
combined with design the steering bell cranks whenever changing the Ackermann you'll not must adjust your steering tie rods. You only will simply must adjust your end points on your own radio..
Rear suspension system arms
Durable longer oversized paid down suspension system system fingers in strong composite nylon. On paid off side the unique downstops screws are mounted. The reduced shock-mounting pins are fully guaranteed with just a little grubscrew through base.
Mud-guards
Superlight polycarbonate mud guards mount on completely new paid down suspension system arms, and can keep dirt from your anti-roll pubs transmission and tires.
back uprights construction
Composite uprights with 3 top roll-center functions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings and larger internal people with precision threaded aluminum wheel-hubs with offset . Rubber dustcovers inside rear to shield the cvd system and keep the lubrication in. Flanged and serrated wheel peanuts to make certain that you will not loose a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount towards brand-new uprights, and can keep consitently the in your wheel cleaner in case of dirty conditons. Proceeded greater size, therefore could need to grind to fit your model of wheels.
right back anti-roll club
The ballraced front side component anti-roll club system, have actually a spring metal fold cable, and this can be directed through straight back wingmount and operates in ballraced metal adaptors. The cable is through paid down suspension system system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.
Shocktower back
4.5mm dense carbon shocktower, incorporated into the trunk area for extra tightness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite back wing, with strong nylon adjustable back bodymounts on wide body-support bridge situated far adequate toward back, to guide the figures in easiest way.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted in place making in spring-steel quality. This insures your possibilities to execute one hour very long biggest occasion, while battling the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberal to consider any angle without binding.
Shockabsorbers RCM big-bore 16mm
Rough Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use large diameter membrames and large diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons occur setup by a nut in polished shock-rods tops. Start kind springtime retainer to allow dirt out effortless. The shock-shafts are protected by synthetic footwear.
RCM surprise springs
Colorcoded contemporary surprise springs receive the first standard set-up and all sorts of springs are grinded flat top and base, and checked separately for anxiety and size and matched.
Compact geardifferentials
actually compact gear differentials with extremely smooth metal sintered gears, and metal shaft. Perfect sealing example with unique gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings The Cobra-E makes use of a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides you with amazing acceleration along side low car fat.
Front and straight back cvd-sets
Both front part and right back captured driveshafts are now actually coupled with CVD system. Durable yet light springtime steel etched driveshafts with hard steel pins.
Spring metal transmission elements
the key and back slim but strong spring steel cardan shafts link the differentials .
Body
Serpent superlow Cobra E buggy body with film and masking tape is roofed in to the kit.
Right back wing:
Minimal variation strong right back white aero rear wing is roofed for great downforce and right line security.
Oils and oil
The shock-oil, diff oil and lots of oil concerns meet up with the conventional set-up.
