Top competition rushing buggy, for high-end competition usage. 4wd, 3 tiny diffs, 4-shoe competition clutch, 16mm bigbore shocks, light alu shocktowers, shaped alu suspension system system system system holders, unique angled front component steering, low design braking system, excellent springtime steel and very durable anodised alu elements.
Specs:

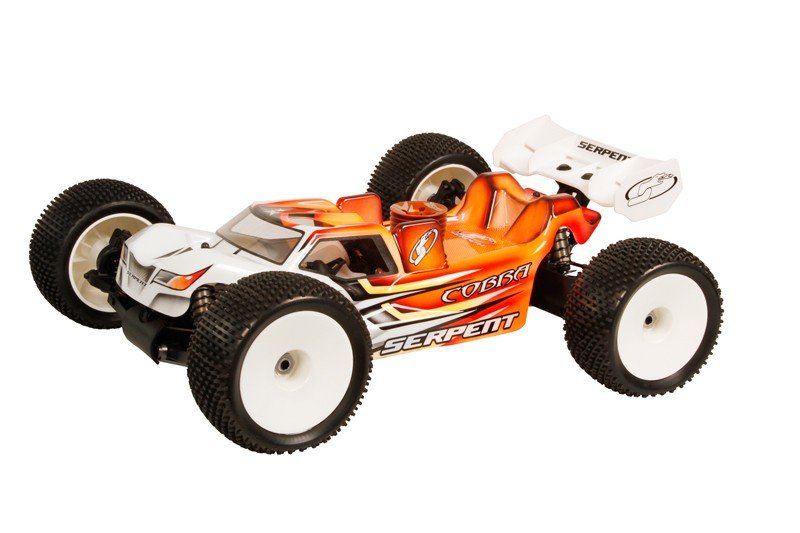

- name: Serpent Cobra-T Truggy
- course: 1/8 scale 4wd truggy
- type: kit-version, first class competition
- weight: 3.600 grms ( competition prepared, is determined by radio-gear and motor)
- clutch: 4-shoe centrifugal, carbon footwear
- differential: lightweight, small geardiffs , front side, primary and rear
- brake: piston type with glassfibre disks
- shocks: 16mm big bore
- fueltank: 150ccm, with vital bronze filter
- gear-ratio: 4:3:1
- included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- perhaps perhaps not included: Radio-gear, tyres-wheels, motor, pipeline.
Features:
Framework
extremely slim 3mm 7075T6 aluminium framework, with plenty of machining in top face making it lighter in strategic areas plus get a grip on flex. Kick-up front side for appropriate landings. Angled component to boost cornering approval, and safeguarded and simple mounting component guards with 5 screws. Countersunk holes, chamfered sleeve for flywheel, pouches to position the suspension system system brackets. Grey anodized with Cobra Logo engraved.
Generally the Truggy is made to keep the fat actually main after which on centerline you might, to generate great
Central diff / stopping system / spur-gear guard
Optimised central gear-diff with 50T super-hard spur-gear . Really small, compact design to cut back rotating mass on optimum.
Spur Gear Guard
helps while we are steering clear of the spur gear from slinging debris all over the inside car and especially inside ac filter. Functions for rain and water puddles.
Piston Braking system
Provides more stopping power than you could have ever really imagined before with a lot less servo energy. Can also be totally adjustable with 3 types of pistons
solid, O-ring sort, springtime type. Afterwards you can adjust your bias or stopping feel towards style far more techniques than previously.
Fiber Glass stopping system disks with oversized fronts. Brake supper springs are able to keep the bathroom distribute prepared to accept guarantee perhaps not un-wanted dragging towards stopping system discs.
Transmission shafts
Durable but light and slim Serpent springtime metal, laser etched shafts.
Front and right back diff
Optimised gear-diff with 50T superhard spur-gears . Little, compact design to attenuate rotating mass on optimum. Exact same variation front part and rear. Diff coupler in spring steel for 3 bearings
right back shocktower
Light, strong and durable machined 5mm carbon fibre devices with 5 functions for shockangle.
Sleek low profile air-con filter
Centralized ac filter design to attenuate cab width and height. Versatile synthetic boot along side strong nylon situation to guide the foam elements. Exceptional dense foam airfilter elements to put up your devices clean inside
Rubber footwear for shafts
Keeps the dust out and lubrication in. Reduces usage.
Suspension brackets right back
Well machined 7075 T6 alumnium with eccentric inserts to boost set-up.
straight back wing mount
The composite back wing mount, permits to boost the angle associated with straight back wing.
Right back wing
Two duration high down force wing, has two degrees of angle, which also includes 2 fins. Helps improve down force and right line capability
Bodymounts
Nylon bodymounts with wider sitting the human body, firmly fastened towards shocktowers.
Super minimal profile human anatomy
Improves look plus keeps the profile minimum.
Decals
Serpent and Cobra logo decals in black-white publishing
Broadcast package
Composite one piece radiobox to securely install servo s, battery power and receiver. Immediate access with screw on tops and good switch-cover. Broadcast linkages operate extremely right and tend to be also an easy task to install and set. Effortless system to help keep settings whenever eliminating the linkage arranged.
Anti-roll club
Anti-roll bar / anti-roll club linkage with pivotball
The anti-roll pubs front and right back are formulated out of quality unique springtime steel, and generally usually are furthermore captured with regards to the diff-cased in ballbearing for perfect guidance and control.
Front suspension system system
Extended and durable composite reduced wishbones, along side top spring-steel trackrods. 2 paid shock-mount functions. Downstops may be used as required. Pivotball type anti-roll club rods.
Front steering / servo saver / angled
Revolutionary angled front part steering arranged to reduce the angle of massive distinction between your total caster and steering airplane. Because of this you will have less bump steer and a truer steering Ackerman through the whole array of suspension system.
Adjustable springtime filled servo-saver system with interchangeable Ackermann dishes. Along with the design associated with steering bell cranks whenever changing the Ackerman you will not need to adjust your steering tie rods. You merely only will must take control of one's end points inside radio.. very simple to get your self in and set-up.
The Inboard Bell crank keeps the lever and linkage within the car. It will help with preventing dilemmas the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking impact created by the steering knuckle offset. It provides a much more direct fallen while maintaining the cars chassis more level while switching.
Leading roll center are changed quickly by going the steering knuckle shims due to their appropriate areas. Topped of with an excellent 5mm carbon fiber top-plate.
Front steering-block / c-hubs
really durable front part steeringblock / C-hub construction .
Drive-shafts
Long and lightweight springtime metal products with pressed in steel pins, laser-engraved. Same size front component and right back.
Wheel-axles / wheel-nut
Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts ( flanged and serrated) to hold the massive truggy wheels/tyres on the right track.
Composite framework braces
Allows the framework to flex which assists improve bump management. Front part and right back.
Front bumper
well curved front part bumper, exactly like about the Cobra buggy, to guard the most effective anti-roll club, suspension system system brackets, and moves inline with kick-up framework front side component for safe landings.
Front shocktower
Light, strong and durable machined 5mm carbon fibre products with 5 jobs for shockangle.
Suspension brackets alu
The hinge-pins / hingepin balls are captured in accuracy machined, unique shaped 7075 T6 aluminium, grey anodized with indicated kind. They capture the nylon roll-center inserts.
Captured universal bones
the idea the next finished up being effortless. Guarantees you should finish a race without loosing a pin or set screw. All parts, axles and drive train elements have actually actually capture pins
part guards
Durable shaped composite component guards that carry on as a result of the form of the framework, and mount with 5 screws each component. Front and sides enough to help keep the dirt down.
Shock-set front part and back
16mm big bore shocks, with difficult anodized precision threaded shock-bodies. Shockboots in silicone synthetic to put up the dirt away . Chromed shock-shafts for supersmooth shockaction . The larger o rings offer less fundamental anxiety and a better seal without dragging regarding shock shaft.
backside uprights
Durable composite straight back uprights with 3 camber functions
Mudguards
In moist or damp dirt circumstances these mud guards lessen and dust staying with a large part drive shafts and shocks. Follow distinct wishbone entirely.
motor mounts
Wide aluminium engine mounts with component cooling-fins. Fits any brand of motor.
Pipe-mount / cable
Alumnium variation and coil spring-steel wire, to help keep pipeline able and limits seal ?breakage.
Rushing clutch 4 - footwear
lets you mix and match footwear materials evenly in pairs. Furthermore provides more area contact to be sure the engagement. 4 carbon shaped footwear are standard ( alu people optional).
Fueltank
Strong nylon 150cc fueltank with clunk-style filter.
Splash basin on tank top, which assists in reducing gas all around the framework in the event of a messy pit stop. The basin gathers the splashed gas and guides it correctly from the base through the framework. The fuel tank seal is angled to self guide its substitute for the bore concerning the tank. In addition provides a seal regarding chamfered and flat sides associated with seal, supplying constant engine performance from someone pit stop to a new location.
Tank with swiveling nipple and drifting clunk.
Using the swiveling nipple you'll adjust the angle through which you will need you fuel line to go to. At the same time the drifting clunk assists once you have unsightly. The clunk by gravity will fall in the gas, utilizing the freedom associated with the silicone gas tubing.Oversized Tank with adjustable quantity. Utilizing the insertion of a simple screw and amount reducer you will have ROAR, IFMAR and simply about almost every other businesses appropriate tank volumeSmall nylon stoppers the fuel-line are added to the kit to stop gas spilling.
Ball bearings
Complete musical company of high speed, unique lubricated ball bearings.
sebum / oil
Kit includes quality silicone oils the diffs and shocks and a container of oil.
