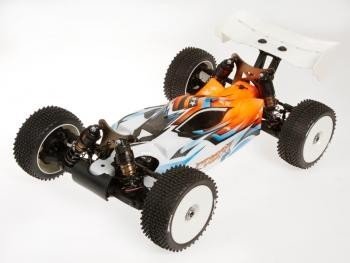

Cobra 811 Buggy Sport 1/8 ElectricPowered the overall game type of the effective top end Serpent 1/8 Cobra 811 E-Buggy. 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, sideguards, batteryboxes, back wing. Totally upgradable with elements and choices from upper end race-version. This super durable Buggy framework permits a great entry inside the competition scene, at a lower price, and may provide finish your activities !
Specs:
- Name: Serpent 811 Cobra Buggy-e Sport
- Class: 1/8 scale 4wd buggy, electric powered
- Type: kit-version, competition-car
- Wheelbase: 330mm
- Width: 305mm
- Body weight: 3,300 grms ( competition ready, is based on radio-gear and motor)
- Differential: lightweight, tiny geardiffs , front, primary and rear
- Shocks: 16mm big bore
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Perhaps maybe not included: Radio-gear, tyres-wheels, engine, esc, batteries.
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to generate flex and or make lighter. Kick-up angle on front part for easier landings. Countersunk holes. Slots to master the best and rear suspension system system system mounts correctly. Angled sides to enhance tightness. Laser engraved Cobra logo design.
Bumper
big curved nylon bumper that withstands impact after big jumps, and makes landing more suttle. Safeguards additionally leading swaybar installation and front suspension system system system system brackets.
Chassis stiffners
Composite stiffner front part and rear, to offer extra tightness, though allow some flex as needed.
Servo fingers and linkages
The servo fingers have in fact in reality in fact a splined insert to have the right fit per manufacturer. The linkages runs actually neat and tight and they are available to change settings.
Suspension brackets
Durable nylon suspension system system brackets. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks along with 10 deg C-hubs for precise steering. Metal wheel-axles with big size bearings and bigger inside with precision threaded aluminum wheel-hubs . Flanged and serrated wheel peanuts to make certain that you wont loose a wheel nut in a battle.
Front suspension system system
Durable oversized repaid suspension system system system hands in strong composite nylon. Within the paid off part downstops setscrews are installed. The repaid shock-mounting pins are guaranteed with particularly grubscrew through the base.
Front part anti-roll club
The ballraced front part component anti-roll club system, contain a springtime metal fold cable, which directed through diff-cases and run in ballraced steel adaptors. The cable is by using this compensated suspension system supply, with a captured adjustable threaded pivotball, for excessively accurate and low friction procedure.
Shocktower and bodymounts front
4.0mm dense anodized aluminium shocktower with 3 top placement holes the shocks and and 5 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of distinction involving the complete total caster and steering airplane. Consequently you'll have less bump steer and a truer steering Ackermann through the entire array of suspension system system
Ackermann meals
utilizing the design the steering bell cranks whenever changing the Ackermann you may not wish to modify your steering tie rods. You only only will have to adjust your end points in your radio.
Back suspension system fingers
Durable oversized paid down suspension system hands in strong composite nylon. About the lower component the downstops set-screws are mounted. The paid off shock-mounting pins are guaranteed in full with only only a little grubscrew through base.
Back uprights construction
Composite uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Metal wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) with precision threaded aluminium wheel-hubs .Flanged and serrated wheel peanuts to make sure that you won't loose a wheel nut in a battle.
Back anti-roll club
The ballraced front component anti-roll club system, contain a springtime metal bend cable, that is led through diff-cases and runs in ballraced metal adaptors. The cable is through lower suspension system system system supply, with a captured adjustable threaded pivotball, for in reality exact and low friction procedure.
Shocktower straight back
4.0mm dense anodized aluminium shocktower, built-into a big part component for additional tightness, with 3 top placement holes the shocks and 5 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite low straight back wing, with strong nylon adjustable backside bodymounts on wide body-support connection placed far enough towards rear, to steer the figures in simplest method.
Captured pivot pins and balls and bolted hinge pins
All metal hinge pins are either captured or bolted arranged. This insures your opportunities to complete one hour approximately roughly extended primary occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to exhibit to just about any angle without binding.
Shockabsorbers big-bore 16mm
Coated aluminium shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops . Pre-load adjusters with nylon spacers. Shocks use big diameter membranes and big diameter o-rings and bushings generate a supersmooth and leak-proof package. Big diameter pistons happen make by a nut within the polished shock-rods tops. Begin kind springtime retainer to allow dust out effortless.
RCM surprise springs
quick type colorcoded surprise springs are given the initial standard set-up Springs are grinded flat top and base, and examined separately for anxiety and size.
Lightweight gear differentials
Really compact gear differentials with acutely smooth metal sintered gears, and metal shaft. Perfect sealing example with original gasket and o-rings. Really durable outdrive cups in steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings 8x19x6 and 13x19x4
Front cvd-set, right back dogbone design
Both front metal riveshafts are increasingly used in combination with CVD system. Durable steel driveshafts with difficult steel pins. Inside the back a dogbone type system is used.
Strong metal transmission elements
Leading and right back metal cardan shafts link the differentials utilizing the gearbox part.
Servo / speedo mount
This area lies inside front for optimal fat blood circulation. The servo is in standing destination with an incredibly brief and effective steering supply. The positioning the speedo is adequate to suit mostly used . The receiver-box is ahead for comfortable access and zero fat.
Engine install
The engine is put into the numerous optimal devote the automobile, keeping motor-forces and transmission elements / alignment in your thoughts. Just one-screw is necessary to secure the BL engine, within the nicely created durable machined aluminium motormount. Region for extra motor-cooling available as needed.
The region the engine permits a maximum motor-length of 68mm, which covers best engines.
Battery-cases / side-guards
the key eyecatchers is the exceedingly low laydown longitudinal place battery-packs at each and each and every component regarding the automobile, being element of the side-guards, securely fastened with a flip-lid, for simple and easy fast battery power alterations. The extra weight lower in the car plus in top position, well-balanced. The Lipo holders adhere to ROAR appropriate packages / dimensions.
Lightweight Differentials and center spur.
Severely lightweight and light gear-diffs. By reducing the rotating mass, you'll be able to further boost the range from component acceleration.
The Cobra-E employs a 13T / 44T combination gearing.
46T core diff gear.
Body
Sleek, low design polycarbonate buggy human anatomy, with lines provided and masking sheet too.
Right back wing
big low right back wing in durable nylon with good downforce and unique shaped for most easily of use airflow over and through wing.
Sebum and oil
The shock-oil, diff oil and lots of oil issues meet up the normal set-up.
