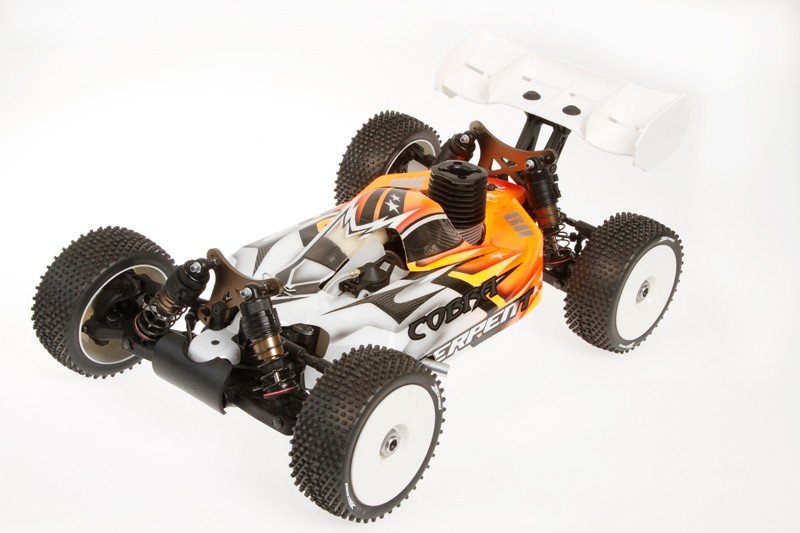

Cobra 811 Buggy Sport 1/8 GasPowered the game form of the successfull top end Serpent 1/8 Cobra 811 Buggy. 4-wheel-drive, 3 geardiffs, raceclutch, 16mm bigbore shocks, aluminium shocktowers and framework, simple radiobox, sideguards, straight back wing. Completely upgradable with elements and alternatives from high-end race-version. This super durable Buggy framework permits a great entry into the battle scene, at a decreased expense, and may also prompt you to finish your activities !
Specs:
- program: 1/8 scale 4wd buggy, gaspowered
- type: kit-version, competition-car
- wheelbase: 330mm
- width: 305mm
- fat: 3.500 grms ( competition prepared, is based on radio-gear and engine)
- clutch: 3-shoe centrifugal, carbon footwear
- differential: lightweight, tiny geardiffs , front, primary and back
- braking system: piston type with glassfibre disks
- shocks: 16mm big bore
- fueltank: 125ccm, with integrated bronze filter
- gear-ratio: 4:3:1
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to produce flex and or make lighter. Kick-up angle on front part for easier landings. Countersunk holes. Slots to find the leading and back suspension system system system system mounts correctly. Angled edges to enhance tightness. Start pouches to get involved with flywheel . Laser etched Cobra company logo.
Bumper
Big curved nylon bumper that withstands impact after big jumps, and makes landing more suttle. Safeguards additionally the key swaybar setup and front suspension system system brackets.
Chassis stiffners
Composite stiffner front part and straight back, to supply extra tightness, however enable some flex as needed.
Central diskbrake system
suprisingly low and centrally place stopping system system for low centre of gravity with glassfibre braking system disks, coupled with dense metal meals that'll not fold under great pressure.
Radio-box
Composite radiobox that provides area the lay-down steering servo plus the upright put brake-throttle servo. Adequate spacers have for proper fitting regarding the servo?s. The receiver and battery is placed properly in big limitation. The transponder is initiated towards the main component, between servo and receiverbox. The whole setup including linkages are eliminated effortlessly and fast on top of that, whenever cleansing the car, or doing upkeep.
Servo hands and linkages
The servo hands have a splined insert to really have the right fit per brand. The linkages runs in fact neat and tight and therefore are readily available to modify settings.
Suspension brackets
Durable nylon suspension system brackets. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks and 10 dgr C-hubs for accurate steering. Metal wheel-axles with big size bearings and larger inside with accuracy threaded aluminum wheel-hubs . Flanged and serrated wheel peanuts to make sure that you simply wont loose a wheel nut in a competition.
Front suspension system system
Durable oversized paid suspension fingers in strong composite nylon. On paid down sidel downstops setscrews are set up. The reduced shock-mounting pins are guaranteed with somewhat grubscrew from bottom.
Front anti-roll club
The ballraced front side anti-roll club system, have a spring steel fold cable, that'll be led through diff-cases and run in ballraced metal adaptors. The cable is through paid off suspension system system supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction procedure.
Shocktower and bodymounts front
4.0mm thick anodized aluminum shocktower with 3 top placement holes the shocks and and 5 holes for roll-center roles. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of difference in regards to the total caster and steering airplane. Therefore you must have less bump steer and a truer steering Ackerman through the whole collection of suspension system
Ackerman dishes
along with the design the steering bell cranks whenever changing the Ackerman you will not need to change your steering tie rods. You merely just will must adjust your end points on your radio.
Straight back suspension system system fingers
Durable oversized reduced suspension system system system arms in strong composite nylon. Regarding paid off component the downstops set-screws are setup. The lower shock-mounting pins are guaranteed with a tiny grubscrew through base.
Straight back uprights construction
Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Metal wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) with precision threaded aluminum wheel-hubs with XX offset .Flanged and serrated wheel peanuts to ensure that you won't free a wheel nut in a competition.
Backside anti-roll club
The ballraced front side part anti-roll club system, include a springtime steel fold cable, which can be directed through diff-cases and runs in ballraced steel adaptors. The cable is through the paid off suspension supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.
Shocktower back
4.0mm dense anodized aluminum shocktower, incorporated into a large part component for additional tightness, with 3 top positioning holes the shocks and 5 holes for roll-center jobs.
Wingmount and bodymounts back
Composite back wing, with strong nylon adjustable back bodymounts on wide body-support connection situated far enough on back, to guide the numbers in simplest method.
Captured pivot pins and balls and bolted hinge pins
All metal hinge pins are either captured or bolted constantly in place. This insures your possibilities to complete 1 hour long primary occasion, while fighting the lead. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to go to virtually any angle without binding.
Shockabsorbers big-bore 16mm
Ccoated aluminum shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops . Pre-load adjusters with nylon spacers. Shocks utilize big diameter membrames and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons happen constantly set up by a nut in the polished shock-rods tops. Start kind springtime retainer allowing dirt out effortless.
RCM shock springs
fast kind colorcoded shock springs are provided 1st standard set-up Springs are grinded flat top and base, and examined individually for anxiety and size.
Compact geardifferentials
actually compact gear differentials with actually smooth steel sintered gears, and steel shaft. Perfect sealing situation with unique gasket and o-rings. Exceedingly durable outdrive cups in steel. Hardened spring-steel diff-coupler 10T with connector working in 2 oversized bearings 8x19x6 and 13x19x4
Front cvd-set, straight back dogbone design
Both front steel riveshafts are increasingly being with CVD system. Durable metal driveshafts with difficult metal pins. Inside rear a dogbone kind system is used.
Strong metal transmission elements
the leading and straight back steel cardan shafts link the differentials because of the gearbox component.
Motor mount
Machined aluminium engine mounts for a balanced engine mounting .
Coil exhaust cable and alu mount
The tuned pipeline is firmly fastened along with the coil springtime and alumium owner.
Helps help in fundamentally causing straight back motion regarding the pipeline whenever framework flex does occur. Lets you avoid problems for your exhaust gaskets.
3-shoe clutch
Comprehensive carbon 3 footwear clutch-set with medium kind springs. Easy to build with light and durable anodized aluminum flywheel.
125cc fueltank
Composite nyon fuel-tank with supersealing springloaded shock-cap, bronze sintered clunk type filter and splash-side guard. Component features slots to set up the supplied tube-guiders. Tank mounts to framework in much longer composite articles with included plastic buffers allowing some motion and reduce fuel-foaming. The clunk system allows the engine to keep running in the event that car is up-side-down.
Low profile air conditioner filter
Centralized ac filter design to attenuate cab width and height. Versatile synthetic boot and strong nylon instance to simply help the foam elements. Excellent dense foam airfilter elements to keep your devices clean inside.
Body
Sleek, low design polycarbonate buggy human anatomy, with lines fond of cut out for motor and tank.
Right back wing
big straight back wing in durable nylon with good downforce and speial shaped for all commonly useful airflow over and through wing.
Sebum and oil
The shock-oil, diff oil and several oil comes to experience the typical set-up.
