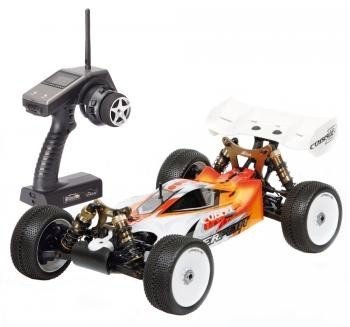

Cobra E-Buggy willing to Race 1/8 ElectricPowered The RTR form of the effective high-end Serpent 1/8 Cobra Buggy. Detailed with DragonRC 2.4 radio, metal-gear servo, brushless engine, waterproof speedo, prepainted-precut human anatomy and premounted offroad tyres 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and chassis, effortless radiobox, sideguards, low batteryboxes, right back wing. Fully upgradable with components and alternatives from higher end race-version. This super durable Buggy framework allows good entry in rushing scene, cheaper, and will allow you to be finish your occasions !
Specs:
- Name: Serpent 811 Cobra Buggy-e prepared to Race
- Class: 1/8 scale 4wd buggy, electric powered
- Type: RTR -version, club-racer
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.500 grams (competition prepared)
- Gear-ratio: 4:03:01
- Transmitter: DragonRC 2.4 GHz with small receiver
- Speedcontroller: DragonRC electronic speedo 120A waterproof
- Motor: DragonRC 1650kv brushless, sensorless motor
- Tyres: DragonRC premounted buggy competition tyres
- Body: Serpent prepainted and pre-cut E-Cobra body
- Drivetrain: front component cvd, back dogbone, primary cardan shafts
- Geardiff: 3 lightweight geardiffs
- Shocks: 16mm big bore type
- Included: RTR Kit, radio, manuals and decals
- Maybe not included: broadcast batteries, automobile batteries, charger
Features:
- Ace prepared upper end electric buggy
- professional pre-assembled and pre-set
- 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined aluminium motormount, superlow longtudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll pubs FR and RR, 7075 T6 alu shocktower FR and RR, durable suspension system and transmission elements, captured suspension system system pins, the works !!
- Dragon-RC pistol kind transmitter 2.4 GHz with big LCD display
- Dragon-RC 120A waterproof speedcontroller
- Dragon-RC powerfull 1650kv brushless sensorless motor
- Dragon-RC 10.5kg strong servo with metal gears
- Dragon-RC high hold premounted racetyres and tires
- Prepainted and precut ultra low Cobra bodyshell and big nylon back aero-wing
- color individual manual and decalset included
Transmitter and receiver
The DragonRC pistol type transmitter includes a fantastic big LCD display screen, making is easy to choose through easy menus. The tiny and light receiver is ready within the radiobox from the car.
Speed-controller
The electronic speedcontroller is a totally Waterproof 120A item from DragonRC with a little impact which fits the Cobra like a glove. The current contemporary design is incredibly little and appealing searching. Topquality soft silicone covered cables.
Brushless motor
The DragonRC brushless sensorless engine is a wonderful 1650kv product which provides many torque and amazing topspeed. , and it's really anodised in same bronze color considering that another alu aspects of the car.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front component for stable landings. Countersunk holes. Slots to locate leading and back suspension system mounts precisely. Angled edges to improve tightness.
Bumper
Aligned with framework kick-up for exact landings and to protect front suspension system system system owner and anti-roll club.
Chassis stiffeners
Composite stiffener front part and right back, to provide additional tightness, though enable some flex as required.
Central radio / servo mount
Composite compact radiobox that delivers good area the steering servo and receiver.
Battery-cases / side-guards
the key eyecatchers would be the exceptionally low laydown longitudinal destination battery-packs at each and every and every side associated with automobile, being the main side-guards, firmly fastened with a fliptop-lid, for quick and easy battery improvements. The extra fat reduced the car and generally in most useful destination, sensible. The Lipo holders conform to ROAR appropriate packages / proportions.
Motormount:
The engine is positioned to your many optimal position inside vehicle, maintaining motor-forces and transmission elements / positioning in your thoughts. Only one-screw is required to secure the BL motor, in the nicely designed durable machined aluminium motormount. Region for additional motor-cooling available as required.
the space the engine allows a maximum motor-length of 70mm, which covers numerous preferred engines ( excluding the truggy / monstertruck machines).
Steeringblocks arranged
Composite steeringblocks alongside 10 deg C-hubs for precise steering. Spring steel wheel-axles with big size bearings and bigger interior with precision threaded aluminium wheel-hubs with offset . Flanged and serrated wheel peanuts to ensure that you will perhaps not free a wheel nut in a race.
Front suspension system system system
Durable oversized paid down suspension fingers in strong composite nylon. Regarding the paid down side the unique shaped downstops screws are placed up. The paid off shock-mounting pins are guaranteed in full with just some grubscrew through base.
Front part anti-roll club
The ballraced front part anti-roll club system, contain a springtime metal fold cable, that's led through diff-cases and runs in ballraced steel adaptors. The cable is because of this paid down suspension system system system system supply, with a captured adjustable threaded pivotball, for exceptionally exact and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.0mm thick aluminium anodised shocktower with 2 top positioning holes the shocks and and 3 holes for roll-center functions. 1 found adjustable bodymount , and 2 forward mounted adjustable bodymounts.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of difference between the quantity total caster and steering airplane. Consequently you have to have less bump steer and a truer steering Ackerman through the complete choice of suspension system system system system
Ackermann meal
utilising the design with this specific steering bell cranks whenever changing the Ackermann you will not have to adjust your steering tie rods. You just will simply should adjust your end points within radio..
straight back yet again suspension system system system system fingers
Durable longer oversized paid off suspension system system hands in strong composite nylon. Inside paid off part the initial downstops screws are create. The lower shock-mounting pins are fully guaranteed with a small grubscrew from base.
Mud-guards
Optional is the composite mud guards, which will install towards the lower suspension system arms, and can keep dust from your own anti-roll pubs transmission and tires.
straight back uprights put up
Composite uprights with 3 top roll-center functions. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Tricky steel wheel-axles with big size bearings and larger inside people who have accuracy threaded aluminium wheel-hubs with offset. Flanged and serrated wheel peanuts to ensure which you will not loose a wheel nut in a race.
Back anti-roll club
The ballraced front side anti-roll bar system, consist of a springtime metal fold cable, which led through back wingmount and operates in ballraced steel adaptors. The cable is with this paid off suspension system system supply, with a captured adjustable threaded pivotball, for in fact accurate and low friction procedure.
Shocktower rear
4.5mm thick aluminium shocktower, incorporated to the rear component for extra tightness, with 2 top positioning holes the shocks and 3 holes for roll-center functions.
Wingmount and bodymounts backside
Composite straight back low aero wing, with strong nylon mounts, with angle modification. Principal right back bodymount.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted generate producing in spring-steel quality. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to exhibit to any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for trip height environment. Shocks use big diameter membranes and big diameter o-rings and bushings to produce a supersmooth and leak-proof package. Big diameter pistons happen arranged by a nut in polished shock-rods tops. Start type springtime retainer to let dust out effortless.
RCM shock springs
Colorcoded contemporary shock springs are provided the initial standard set-up and all sorts of springs are grinded flat top and base, and examined independently for anxiety and size and they're matched.
Compact geardifferentials
really compact gear differentials with extremely smooth steel sintered gears, and metal shaft. Perfect sealing example with exclusive gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector involved with 2 oversized bearings The Cobra-E utilizes a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides amazing acceleration due to the low vehicle fat.
Front and back drive
the greatest has captured driveshafts using a CVD system. A large component has durable black colored colored metal driveshafts with hard metal pins.
difficult black colored metal transmission components
the greatest and back strong difficult black colored colored steel cardan shafts link the differentials .
Body
Serpent superlow Cobra E buggy human anatomy, entirely pre-painted actually appealing design and pre-cut too. The paid down body has excellent control, furthermore superb in jumps.
Right back wing:
Minimal variation strong back white aero straight back wing is roofed for great downforce and right line protection.
Tyres / wheels
The Cobra is equipped with premounted DragonRC buggy rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with moulded cell-foam inserts. A super-package for excellent hold in the most typical areas.
Oils and oil
Top-quality silicone shock-oil, silicone diff oil plus some oil may be accustomed meet with the standard set-up.
