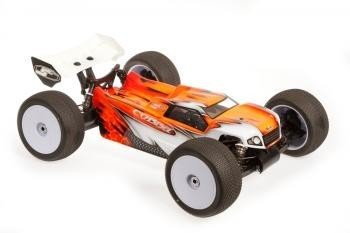

Serpent Cobra E-truggy in 1/8 scale 4wd. Function created electric race-truggy, totally battle spec with carbon shocktowers, big bore shocks, durable transmission, 3 gear-diffs, ultra low longtudinal place batteries, front installed engine, front installed speedo , superb E-truggy Cobra body.
Demands:
- Name: Serpent Cobra-T E-Truggy
- Class: 1/8 scale 4wd E-truggy
- Type: kit-version, higher end competition
- body fat: 3.800 grms ( battle ready, varies based on gear utilized )
- Differential: lightweight, tiny geardiffs , front, primary and rear
- Shocks: 16mm big bore
- Gear-ratio: 4:3:1
- Wheels: not included; automobile created for 0-offset tires
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Not included: Radio-gear, tyres-wheels, motor, speedo, batteries.
Features:
Framework
really slim 3mm 7075T6 aluminium chassis, with machining towards top face to make it lighter in strategic places along side get a handle on flex. Kick-up front part for appropriate landings. Angled element of boost cornering approval, and safeguarded and easy mounting component guards with 5 screws. Countersunk holes, pouches to position the suspension system brackets. Grey anodized with Cobra Logo engraved. Usually the Truggy is built to keep consitently the fat really main and nearby the centerline as possible, create outstanding general safety.
Part guards / battery power trays
Durable shaped composite part guards / battery pack trays that proceed utilizing the design of the framework, and mount with 5 screws each component. Front and sides adequate to keep the dirt out. The guards/trays create countless protection. The batteries are set up in longitudinal fashion, maintaining the excess fat low inside automobile. The battery pack trays work hinged covers, to help keep the batteries well set up, but are easy to start for access.
Motormount:
The engine lies inside many optimal spot inside automobile, keeping motor-forces and transmission elements / placement in your thoughts. Just one-screw must secure the BL motor, into the nicely produced durable machined aluminium motormount. Spot for additional motor-cooling available as required. The area the motor enables mounting all popular buggy and (monster)truggy machines.
Composite chassis braces
Allows the chassis to flex which assists enhance bump maneuvering. Front and backside.
Front bumper
Well curved front component bumper, the same as on Cobra buggy, to shield top anti-roll club, suspension system system brackets, and moves inline with kick-up chassis front side for safe landings.
Front suspension system system
Extended and durable composite reduced wishbones, coupled with top spring-steel trackrods. 2 paid off shock-mount functions. Downstops may be used as needed. Pivotball sort anti-roll club rods.
Front steering / servo saver / angled
Revolutionary angled front steering construction to cut back the angle of huge difference involving the total caster and steering airplane. Therefore you should have less bump steer and a truer steering Ackermann through the entire variety of suspension system system system.
Adjustable springtime stuffed servo-saver system with interchangeable Ackermann meals. Utilising the design related to steering bell cranks whenever changing the Ackermann you will not need certainly to adjust your steering tie rods. You simply just will need to adjust your end points on your own radio.. quite simple for utilization of and set-up.
The Inboard Bell crank keeps the lever and linkage inside car. It'll help with preventing issues for the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking effect made by your steering knuckle offset. It offers a primary fallen while maintaining the cars framework more degree while switching.
The leading roll center are changed quickly by moving the steering knuckle shims with their appropriate places.
Topped of with a robust 5mm carbon fibre top-plate.
Front steering-block / c-hubs
in reality durable front component steeringblock / C-hub installation .
Drive-shafts
Long and lightweight springtime metal services and products with pressed in metal pins, laser-engraved. Identical size front and back.
Wheel-axles / wheel-nut
Serpent springtime steel threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts ( flanged and serrated) to keep the huge truggy wheels/tyres on program.
Captured universal bones
the style below ended up being effortless. Guarantees you'll finish a race without loosing a pin or set screw. All elements, axles and drive train elements have capture pins
Front shocktower
Light, strong and durable machined 5mm carbon fibre products with 5 roles for shockangle.
Shock-set front component and back
16mm big bore shocks, with hard anodized accuracy threaded shock-bodies. Shockboots in silicone synthetic to help keep the dirt straight down . Chromed shock-shafts for supersmooth shockaction . The greater high priced o bands provide less basic anxiety and a larger seal without dragging in regards to the surprise shaft.
Suspension brackets alu
The hinge-pins / hingepin balls are captured in accuracy machined, unique shaped 7075 T6 aluminium, grey anodized with indicated type. They capture the nylon roll-center inserts.
Anti-roll club / anti-roll bar linkage with pivotball
The anti-roll pubs front and straight back are manufactured out of high-quality unique springtime steel, and generally are captured regarding diff-cased in ballbearing for perfect guidance and control.
Receiver industry / servo mount / speedo install
Composite one piece radiobox to securely install servo? s, speedo and receiver. For optimum safety the light receiver fits the top-case effortless, with opening permitting cable to protrude. The speedo seats small on a plate just above the framework, therefore fast cables might be regularly the engine. The servo is mounted in a straight fashion.
Central diff
Optimised primary gear-diff with 50T super-hard spur-gear . Small, compact design to cut back rotating mass towards optimum.
Transmission shafts
Durable but light and slim Serpent springtime steel, laser engraved shafts.
Front and back diff
Optimised gear-diff with 50T superhard spur-gears . Smaller, compact design to attenuate rotating mass towards maximum. Same variation front side and back. Diff coupler in springtime steel seated in big bearings for durability.
Back shocktower
Light, strong and durable machined 5mm carbon fibre device with 5 functions for shockangle.
Back uprights
Durable composite right back uprights with 3 camber jobs
Mudguards
In moist or moist dirt circumstances these mud guards lessen and dust after a big part drive shafts and shocks. Follow distinct wishbone perfectly.
Rubber shoes for shafts
Keeps the dust out and lubrication in. Reduces use.
Suspension brackets straight back
Well machined 7075 T6 aluminium with eccentric inserts to alter set-up.
Right back wing mount
The composite straight back wing mount, permits to change the angle associated with the straight back wing.
Right back wing
Two phase high down force wing, has two degrees of angle, that also includes 2 fins. Helps improve down force and right line ability
Bodymounts
Nylon bodymounts with wider sitting the human body, securely fastened toward shocktowers.
Super Minimal profile Body
Enhances look including keeps the profile minimum.
Decals
Serpent and Cobra-T logo decals in black-white printing
Natural oils / oil
Kit includes quality silicone oils the diffs and shocks and a container of oil.
