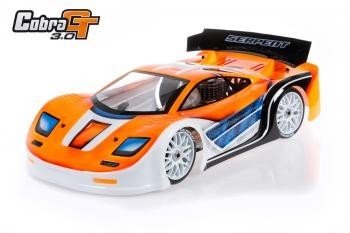

Cobra GT 3.0 1/8 GP 4wd Serpent Cobra onroad 1/8 scale GT vehicle, gaspowered variation. Based on the Cobra platform, built to perform on asphalt songs. High end rushing framework with 7075-T6 alu framework, carbon fiber shocktowers, race-clutch, light 2-speed gearbox, durable spring-steel drivetrain, geardiffs, captured foam bumper, the works.Does not add engine, airfilter, wheels/tyres, human body or gadgets.
Specification:
- Course: 1/8 scale 4wd GT
- Purpose: high-end competition
- Suspension: completely separate
- Clutch: 4 shoe
- Gearbox: 2-speed XLi
- Drivetrain: cardan shafts, 2 gear diffs
- Fueltank: 150ccm
- Wheel-base: 328mm
- Width: 305mm
- Handbook: color PDF / USB with arranged actions and exploded views
- Decals: 2 sheets
- Not included: human body, radio gear, engine-pipe, airfilter, tyres-wheels.
Features:
Brand-new XLi superlight 2-speed gearbox
The XLi gearbox comes from the Viper 977-Evo kit that's well proven for performance and durability, including simple setting. The paid down inertia prompt you to definitely accelerate quicker.
New aluminium middle bearing obstructs ( keeping stopping system and 2-speed)
to hold this fresh 2-speed gearbox/shaft in addition to the present twin braking system system newly designed superlight aluminium bearingblocks was at fact produced.
New front front side part and front side back aluminium suspension system system holders
they're designed to change the piviot pin angle, thin lower wishbones may be more right, which geometry fits onroad rushing better.
Brand new Alu c-hubs in 6 degree variation
the most recent alu c-hubs are very vital that you make maximum utilization of the initial pivot pin / wishbone angle. CNC-machined from 7075 T6 aluminium, laser etched and black colored anodised devices.
Groundbreaking aluminium, uprights for groundbreaking rear geometry
permitting a larger onroad geometry we designed these completely new CNC machined aluminium uprights, black colored colored anodised and laser etched.
Original alu shockabsorber risers front and straight back
Fresh alu shocktowers front and back
The durable machined alu shock-risers front and back allow an even more onroad aimed angle linked to the shockabsorber creating more basic hold and more predictable cornering. The most recent 4.5mm paid down carbon fiber shocktowers additionally care for this new surprise perspectives, with either 5 holes for further fine-tuning.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches create flex and or make lighter. Kick-up angle on front component as need as a result of the race-rules. Countersunk holes. Slots to get the front and right back suspension system system mounts precisely. Angled edges to enhance tightness. Begin pouches to own utilizing flywheel and 2-speed gearbox. Laser engraved Cobra GT custom logo design.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and lower bumper-plate.
Chassis stiffeners
Composite stiffener front part and back, to offer additional tightness, however allow some flex as required.
Central diskbrake system
little and centrally put brake system for low centre of gravity with ventilated glassfibre stopping system disks, and dense metal dishes which wont fold under anxiety.
Radio-box
Composite radiobox that provides area the lay-down steering servo and upright placed brake-throttle servo. Enough spacers are provided for appropriate fitting towards servo?s. The receiver and battery pack could be placed precisely in big limit. The transponder can be set up in primary component, between servo and receiverbox. Your whole make including linkages is removed effortlessly and fast previously, whenever cleaning the car, or doing maintenance.
Servo arms and linkages
The servo fingers have actually in fact actually a splined insert to really have the right fit per brand. The linkages runs actually neat and tight and generally are usually additionally available to change settings.
Suspension brackets
extremely machined 7075 T6 suspension system brackets in anodized, laser etched. Pecision complement the nylon roll center inserts and pivot balls / pins. The GT 3.0 front suspension system system brackets cause the pivot-pin and paid off supply more horizontal, which improves control and steering.
Steeringblocks arranged
Composite steeringblocks and alu 6 dgr C-hubs for exact steering. Spring metal wheel-axles with big size bearings 8x18x5 and 15x21x4 with precision threaded aluminium wheel-hubs with +3 offset . Flanged wheel peanuts to make sure that you will not loose a wheel nut in a race.
Front suspension system system
Durable oversized paid down suspension system system system fingers in strong composite nylon. On reduced part the initial downstops screws are set up. The paid down shock-mounting pins are fully guaranteed with a little grubscrew through the base.
Front component anti-roll club
The ballraced front component anti-roll bar system, have a spring metal fold cable, which will be led through diff-cases and run in ballraced metal adaptors. The cable is for this paid off suspension system supply, with a captured adjustable threaded pivotball, for really exact and low friction procedure.
Shocktower and bodymounts front / alu shock-risers
brand-new 4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center roles. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops. The durable machined alu shock-risers ahead enable a more onroad aimed angle concerning the shockabsorber creating more fundamental hold plus much more predictable cornering.
Angled steering system / servo saver
The bell cranks are angled to minimize the angle of distinction between the whole total caster and steering airplane. Therefore you ought to have less bump steer and a truer steering Ackermann through the complete collection of suspension
Ackermann plates
as a result of design about the steering bell cranks whenever changing the Ackermann you do not must adjust your steering tie rods. You simply will simply should adjust your end points within radio..
back yet again suspension system hands
Durable oversized reduced suspension system system arms in strong composite nylon. In lower component the initial downstops screws are installed. The paid off shock-mounting pins are fully guaranteed with a little grubscrew through base.
straight back uprights installation
completely new aluminium, black colored colored colored anodised and laser etched uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings 8x16x5 and 13x19x4 with precision threaded aluminum wheel-hubs with +3 offset . Rubber dustcovers on rear to shield the cvd system and keep the lubrication in. Flanged wheel peanuts to make certain you might perhaps not loose a wheel nut in a race.
right back anti-roll club
The ballraced front component anti-roll club system, have really a springtime metal fold cable, which will be led through diff-cases and runs in ballraced metal adaptors. The cable is a result of this lower suspension system system system supply, with a captured adjustable threaded pivotball, for really accurate and low friction procedure.
Shocktower rear / alu shock-risers
groundbreaking 4.5mm dense carbon shocktower, built-into the trunk component for additional tightness, with 5 top placement holes the shocks and 6 holes for roll-center functions. The durable machined alu shock-risers in right back allow a far more onroad aimed angle associated with the shockabsorber creating more basic hold and many other things predictable cornering.
Wingmount and bodymounts backside
Composite straight back wing, with strong nylon adjustable rear bodymounts on wide body-support connection discovered far sufficient toward back, to greatly help the numbers in simplest means.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted arranged producing in spring-steel quality. This insures your opportunities to complete 1 hour or even more lengthy significant event, while fighting the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to rotate to any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons occur create by a nut in to the polished shock-rods tops. Begin type springtime retainer enabling dust out simple.
RCM shock springs
Brief type colorcoded surprise springs are supplied initial standard set-up Springs are grinded flat top and base, and examined on their own for anxiety and size.
Compact geardifferentials
actually compact gear differentials with actually smooth metal sintered gears, and metal shaft. Perfect sealing situation with unique gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector employed in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
Front and back cvd-sets
Both front component and right back captured driveshafts are increasingly being in conjunction with CVD system. Durable yet light springtime steel etched driveshafts with hard metal pins.
Spring metal transmission elements
the main element and straight back slim but strong springtime steel cardan shafts link the differentials using the gearbox area.
motor mount
Machined 7075 T6 aluminium motor mounts with component air-con fins.
Coil exhaust cable and alu mount
The tuned pipe is securely fastened using the cols springtime and aluminium owner.
Helps assistance with causing back motion for the pipeline whenever chassis flex does occur. In fact enables you to avoid problems for your exhaust gaskets.
SL8 XLi 2-speed gearbox
SL8 gearbox comes directly from Serpent 977-EVO 1/8 scale onroad vehicle. Really light and compact design. Centrifugal springtime stuffed footwear system with little alu bell and flange with one-way bearing. Durable composite 2-speed gears with smaller pitch .
2-speed clutch-housing with screw-on gears
Strong steel clutch-housing with precision machined threading, with hard coated aluminium screw on gears with smaller pitch .
4-shoe clutch
Complete carbon 4 footwear clutch-set with moderate kind springs. A facile task to construct with light and durable anodized aluminium flywheel.
150cc fueltank
Composite nyon fuel-tank with supersealing springloaded shock-cap, bronze sintered clunk type filter and splash-side guard. Component features slots to put in the provided tube-guiders. Tank mounts to framework on much longer composite articles with integral plastic buffers allowing some movement and reduce fuel-foaming. The clunk system enables the engine to hold operating as soon as the vehicle is up-side-down.
sebum and grease
The shock-oil, diff oil and plenty of oil issues match the conventional set-up.
