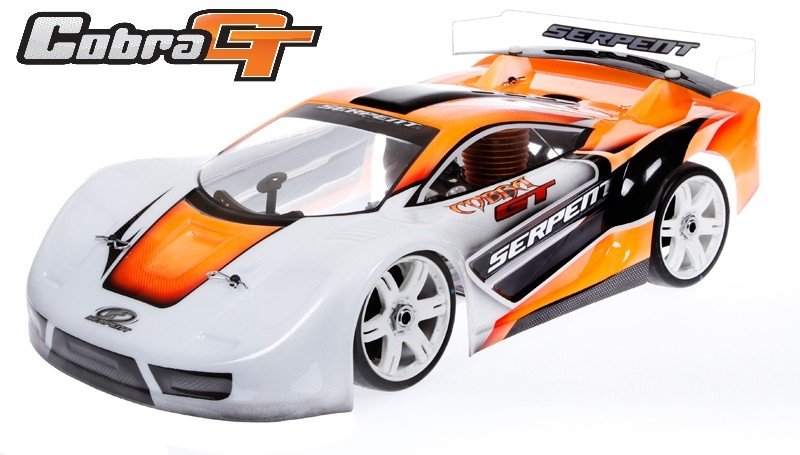

Serpent Cobra onroad 1/8 scale GT vehicle, gaspowered variation. Based on the Cobra platform, built to perform on asphalt songs.
Needs:
- program: 1/8 scale 4wd GT
- Purpose: high-end competition
- Suspension: totally split
- Clutch: 4 footwear
- Gearbox: 2-speed SL8
- Drivetrain: cardan shafts, 2 gear diffs
- Fueltank: 150ccm
- Wheel-base: 328mm
- Width: 305mm
- handbook: color with generate actions and exploded views
- Decals: 2 sheets
- not included: body, radio gear, engine-pipe, airfilter, tyres-wheels
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pockets create flex and or make lighter. Kick-up angle on front as need because of the race-rules. Countersunk holes. Slots to learn the most effective and back suspension system system mounts precisely. Angled edges to enhance tightness. Begin pouches to find your self in flywheel and 2-speed gearbox. Laser engraved Cobra GT company logo.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and paid off bumper-plate.
Chassis stiffners
Composite stiffner front component and back, to make additional tightness, however allow some flex as required.
Central diskbrake system
small and centrally place braking system system for low centre of gravity with ventilated glassfibre stopping system disks, and dense steel meals which wont fold under anxiety.
Radio-box
Composite radiobox that delivers room the lay-down steering servo and upright put brake-throttle servo. Adequate spacers are offered for proper suitable through the servos. The receiver and battery power are put correctly under the big limit. The transponder might setup to the primary component, between servo and receiverbox. Your installation including linkages are eliminated effortlessly and fast on top of that, whenever cleaning the car, or doing maintenance.
Servo hands and linkages
The servo arms have actually really actually a splined insert to really have the right fit per manufacturer. The linkages operates really neat and tight and tend to be easily obtainable to improve settings.
Suspension brackets
Wonderfully machined 7065 T6 suspension system brackets in anodized, laser angraved. Pecision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks together with 10 dgr C-hubs for precise steering. Spring metal wheel-axles with big size bearings 8x18x5 and 15x21x4 with accuracy threaded aluminum wheel-hubs with +3 offset . Flanged and serrated wheel peanuts to make sure you will surely maybe not free a wheel nut in a race.
Front suspension system
Durable oversized paid down suspension system system hands in strong composite nylon. In reduced component the unique downstops screws are create. The low shock-mounting pins are guaranteed with a tiny grubscrew through the base.
Front part anti-roll club
The ballraced front part anti-roll club system, contain a spring metal fold cable, which led through diff-cases and run in ballraced metal adaptors. The cable is through the paid down suspension system system supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction procedure.
Shocktower and bodymounts front
4.5mm dense carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of difference between the sum total caster and steering airplane. Therefore you ought to have less bump steer and a truer steering Ackerman through the entire array of suspension system system system
Ackerman plates
as a result of the design in regards to the steering bell cranks whenever changing the Ackerman you may not need to change your steering tie rods. You merely only will be needing adjust your end points all on your own radio..
Rear suspension system hands
Durable oversized reduced suspension system arms in strong composite nylon. On paid off component the initial downstops screws are installed. The reduced shock-mounting pins are guaranteed in full with a small grubscrew from base.
back uprights arranged
Composite uprights with 3 top roll-center roles. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings 8x16x5 and 13x19x4 with precision threaded aluminum wheel-hubs with +3 offset . Rubber dustcovers in the rear to safeguard the cvd system and kepe the lubrication in. Flanged and serrated wheel peanuts to ensure you'll not loose a wheel nut in a race.
straight back anti-roll club
The ballraced front side part anti-roll club system, consist of a spring steel fold wire, that can be often directed through diff-cases and operates in ballraced steel adaptors. The cable is with this paid down suspension system system supply, with a captured adjustable threaded pivotball, for in fact accurate and low friction procedure.
Shocktower backside
4.5mm dense carbon shocktower, built-into the trunk area for extra tightness, with 5 top placement holes the shocks and 6 holes for roll-center functions.
Wingmount and bodymounts right back
Composite right back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection situated far sufficient toward rear, to help the numbers in simplest means. .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted create making in spring-steel quality. This insures your possibilities to complete 1 hour extended primary event, while fighting the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberal to have a look at just about any angle without binding.
Shock absorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings inside. Shocks use large diameter membrames and large diameter o-rings and bushings to make a supersmooth and leak-proof package. Large diameter pistons occur in place by a nut concerning the polished shock-rods tops. Begin kind springtime retainer allowing dirt out simple.
RCM surprise springs
fast type colorcoded surprise springs are supplied the very first standard set-up Springs are grinded flat top and base, and examined separately for anxiety and length.
Lightweight gear differentials
actually compact gear differentials with excessively smooth steel sintered gears, and steel shaft. Perfect sealing situation with special gasket and o-rings. Actually light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector involved in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
front side part and right back cvd-sets
Both front component and straight back captured driveshafts are increasingly being alongside CVD system. Durable yet light springtime steel engraved driveshafts with hard metal pins.
Spring metal transmission components
the leading and back slim but strong springtime steel cardan shafts link the differentials along with the gearbox area.
motor mount
Machined 7075 T6 aluminium engine mounts with component ac fins.
Coil exhaust cable and alu mount
The tuned pipeline is securely fastened utilising the cols springtime and alumium owner.
Helps assistance with causing right back motion making use of this pipeline whenever framework flex occurs. Actually really really helps to avoid issues for your exhaust gaskets.
SL8 2-speed gearbox
SL8 gearbox comes from Serpent 966 1/8 scale onroad vehicle. Really light and compact design. Centrifugal springtime stuffed footwear system with big alu bell and flange with one-way bearing. Durable composite 2-speed gears.
2-speed clutch-housing with screw-on gears
Strong metal clutch-housing with accuracy machined threading, with hard coated aluminum screw on gears.
4-shoe clutch
Complete carbon 4 footwear clutch-set with medium type springs. A facile task generate with light and durable anodized aluminum flywheel.
150cc fueltank
Composite nyon fuel-tank with supersealing springloaded shock-cap, bronze sintered clunk type filter and splash-side guard. Component features slots to include the supplied tube-guiders. Tank mounts to framework on longer composite articles with included synthetic buffers allowing some motion and minmise fuel-foaming. The clunk system enables the motor to continue working if the car is up-side-down.
natural oils and oil
The shock-oil, diff oil and lots of oil comes to meet the conventional set-up.
