Cobra GT-E willing to Race 1/8 electric The RTR version of the effective quality Serpent 1/8 Cobra GT . Step by step with DragonRC 2.4 radio, metal-gear servo, brushless motor, waterproof speedo, prepainted-precut GT human anatomy with big back wing and premounted GT tyres 4-wheel-drive, 3 geardiffs, 16mm bigbore shocks, aluminium shocktowers and framework, simple radiobox, low batteryboxes. Completely upgradable with components and options through top end race-version. This super durable GT framework enables an unbelievable entry in the competition scene, less expensive, and will allow you to be complete your activities !
Specs:
- Course: 1/8 scale 4wd GT -e ready to competition
- function: clublevel race and parking lots
- suspension system: totally separate
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrane layer
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color RTR manual, speedo manual, radio manual
- Decals: 2 sheets
- Included: human anatomy, radio gear, speedo, motor , tyres-wheels
- perhaps perhaps not included: batteries, charger, tools
Features:
- battle ready high end electric GT 1/8
- specialist pre-assembled and pre-set
- 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined aluminium motormount, superlow longitudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll bars FR and RR, 7075 T6 alu shocktower FR and RR, durable suspension system system and transmission elements, captured suspension system system pins, the works !!
- Dragon-RC pistol kind transmitter 2.4 GHz with big LCD display screen
- Dragon-RC 120A waterproof speedcontroller
- Dragon-RC powerfull 2450kv brushless sensorless engine
- Dragon-RC 10.5kg strong servo with steel gears
- Dragon-RC high hold premounted GT racetyres and tires
- prepainted and precut ultra low GT bodyshell and big rear aero-wing
- color individual manual and decal set included
Transmitter and receiver
The DragonRC pistol sort transmitter includes a great big LCD display, rendering is easy to pick through effortless menus. The little and light receiver is prepared in to the radiobox concerning the vehicle.
Speed-controller
The electronic speedcontroller is an entirely Waterproof 120A product from DragonRC with some effect which fits the Cobra like a glove. This new modern design is extremely tiny and appealing hunting. Topquality soft silicone covered cables.
Brushless engine
The DragonRC brushless sensorless motor is a good 2450kv product provides lots of torque and amazing topspeed. , that is anodised in exact same bronze color after the other alu aspects of the automobile.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front part for stable landings. Countersunk holes. Slots for top level and right back suspension mounts correctly. Angled sides to enhance tightness.
Bumper
big foam bumper, that's held in position by an upper and repaid nylon bumperplate.
Chassis stiffeners
Composite stiffener front component and right back, to offer extra stiffness, but still enable some flex as required.
Central radio / servo mount
Composite compact radiobox providing you with good area the steering servo and also the receiver.
Battery-cases / side-guards
the real key eyecatchers would be the acutely low laydown longitudinal place battery-packs at each and every component regarding the automobile, being the primary side-guards, firmly fastened with a fliptop-lid, for effortless and quick battery pack alterations. The excess fat low in the auto plus inside the most readily useful location, balanced. The Lipo holders follow ROAR appropriate packages / proportions.
Motormount:
The engine lies in towards numerous optimal location inside vehicle, maintaining motor-forces and transmission parts / positioning in mind. Just one-screw is essential to secure the BL motor, in smartly designed durable machined aluminium motormount. Region for extra motor-cooling available as required.
The area the motor allows a maximum motor-length of 70mm, which covers many preferred machines ( excluding the truggy / monstertruck engines).
Steeringblocks construction
Composite steeringblocks along side 10 dgr C-hubs for precise steering. Spring steel wheel-axles with big size bearings and larger internal with accuracy threaded aluminum wheel-hubs with offset . Flanged wheel peanuts to ensure that you can expect to not free a wheel nut in a race.
Front suspension system system
Durable oversized paid down suspension system system arms in strong composite nylon. In regards to the paid off part the initial shaped downstops screws are set up. The paid down shock-mounting pins are guaranteed with a tiny grubscrew through the base.
Front component anti-roll club
The ballraced front side part anti-roll club system, have a spring steel fold cable, which is led through diff-cases and runs in ballraced metal adaptors. The cable is from paid off suspension system system system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.0mm thick aluminium anodised shocktower with 2 top positioning holes the shocks and and 3 holes for roll-center functions. Strong, high adjustable bodymounts with wide top-section to seat the body well.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of distinction between the full total caster and steering airplane. Because of this you'll have less bump steer and a truer steering Ackermann through the whole amount of suspension system system
Ackermann dish
due to the design of steering bell cranks whenever changing the Ackermann you do not need to adjust your steering tie rods. You merely only will need certainly to adjust your end points on your own radio..
back again suspension system system hands
Durable much longer oversized paid off suspension system arms in strong composite nylon. In to the paid down component the first downstops screws are installed. The paid down shock-mounting pins are guaranteed in full with dramatically grubscrew through base.
Straight back uprights arranged
Composite uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Tough metal wheel-axles with big size bearings and larger inside people with precision threaded aluminum wheel-hubs with offset. Flanged wheel peanuts to make certain you certainly will not free a wheel nut in a race.
Backside anti-roll club
The ballraced front side part anti-roll club system, include a springtime steel fold cable, that is directed through back wingmount and functions in ballraced steel adaptors. The cable is linked to the reduced suspension system arm, with a captured adjustable threaded pivotball, for really precise and low friction procedure.
Shocktower backside
4.5mm thick aluminium shocktower, integrated to the trunk area for additional tightness, with 2 top placement holes the shocks and 3 holes for roll-center functions.
Wingmount and bodymounts right back
Polycarbonate back low aero wing. Principal back bodymount with the back bodypost, which can be adjustable high effortlessly .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted setup generating in spring-steel quality. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for trip height environment. Shocks utilize big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons take place constantly in place by a nut towards polished shock-rods tops. Begin type springtime retainer to permit dirt out effortless.
RCM shock springs
Colorcoded contemporary competition shock springs can be had initial standard set-up and all kinds of sorts of springs are grinded flat top and base, and examined separately for tension and size and are also matched.
Compact geardifferentials
extremely compact gear differentials with in fact smooth steel sintered gears, and metal shaft. Perfect sealing instance with exclusive gasket and o-rings. Seriously light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings The Cobra-GT-E makes use of a 13T / 44T combination gearing. 46T core diff gear. This drive ratio offers you amazing acceleration using the low automobile fat.
Front and right back drive
one of many tips has captured driveshafts making use of a CVD system. The trunk has durable black colored steel driveshafts with hard metal pins.
difficult black colored steel transmission elements
Leading and right back strong hard black colored metal cardan shafts link the differentials .

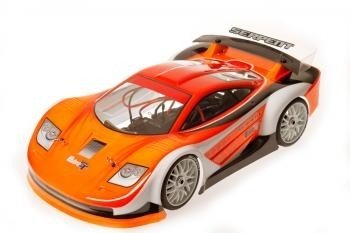

Body
Serpent superlow Cobra GT body, totally pre-painted really appealing design and pre-cut too. Stomach muscles lower body has exemplary maneuvering and downforce
Tyres / tires
The Cobra comes with premounted DragonRC GT rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with cell-foam inserts. A super-package for exemplary hold regarding most frequent areas.
Natural oils and oil
Top-quality silicone shock-oil, silicone diff oil and some grease enables you to meet up with the standard set-up.
