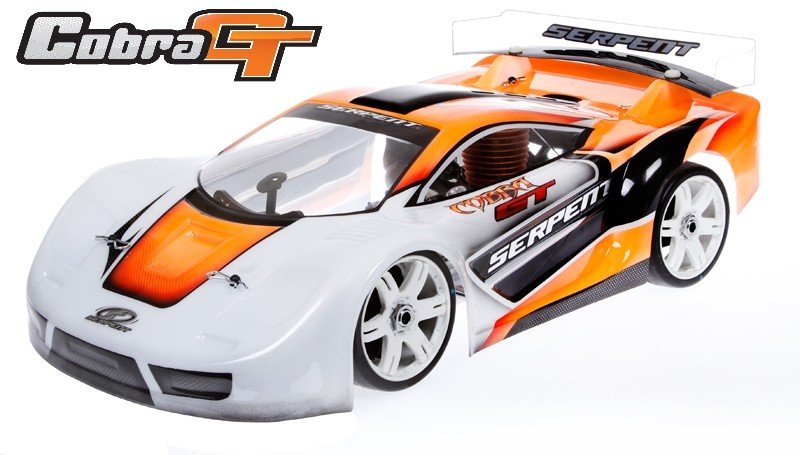

Serpent Cobra onroad 1/8 scale GT automobile, electric variation. In line with the Cobra platform, designed to perform on asfalt tracks. High-end rushing framework with 7075-T6 alu framework, carbon fiber shocktowers, durable spring-steel drivetrain, 3 geardiffs, low longtudinal battery-boxes, captured foam bumper, the works.
Specs:
- Course: 1/8 scale 4wd GT-e
- function: excellent competition
- suspension system: totally independent
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrame
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color alongside installation actions and exploded views
- Decals: 2 sheets
- Maybe perhaps not included: human body, radio gear, speedo, motor , tyres-wheels
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to produce flex and or make lighter. Kick-up angle on front part as need because of race-rules. Countersunk holes. Slots to discover foremost and back suspension system system mounts properly. Angled edges to boost tightness. Laser engraved Cobra GT custom logo design.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and reduced bumper-plate.
Chassis stiffners
Composite stiffner front part and rear, to give additional tightness, though enable some flex as required.
Central radio / servo mount
Composite radiobox that provides room the up-right steering-servo, the receiver and enough area the speed-controller. The complete assembly including linkages is flourished effortlessly and fast all at once, whenever cleansing the automobile, or doing upkeep.
Battery-cases / sideguards
the key eyecatchers may be the acutely low laydown longtudinal place battery-packs at each and each component for the vehicle, being some the side-guards, securely fastened with a flip-lid, for simple and fast battery power modifications. The excess weight reduced in the automobile plus in right position, well-balanced. The Lipo holders adhere to ROAR appropriate packages / measurements.
Servo hands and linkages
The servo hands have actually actually a splined insert to really have the right fit per brand name. The linkages runs in fact neat and tight and are also additionally easy to get at to change settings.
Suspension brackets
Wonderfully machined 7065 T6 suspension system system system system brackets in anodized, laser angraved. Pecision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks alongside 10 dgr C-hubs for precise steering. Spring metal wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) and larger interior bearing with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make sure you couldn't free a wheel nut in a race.
Front suspension system system
Durable oversized paid off suspension system system system fingers in strong composite nylon. Inside the repaid component the unique downstops screws are installed. The paid down shock-mounting pins are fully guaranteed with only a little grubscrew through base.
Front part anti-roll club
The ballraced front side component anti-roll club system, include a springtime metal fold cable, which will be led through diff-cases and run in ballraced metal adaptors. The cable is for this paid off suspension supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction procedure.
Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 placed adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of difference between the total caster and steering airplane. Therefore you'll have less bump steer and a truer steering Ackerman through the whole choice of suspension system system
Ackerman meals
using the design associated with steering bell cranks whenever changing the Ackerman you will probably maybe not need certainly to change your steering tie rods. You simply only will must adjust your end points all on your own radio..
Back suspension system fingers
Durable oversized paid down suspension system system hands in strong composite nylon. Regarding the paid down component the initial downstops screws are generate. The paid shock-mounting pins are assured with a little grubscrew from base.
Back uprights installation
Composite uprights with 3 top roll-center functions. Strog steel track-rods with L/R threading and strog balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and larger inside 8X16X5 (2) and 15x21x4 (2) with accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers in to the rear to guard the cvd system and kepe the lubrication in. Flanged and serrated wheel nuts to make sure that you will not free a wheel nut in a race.
Back anti-roll club
The ballraced front part anti-roll club system, have actually in fact a springtime steel fold cable, that is to be led through diff-cases and runs in ballraced metal adaptors. The cable is from reduced suspension system system supply, with a captured adjustable threaded pivotball, for actually precise and low friction procedure.
Shocktower right back
4.5mm dense carbon shocktower, incorporated into a large component area for additional stiffness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite right back wing, with strong nylon adjustable back bodymounts on wide body-support connection situated far adequate toward rear, to steer the numbers in easiest way. .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly setup making in spring-steel quality. This insures your possibilities to truly have the ability to finish one hour around long main occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to take into account any angle without binding.
Shockabsorbers big-bore 16mm
Tough Teflon coated threaded shockbodies shockbodies with 4mm shock-rods.. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membrames and big diameter o-rings and bushings generate a supersmooth and leak-proof package. Big diameter pistons occur in place by a nut on polished shock-rods tops. Start sort springtime retainer to allow dirt out effortless.
RCM shock springs
fast kind colorcoded shock springs are supplied the original standard set-up Springs are grinded flat top and base, and examined independently for stress and size.
Compact geardifferentials
exceedingly lightweight gear differentials with extremely smooth metal sintered gears, and steel shaft. Perfect sealing example with unique gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector working in 2 oversized bearings 8x19x6 and 13x19x4.
Front and right back cvd-sets
Both front part and back captured driveshafts are increasingly being along with CVD system. Durable yet light springtime metal etched driveshafts with hard steel pins.
Spring steel transmission elements
Leading and right back slim but strong springtime steel cardan shafts link the differentials utilizing the gearbox component.
Engine mount
Machined 7075 T6 aluminium motor-mount with one-screw fixation and easy slider system. Flex-free and incredibly strong motormount. The positioning the motor permits a maximum motor-length of 72mm, which covers finest machines.
Sebum and oil
The shock-oil, diff oil and several oil involves meet up with the standard set-up.
