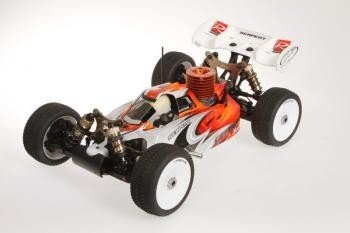

Cobra Buggy Prepared To Race 1/8 GasPowered. The RTR as a kind of the effective high-end Serpent 1/8 Cobra competition Buggy. Detailed with 2.4 GHz transmitter, Novarossi 3.5cc (.21) engine with pullstart and polished battle pipe-set, prepainted-precut Avenger human body, premounted offroadtyres on large diameter tires. 4-wheel-drive, 3 geardiffs, raceclutch, threaded 16mm bigbore shocks, aluminium shocktowers and framework, effortless radiobox, sideguards, straight back wing. Totally upgradable with elements and choices from high quality race-version. This super durable Buggy with Novarossi energy enables a great entry in the battle scene.
Requirements:
- Name: Serpent 811 Cobra Buggy 2.0
- Course: 1/8 scale 4wd buggy
- Type: ready to competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3500 grams
- Clutch: 3-shoe carbon
- Differential: lightweight, small geardiffs , front, main and rear
- Brake: piston sort with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with important bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human anatomy, wing, radio, servo's, color manual, decalsheet.
- Perhaps not Included: RX battery power, radio battery pack, gas, fuelbottle, glowstarter
Features:
- Race prepared high end gaspowered 1/8 scale buggy
- expert pre-assembled and pre-set
- Includes powerfull Novarossi pullstart motor (built-in Italy)
- 4wd with cardanshafts, 3 compact and durable geardiffs, 3-shoe competition clutch, machined aluminium enginemount, main low twin braking system system, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll pubs FR and RR, 7075 T6 alu shocktower FR and RR, 3mm hefty fat chassisplate with kick-up, durable suspension system and transmission elements, captured suspension system system system pins, the works !!
- Dragon-RC pistol type transmitter 2.4 GHz with big LCD display
- Dragon-RC 10.5kg strong servo's with metal gears
- Dragon-RC high grip premounted racetyres and tires
- DragonRC polished inline tuned pipeline system
- Prepainted and precut Avenger Cobra bodyshell and big nylon right back aero-wing
- color person manual and decalset included
- totally upgradable to complete racespec, as every area of this Cobra racebuggy fit.
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front component for stable landings. Countersunk holes. Slots getting leading side and back suspension system system mounts properly. Angled sides to improve tightness.
Sideguards
Strong composite sideguards keep consitently the most of the dirt out and good security the valuable gear in. The sideguards in addition two times work as component stiffeners and influence the flex related to framework generally speaking.
Bumper
Aligned with framework kick-up for accurate landings and to protect front suspension system system owner and anti-roll club.
Chassis stiffeners
Composite stiffener front part and rear, to supply extra tightness, but enable some flex as required for extra traction.
Central radio / servo mount
Composite lightweight composite radiobox providing you with good area the steering and throttle,-brake servo, the receiver as well as the receiver battery pack. Your complete construction including linkages are removed efficiently and fast in the past, whenever cleaning the automobile, or doing maintenance.
Central low double braking system system
The Cobra features a reduced positioned double stopping system system with lightweight glass-fibre disks with springloaded race-brake pads. Helpful stopping power.
Engine
Serpent selected the Novarossi pullstart engine the Cobra buggy. The outstanding quality degree, upper end, along with easy launching and lasting runtime, makes this engine a great partner in the first place rushing. Novarossi additionally provides a specific backplate if you change to a bumpstart system after ward, therefore you will continue with comparable motor in addition much longer !
The engine is initiated securely on machined aluminium motor mounts.
Polished tuned pipeline system
The DragonRC polished inline tuned pipeline system is advantageous utilising the Novarossi motor and produces a razor-sharp and powerfull tune. Fire it !
Clutch
The famous Serpent offroad clutch in 3 shoe variation gets the best environment for smooth performance, nevertheless when you hit the throttle hard it will increase the Cobra constantly.
Airfilter:
The foam twin action airfilter sits small towards automobile, and snugfits tight beside the fueltank. The very best opening within the body for refuelling might allow sufficient environment working with the filter
Steeringblocks arranged
Composite steeringblocks and 10 dgr C-hubs for accurate steering. Ebony hard metal wheel-axles with big size bearings , precision threaded aluminium wheel-hubs with offset and aluminium wheel peanuts.
Front suspension system system
Durable oversized reduced suspension system system system hands in strong composite nylon. Concerning the reduced part the first shaped downstops screws are set up. The reduced shock-mounting pins are secured with only a little grubscrew from base, so that they wont fall straight down.
Front part anti-roll bar
The ballraced front side anti-roll club system, have a spring metal fold cable, that is to be directed through diff-cases and runs in ballraced metal adaptors. The cable is from reduced suspension system system supply, with a captured adjustable threaded pivotball, for exceptionally exact and low friction procedure and easy tuning.
Shocktower and bodymounts front
4.0mm thick aluminium anodised shocktower with 3 top positioning holes the shocks and and 3 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts.
Angled steering system / servo saver
The bell cranks are angled to minimize the angle of distinction regarding the complete total caster and steering airplane. Therefore you need to have less bump steer and a truer steering Ackermann through the whole array of suspension system system
Ackermann dish aluminium
with all the design the steering bell cranks whenever changing the Ackermann you won't must adjust your steering tie rods. You only will simply should adjust your end points within radio..
back once again suspension system system arms
Durable a lot longer oversized paid off suspension hands in strong composite nylon. On low component the unique downstops screws are put up. The reduced shock-mounting pins are guaranteed in full with only somewhat grubscrew from base.
Mud-guards
Optional would be the composite mud guards, which may install on paid off suspension system system system arms, and that can keep dirt from your anti-roll bars transmission and tires.
right back uprights create
Composite uprights with 3 top roll-center jobs. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Tough steel wheel-axles with big size bearings and larger inner ones with accuracy threaded aluminium wheel-hubs with offset, and alu wheel peanuts.
Back anti-roll club
The ballraced front part anti-roll club system, consist of a springtime steel fold cable, that will be directed through the back wingmount and runs in ballraced steel adaptors. The cable is due to this reduced suspension system supply, with a captured adjustable threaded pivotball, for acutely accurate and low friction procedure.
Shocktower right back
4.0mm dense shocktower, incorporated into a large part part for extra tightness, with 3 top positioning holes the shocks and 3 holes for roll-center roles.
Wingmount and bodymounts rear
Composite straight back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection situated far sufficient towards back, to simply help the systems in simplest technique.
Captured pivot pins and balls and bolted hinge pins
All hardsteel hinge pins are either captured or bolted create. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to help make to just about any angle without binding.
Shockabsorbers RCM big-bore 16mm
Anodised threaded aluminium shockbodies with durable 4mm shock-rods. Pre-load adjusters with o-rings inside for journey height environment. Shocks use big diameter membranes and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons happen arranged by a nut regarding the polished shock-rods tops. Open kind springtime retainer to let dirt away simple.
RCM surprise springs
Colorcoded surprise springs are supplied the first standard set-up and all kinds of sorts of springs are grinded flat top and base, and examined independently for anxiety and size and matched.
lightweight geardifferentials
really compact gear differentials with actually smooth steel sintered gears, and steel shaft. Perfect sealing situation with exclusive gasket and o-rings. Very light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector working in 2 oversized bearings The Cobra makes use of a 13T / 44T combination gearing. 48T core diff gear, and 13T clutchbell. This drive ratio provides you with amazing acceleration along with the low automobile fat.
Front and right back drive
the best has captured driveshafts utilizing a CVD system. A large part has durable black colored colored metal driveshafts with hard metal pins.
difficult black colored colored metal transmission elements
the best and rear strong hard black colored colored metal cardan shafts link the differentials .
Body
Serpent cab forward Avenger Cobra buggy human anatomy, totally pre-painted really appealing design and pre-cut too. The sleek human anatomy has excellent control, additionally super in jumps.
Back wing:
minimal variation strong back white aero back wing is roofed for great downforce and right line security.
Tyres / tires
The Cobra has premounted DragonRC buggy rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with moulded cell-foam inserts. A super-package for exemplary hold on most frequent areas.
Transmitter and receiver
The DragonRC pistol sort transmitter comes with a pleasing big LCD display, which makes is easy to pick through effortless menus. The small and light receiver is prepared to the radiobox regarding vehicle.
Natural oils and oil
Top-quality silicone shock-oil, silicone diff oil and many oil is required to satisfy along with the standard set-up.
