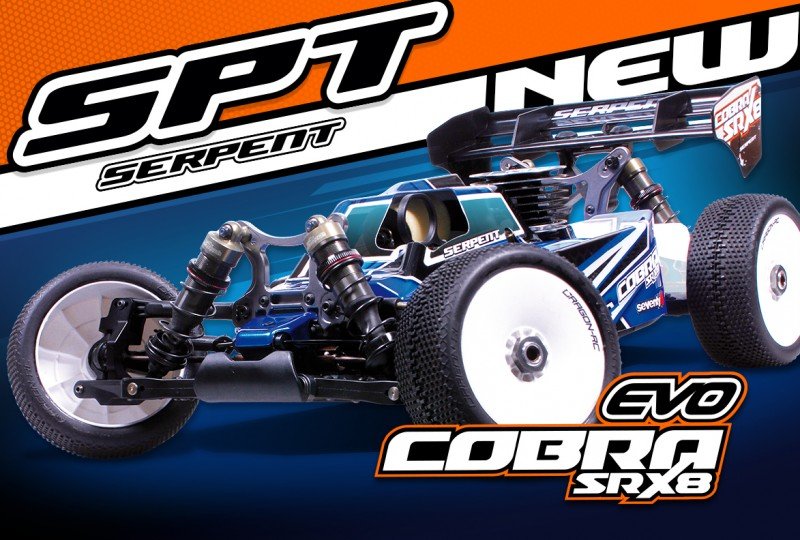

Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd [SER600019]

Price:

NZD$1,045.47

Brand:

Serpent

Model:

SER600019

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Nitro Powered category

Write a review

alt="Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd" title="Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd"

Description

Specifications

name: Serpent SRX8 EVO Cobra Buggy
program: 1/8 scale 4wd buggy
type: kit-version, upper end competition
wheelbase: 330mm
width: 305mm
fat: 3.300 grms ( competition ready, is determined by radio-gear and engine)
clutch: 4-shoe centrifugal, carbon shoes
differential: lightweight, 3 geardiffs
brake: piston type with metal disks
shocks: 16mm big bore with 3.5mm shafts
fueltank: 125ccm, with important bronze filter
gear-ratio: 4:3:1
included: Kit, human anatomy, wing, silicone sebum, color manual-USB, decalsheets.

Stunning standard gear

- coated framework 7075 T6, laser engraved
- Steeringblocks aluminum 7075 T6, black colored coated, laser engraved
- C-hubs 15 dgr, aluminum 7075 T6, black colored colored coated, laser etched
- 4.5mm anodized aluminium 7075 T6 shocktowers front component and rear
- Big-bore shocks with machined pistons and spacers, new supersmooth x-rings
- Hardcoated engraved shockcaps, 3.5mm rods and artificial sleeves.
- front part, primary and right back geardifferentials with foam insert system
- 4-shoe battle clutch
- durable wishbones willing to be utilized with inserts ( molded standard, carbon optional )
- metal diskbrake system with unique pre-mounted brake-pads
- Lightweight and strong hardcoated aluminum camberlinks and tracksrods
- straight back wing and groundbreaking Avenger high downforce design body
- Springsteel drive-train system with CVD and artificial defenses shoes
- Ballraced anti-roll bars front and back with pivot system
- Supernice radiobox design and totally included transponder -holder
- Decals for the radiobox caps
- Top-quality NSK sealed bearings in critical areas

Servo saver

These servo saver elements not only get the best Ackermann, while having now now good inside servo saver design. It gives a helix to make sure the correct running concerning the servo saver make. The servo saver springtime is protected by a dense foam target, to carry debris out. The springtime pre-tension clamp nut are locked constantly in place to prevent switching loose.

Steering system â servo saver

The double axis steeringsystem with integral servo saver is set up under an angle concerning the cheap bumpsteer and a direct steering feel. The axis are developed in light-weight aluminium. This brand-new bellcrank takes a bearing raced crossbar with zero slop. It designed with the top Ackermann to enhance the cars drive-ability.

Motor mount

Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and big contact area with framework, comes grey anodised .

Chassis stiffeners
Extra long chassis stiffeners, front side as well as in composite item to possess right flex and stops the chassis to fold excessively. Effortless securing fastening system.

Side-guards
The composite sideguards keep debris from the automobile, include rigidity toward framework and gives the body. The sideguards are fixed towards framework through the top in pre-threaded holes into the framework. This is why the screws are protected well including its simpler to re-assembly whenever required. The sideguards work a pocket on the exterior allowing mounting some felcron tape to steer / fix the human body.

Serpent Cobra SRX8; Comprehensive Details

Chassis
The framework cnc machined from 3mm aerospace kind 7075 T6 aluminium and comes anodised for durability and possesses an optimised engine location. All holes inside the framework are countersunk.
The pocket the flywheel is adequate permitting many widely used starterwheels. The sideguards mount towards fold chassis-sides through inside with pre-threaded holes in chassis. The framework provides good size areas for the downstops.

Engine mount
Lightweight CNC machined engine install in 7075 T6 aluminium with pre-threaded holes and large contact area with framework, comes grey anodised .

Chassis stiffeners
Extra long framework stiffeners, front component and in composite material to own right flex and stops the framework to fold too much. Effortless securing fastening system.

Side-guards
The composite sideguards keep debris through the car, include rigidity towards the framework and supply your body. The sideguards are fixed towards the framework from top in pre-threaded holes in the framework. In this manner the screws are protected well in addition to easier to re-assembly whenever needed. The sideguards feature a pocket externally enabling mounting some felcron tape to steer / fix your body.

Steering system â servo saver
The dual axis steeringsystem with integrated servo saver is installed under an angle at a reduced cost bumpsteer and an immediate steering feel. The axis are manufactured in light-weight aluminium. This groundbreaking bellcrank accepts a bearing raced crossbar with zero slop. It constructed with the right Ackermann to improve the vehicles drive-ability.

Servo saver
These servo saver elements not merely have the best Ackermann, but additionally have actually actually excellent inside servo saver design. It provides a helix to be sure the best option working from the servo saver arranged. The servo saver springtime is protected by a dense foam target, to put on debris out. The springtime pre-tension clamp nut is locked make to end turning free.

Radio-tray
The user friendly and durable radiotray is created only feasible yet such shows that all electronics easily squeeze into quick and easy well. Its features a seperate component in-front the battery, to have the thicker component more front. The lid has 4 screws. Both servoâs squeeze into nicely with lots servo-spacers to put in them on right height. The framework inside the servoâs has reduced pouches permitting mounting the servoâs suprisingly low. Ofcourse it is also important to consider chassisflex / torsion, consequently donât install them too low. The transponder, little or moderate type, has a fantastic flush mounted owner included. The receiver industry in addition has 4 little screws for effortless and fast access. You will probably install each day to day switch, or make use of provided target if you utilize another solution. 2 carbon look decals are included to cover the battery pack and receiverbox.

Fueltank
The125cc fuel tank using the spring and cap enable the force are more equal through the entire the most effective limit, and the design of limitation does not also have flex . The clunk is increased in order that it'll continually be in base of tank and certainly will maybe not pop-up or float in base. Even though the drain area towards the top ended up being enhanced by which there was now a 4mm opening that'll enable dirt and debris to flee and not block. The fuel-tube videos now mount towards the tank with screws consequently you wont must be focused on losing them. The tank pull allows quicker and many other items safe refuelling. The tank is further from exhaust , which will avoid melting regarding the tank. The kit includes purpose made insert to cut back the data if required. The tank mounts on 2 strong composite poles with artificial grommets for versatile mounting and invite effortless dis-assembly for checks and cleaning.

Airfilter
High quality 2 piece dense foam for perfect filtering ( use topquality airfilter oil simply ). The dog owner permits effortless installation. Regarding the front âtop component the mount is attached to the center advice about a spring cable, fixed with a bodyclip. The most recent plastic elbow enables good airflow and features wide grooves to make use of tie-wraps.

Center diff mount
Durable center mounts with big size bearings to set up the stopping system system and center diferential. A moulded brakedisk guider is attached to the brackets. Your complete system is created simply simple for CG reasons. The sleek top-cover keeps dust away and guides both stopping system cams.

Brakes
The SRX8 supplies the conventional stopping system with brake cams, steel disks and metal pads with effective pre-glued brakepads .

Clutch
The effective 4-carbon footwear competition clutch is proceeded . It may be completely pre-assembled and become setup on motor. The unit is sold with a light and small aluminium flywheel and durable springsteel 14T clutch-housing .

Differential cases
The strong moulded differential circumstances which may have the differential and supports the shocktowers.
The differential front and back is eliminated after taking right out simply 4 screws and having rid of the anti-roll bars, super-easy !

Differentials
The compact geardiffs with big oil amount. The diff has cavities specifically made for shut mobile foam. This foam can make up for expansion the oil, that may why don't we fill the diffs more full, maintaining the gears completely engulfed in oil. The cavity where gears rest has additionally been redesigned so that there is not low force areas perhaps not inside gears. This may keep more oil inside gears although rotating at high rpms. Because of this could keep the diff more constant at low and high rates including hot or cool .

Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have actually actually really a much more impressive basic diameter, to make sure these are typically more in oil, making the diff more consistent , smoother and much more effective . The steel 44T musical organization gear is light possesses an ideal match utilising the brand-new 28T gear.

Wheel axles / hex / boots
The durable Serpent springsteel wheelaxles are captured CVD design whilst having plastic footwear to guard the machine and bearings against dirt and dust, such that it will all keep going longer. The wheel hex is a durable hard aluminium variation which fits all popular tires well. The pins used are 3mm people improve durability.

Steeringblocks
The steeringblocks are designed in 7075 T6 aluminium because they are additionally anodised in black colored colored. These steering obstructs happen developed to allow you to replace the Ackermann on steering spindle plus offer usa along with the suitable scrub offset in conjuction aided by the caster block. The bushings push in the obstructs and minmise any undesirable play.

C-hubs
The fresh 15 dgr c-hubs were created in 7075 T6 alminium and generally are anodised in black colored colored. These available design actually durable services and products help enough space to allow the optimum steering-angle and lalow area to mount the rubber dirt protectors on CVD system. As optional at this time 13, 17 and 19 dgr aluminum c-hubs too.

Uprights
The fresh strong composite uprights access make use of the team variation. Providing 2 lower and 4 top roles for set-up.

Wishbones
Very durable and intensely long moulded wishbones front and right back. The composite is chosen your can purchase sufficient flex whenever required. The looks has pouches towards the top and underside of the supply to include the typical moulded insert dishes, and/or optional carbon fibre individuals. In so doing you will select the most readily useful supply flex for every condition. Also various or no inserts front component or right back and combining moulded and carbon inserts can be achieved. The moulded inserts will stiffen the hands a little, but keeps them cleaner. The carbon people, or alongside moulded people will stiffen the arms much. Several choices so as to utilize.

Mudguards
The mudguards are located in lightweight transparant polycarbonate which may be held clear, be painted or skinned as prefered.

Suspension system system brackets
The suspension system system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They key to your framework for perfect fit. The brackets have actually in fact in fact precision machined pouches to utilize inserts to enhance the set-up.

Anti-roll bars
The anti-roll club system is the most important around. Precison made cable runs in ballraced adaptors within the front part and straight back diff case-plates. Superfree and stabile. The cable links to a balljoint that will be fitted with a pivotbal on wishbone. The works !

Shocktowers
leading and straight back shocktowers are durable 4.5mm 7075 T6 alumimium things, CNC machined and laser etched with Serpent logo.

Shocks
Durable refined steel 3.5mm rods are employed with difficult anodised caps and threaded shock-bodies. The sealpack have actually machined bushings and brand-new x-rings and it is held in position with only just a little inside clip. The shockpistons are machined delrin products for many effortlessly of good use performance. The shocks in kit are membrame design, with emulsion sort hardcoated caps and seals become supplied as choice.

Shock springs
Race surprise springs being pre-selected and paired. The surprise springs are grinded flat for perfect procedure.

Wing back black
The unique flat sort back wing is an efficient medium downforce unit with big sidewings. The decalsheet provides sidewing decals to work with.

Wingholder rear
The right back wing owner is an excellent durable and light one piece moulded device . The set includes wing-spacers to place the wing under an array of views.

Body
Avenger design high downforce human body is developed the SRX8. Cab-forward design human body with small fin over the top for security. Sweet going edges with small straight back upward fins for back downforce. Enough room allowing for airfilter, enggine mind, carburetor and exhaust / exhaust adaptor. Exemplary polycarbonate. The human body has good trimlines for effortless cutting. Identical the bodyholes. A masking sheet is roofed to greatly help with paintjob preps.

Bodymounts
This right back human body mount has a rubber cushion inside. Licenses your system mount to show front component to rear in a primary impact or crash. This saves our body from breaking or tearing. The most effective one is a group kind which is effortless available.

Ballbearings
Top quality shielded NSK bearings with oil through the whole kit.

Manual
amazing color PDF manual in landscape orientation to own more area to spell out all, whilst having now appropriate design for display use and. Color variation with extra step-by-step views and documents, and showing the device in genuine size for each and every website. Serpent USB stick is roofed with manuals and set-up sheets.

Set-up sheet
Blank, standard and edit variations prepared to utilize.

Decals
In the kit comes 1 Serpent logosheet and 1 Cobra SRX8 sheet

Box / packing:
The Cobra SRX will be good carton industry with Serpent custom logo, which frequently re-used for tyres or other gear. The container is covered with outstanding color sleeve showing the vehicle front part and right back.

Heritage

Serpent as business was limited to sale in 1980, and possesses now now over 35 years expertise in developing, testing, designing and manufacturing rc modelcars and it's also one of many longest current rc brands global with 10 World Championship games and countless European, United states, Asian and nationwide games won by Serpent motorists !

Design

Serpent designer Billy Easton from United States Of America, is element of a group of designers, each utilizing their own specialty. Billy utilized the input from numerous Serpent motorists, teamdrivers and organizations, to create this EVO variation 1/8 buggy. The biggest thing focus is continually on performance, but we've got compensated some start thinking about eas of good use and durability.

For motorists which also operate electric 1/8 buggy, Serpent offers the Cobra SRX8-E that is to be in line with the exact same platform and shares numerous elements using the GP variation, therefore its outstanding combination.

Great information, solution which help

- Car-kit includes USB follow color construction in PDF with hotlinks to internet sites for effortless free elements selection .
- Serpent vendors and dealers are active in virtually every areas of the rc battle world, for information, solution, help and supply
- use of Serpent website, TeamSerpent internet site, Serpent Twitter, Serpent Twitter Groups ( per vehicle), Serpent Twitter, Serpent Advanced Manuals
- be concerned in for Serpent Master Classes ( SMC) by Serpent team-drivers

Eas of upkeep

- simple front side and right back differential access with 4 screws only
- very easy utilizing the primary differential and braking system system
- very easy lever system the throttle and stopping system
- very easy treatment and re-assembly of engine, radiobox, tank, complete radiobox, complete front and right back, complete center assembly
- Supernice fueltank with screw-on type fueltube holders, insert-system to lessen tankvolume , improved filter/clunk , enhanced fuelcap and springtime.

Performance loaded

- totally adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight, wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
- geometry front part and right back coupled with framework type and longer framework braces for substantially more agile management, more steering, more back hold and enhanced balance.
- Angled steering system for optimal Ackermann, responsive steering and reduced bumpsteer.
- Hardcoated shocks
- battle clutch with 4- carbon footwear system
- Effective airfilter system with new angled synthetic connector and strong wireholder
- amazing areo pack with Avenger high downforce human body and right wing for medium downforce. Optional high downforce adjustable polycarbonate back wing.

Set-up sheet

Blank, default and edit variations ready to utilize.

Decals
In the kit comes 1 Serpent logosheet and 1 Cobra SRX8 sheet

Box / packing:
The Cobra SRX are going to be an excellent carton industry with Serpent company logo, which can be re-used for tyres or other gear. The container is covered with a fantastic color sleeve showing the automobile front side side and right back.
