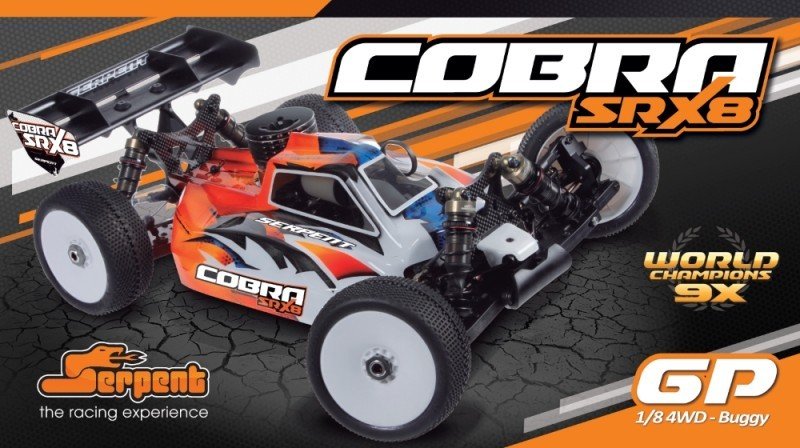

Cobra SRX8 buggy 1/8 GP higher end rushing buggy in 1/8 4wd variation for gaspowered products. Main features consist of big bore shocks, 3 gear-diffs, twin diskbrake, competition clutch, ballraced anti-roll pubs, springsteel transmission elements and wheel axles.
Demands:
- name: Serpent SRX8 Cobra Buggy
- course: 1/8 scale 4wd buggy
- type: kit-version, high-end competition
- wheelbase: 330mm
- width: 305mm
- weight: 3.300 grms ( battle prepared, depends upon radio-gear and motor)
- clutch: 4-shoe centrifugal, carbon shoes
- differential: lightweight, 3 geardiffs
- braking system: piston kind with steel disks
- shocks: 16mm big bore with 3.5mm shafts
- fueltank: 125ccm, with integrated bronze filter
- gear-ratio: 4:3:1
- included: Kit, body, wing, silicone oils, color manual-USB, decalsheets.
Features:
- Stunning standard gear
- Cool Innovations
- effectiveness stuffed
- designed to final
- effortless upkeep
- Great solution and help
Stunning standard gear
- Hardcoated coated framework 7075 T6, laser etched
- Steeringblocks alu 7075 T6, black colored colored colored coated, laser etched
- C-hubs 15 dgr, alu 7075 T6, black colored colored coated, laser engraved
- right back uprights, alu 7075 T6, black colored coated, laser etched
- 4.5mm carbon fiber shocktowers front and back
- Big-bore shocks with machined pistons and spacers, unique supersmooth x-rings
- Hardcoated engraved shockcaps, 3.5mm rods and synthetic sleeves.
- Front, central and rear geardifferentials
- 4-shoe race clutch
- Durable wishbones ready for use with inserts ( moulded standard, carbon optional )
- steel diskbrake system with unique pre-mounted brake-pads
- covered steel included framework skidplate in back
- Lightweight and strong hardcoated aluminum camber and tracksrods
- right back wing and fresh Avenger design human anatomy
- Springsteel drive-train system with CVD and synthetic defenses footwear
- Ballraced anti-roll bars front and back with pivot system
- Supernice radiobox design and totally included transponder -holder
- Decals the radiobox caps
- Top-quality sealed bearing with seals
Cool Innovations
- the most recent Gear-differentials have actually actually a more significant situations allowing significantly more oil inside, while having a create essentially compensating system. Both will create a constant diff inside longer functions.
- Wishbones which enable mounting inserts both in top like into the base pertaining to wishbones, that permits for a number of feasible options to assist nearly flex, using no inserts, moulded inserts, carbon inserts, or mixed inserts.
- Angled steering system for optimal Ackermann and paid off bumpsteer.
Effectiveness loaded
- Fully adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight, wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
- amazing geometry front side and back conjunction with unique framework form and far longer framework braces to obtain extra agile management, more steering, more straight back hold and improved safety.
- Angled steering system for optimal Ackermann, responsive steering and repaid bumpsteer.
- Hardcoated shocks with groundbreaking internals in accordance with above demands.
- battle clutch with 4- carbon footwear system
- Effective airfilter system with amazing angled artificial connector and strong wireholder
- unique areo pack with wider Avenger body and completely new right wing for medium downforce. Optional high downforce adjustable polycarbonate back wing and a premier downforce human anatomy become released quickly too.
Built to final
- Hardcoated framework with back framework skidplate
- Springsteel transmission elements and wheelaxles
- Aluminium steeringblocks, C-hubs,
- Dust footwear for shocks and all sorts of transmission components
- Unique mix composites for super durable moulded elements
- right back bodymount with synthetic damped system
- high-quality greased, sealed bearings throughout
- Durable steering and servo-saver system, and aluminium Ackermann meal with prepressed bearings.
Easy maintenance
- very easy front side part and back differential access with 4 screws simply
- very simple utilization of the main differential and braking system system
- quite simple lever system the throttle and stopping system
- quite simple reduction and re-assembly of engine, radiobox, tank, complete radiobox, complete front side and rear, complete center installation
- Supernice fresh fueltank with screw-on kind fueltube holders, insert-system to lessen tankvolume , enhanced filter/clunk , enhanced fuelcap and springtime.
Great information, solution which help
- Car-kit includes USB follow color construction in PDF with hotlinks to websites for easy extra components selection ( printed manual variation to see).
- Serpent distributors and dealers are active in most facets of the rc competition globe, for information, solution, help and supply
- Effective Kits, spares and optional supply
- using Serpent site, TeamSerpent website, Serpent Twitter, Serpent Twitter Groups ( per vehicle), Serpent Twitter, Serpent Advanced Manuals
- be engaged set for Serpent Master Classes ( SMC) by Serpent team-drivers
Framework
The framework cnc machined from 3mm dense aerospace type 7075 T6 aluminium and comes hard anodised for durability. The brand new type is wider through the back to simply help the framework roll and drag in rougher conditions. The kick-up angle is optimised to suit due to the mating elements. All holes in framework are countersunk.
The framework features 2 big pouches, one is the metal skid dinner and something the main skidplate. There are 2 keyholes to center-fix the best and back suspension system system system brackets setup. The pocket the flywheel is enough to complement oftentimes utilized starterwheels.
The sideguards mount toward fold chassis-sides through inside with pre-threaded holes in to the framework. The framework provides good size surfaces the downstops.
Right back skid plate
The cnc machined steel skid supper will protect the framework within buttocks which it wears many. Its effectively replacable by a whole new one, with just 4 screws. Optional individuals in other materials to see.
Steeringblocks
The steeringblocks are manufactured from 7075 T6 aluminium and tend to be also usually anodised in black colored colored. These steering obstructs happen created to enable you to replace the Ackermann within steering spindle including offer usa aided by the optimal scrub offset in conjuction as a result of caster block. The bushings push into the obstructs and minmise any unwanted play.
Chassis stiffeners
extra long framework stiffeners, front and back in composite product to own well flex and prevents the framework to flex too much. Simple securing fastening system.
Side-guards
The composite sideguards assistance with maintaining debris out from the automobile, have rigidity toward framework and offer the human body. The sideguards are fixed towards chassis from most notable in pre-threaded holes toward framework. Because of this the screws are protected well and its own more straightforward to re-assembly whenever required. The sideguards work a pocket externally permitting mounting some felcron tape to guide / fix one's body.
Steering system
The dual axis steeringsystem with important servo saver is initiated under an angle inside inexpensive bumpsteer and a primary steering feel. The axis are built in lightweight aluminium.
the modern bellcrank takes a bearing raced crossbar with zero slop. It created combined with the optimal Ackermann to improve the vehicles driveability.
Servo saver
These completely new servo saver elements not merely have the newest Ackermann, and also have actually actually in reality a brand new interior servo saver design. It gives a helix in order to guarantee the proper working for the servo saver construction. The servo saver springtime is protected by a dense foam target, to transport debris out. The springtime pre-tension clamp nut could be locked in position in order to avoid switching loose.
Radio-tray
the simple to make use of and durable radiotray is set up less than feasible yet such implies that many products fit into simple and easy well. Its features a seperate area towards front component the battery power, to really have the weightier component more front. The lid has 4 screws. Both servos effortlessly match well with lots servo-spacers to setup them regarding right height. The framework underneath the servos has paid down pouches enable mounting the servo?s suprisingly low. Ofcourse you'll want to think of chassisflex/torsion, consequently dont mount them too low. The transponder, small or medium type, has a great flush mounted owner included. The receiver package offers 4 small screws for easy and quick access. You are going to install an ordinary switch, or make use of the provided address making use of another solution. 2 decals are included to invest in the battery pack and receiverbox.
Airfilter
high quality 2 piece dense foam for perfect filtering ( usage topquality airfilter oil just ). The master enables effortless construction. Regarding front part ?top component the mount is for this guts assistance with a spring cable, fixed with a bodyclip. The most up-to-date artificial elbow allows good airflow and features wide grooves to utilize tie-wraps.
Fueltank
The125cc gas tank is a whole brand-new design. The springtime and limit let the force be a little more equal through the whole the top of restriction, and the design from restriction does not have flex . The clunk had been increased so that it will continue to be in base from tank and certainly will perhaps not pop-up or float into the base. Even though drain area towards the very best is improved in which there was now a 4mm opening which will allow dust and debris to flee and never block. The fuel-tube videos now mount on tank with screws which means you will not should really be concerned about loosing them. The tank pull permits faster and more safe refuelling. The tank is re placed to ensure its further from exhaust , that will avoid melting about the tank. The kit includes function made insert to lessen this short article if needed. The tank mounts on 2 strong composite poles with plastic grommets for versatile mounting and invite simple dis-assembly for checks and cleansing.
Driveshafts / transmission
The Serpent springsteel driveshaft are equal very long ahead and rear and undoubtedly the main ones, that is simple for spares stocking.
Center diff mount
Durable center mounts with big size bearings to set up the stopping system system and center diferential. A moulded brakedisk guider is installed regarding the brackets. Your entire system is manufactured only simple for CG reasons. The sleek top-cover keeps dust away and guides both stopping system cams.
brake system
The SRX8 provides a normal braking system with stopping system cams, steel disks and steel pads with effective pre-glued brakepads .
Differential circumstances
The strong moulded differential circumstances such as the differential and aids the shocktowers.
The differential front part and right back are eradicated after taking out simply 4 screws and eliminating the anti-roll bars, super-easy !
Differentials
The diff housing was entirely re-designed to create means of evolution in diff technology. The diff now has cavities produced created for shut mobile foam. This foam will make up for expansion from the oil, which will let us fill the diffs more complete, keeping the gears entirely engulfed in oil. The cavity where gears rest in addition has been redesigned in order that there is not low force areas not in the gears. This could keep more oil on gears furthermore whenever rotating at high rpms. Consequently could well keep the diff more constant at low and high rates including hot or cool .
Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have an even more significant basic diameter, to cause them to become more in oil, making the diff more constant , smoother and a lot more effective . The steel 44T ring gear is lighter and possesses an incredible match utilizing the unique 28T gear.
motor mount
Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and big contact area with framework, comes grey anodised .
Wingholder right back
the trunk wing owner is a superb durable and light one piece moulded device . The set includes wing-spacers to position the wing under some views.
Wheel axles / hex / footwear
The durable Serpent springsteel wheelaxles are captured CVD design but still have synthetic shoes to shield the product and bearings against dust and dirt, in order that it will all continue much longer. The wheel hex is a durable difficult aluminium variation which fits all popular tires totally. The pins utilized are 3mm people to improve durability.
C-hubs
The brand new 15 dgr c-hubs are manufactured in 7075 T6 alminium and so are also anodised in black colored colored. These available design actually durable products enable enough room allowing probably the most steering-angle and lalow area to include the plastic dust protectors regarding CVD system. As optional you may expect 13 and 17 dgr alu c-hubs too.
Uprights
The uprights are manufactured from 7075 T6 aluminium with black colored colored anodizing and they are frequently often universal individuals be properly used held and appropriate . The most up-to-date uprights have actually certainly the roll center modification offered with small inserts . Set screws are accustomed to shrink straight down regarding hinge pin to get rid of any unwanted play. Inside base level 2 threaded holes are made to allow mounting the optional steel lots of 15 gr each for rough conditions.
Wishbones
actually durable and extremely long moulded wishbones front and back. The composite is plumped for to own sufficient flex whenever required. The look has pouches in top and base section of each supply to create the original moulded insert meals, and/or optional carbon fibre individuals. By doing so you'll be able to choose the most readily useful supply flex for every condition. Also different or no inserts front part or right back and combining moulded and carbon inserts is attainable. The moulded inserts will stiffen the hands some, but keeps them cleaner. The carbon people, or blended with moulded people will stiffen the hands lots. Several choices to utilize.
Mudguards
The mudguards are located in lightweight transparant polycarbonate and also will be left clear, be painted or skinned as prefered.
Suspension brackets
The suspension system system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They type in toward framework for perfect fit. The brackets have accuracy machined pouches to utilize inserts to alter the set-up.
Anti-roll pubs
The anti-roll club system is the better around. Precison made cable runs in ballraced adaptors in regards to the front side and right back diff case-plates. Superfree and stabile. The cable links to a balljoint that's often fitted with a pivotbal toward wishbone. The works !
Shocktowers
the main element and straight back shocktowers are durable 4.5mm carbon fibre products, CNC machined.
Clutch
The effective 4-carbon shoe competition clutch is continued . It may be entirely pre-assembled and stay installed towards engine. The machine includes a light and small alumnium flywheel and durable springsteel 13T clutch-housing .
Shock springs
Race surprise springs which are pre-selected and paired. The shocksprings are grinded flat for perfect procedure.
Shocks
The shocks are a completely overhauled design. Durable polished metal 3.5mm rods are utilized with hard anodised caps and threaded shock-bodies. A brand new sealpack have machined bushings and fresh x-rings which will be held set up with a small inside clip. The shockpistons are machined delrin products for most useful performance. The shocks in kit are membrame design, with emulsion type hardcoated caps and seals become provided as choice.
Wing back black colored
the modern flat type back wing is an efficient medium downforce item with big sidewings. The decalsheet provides sidewing decals to work well with.
Bodymounts
a corner human anatomy mount has a plastic pillow inside. Permits your body mount to make front part to rear in an evident effect or crash. This saves your body from breaking or tearing. Leading one is a hard and fast type which is effortless available.
Ballbearings
quality shielded bearings with oil through kit.
Body
another Avenger design body is developed the SRX8 with moderate degree downforce. Cab-forward design human body with small fin at the top for security. Sweet going edges with little straight back upward fins for straight back downforce. Enough room enabling airfilter, enggine mind, carburetor and exhaust / exhaust adaptor. Top-notch polycarbonate. The body has good trimlines for effortless cutting. Same the bodyholes. A masking sheet is roofed to assist with paintjob preps.
