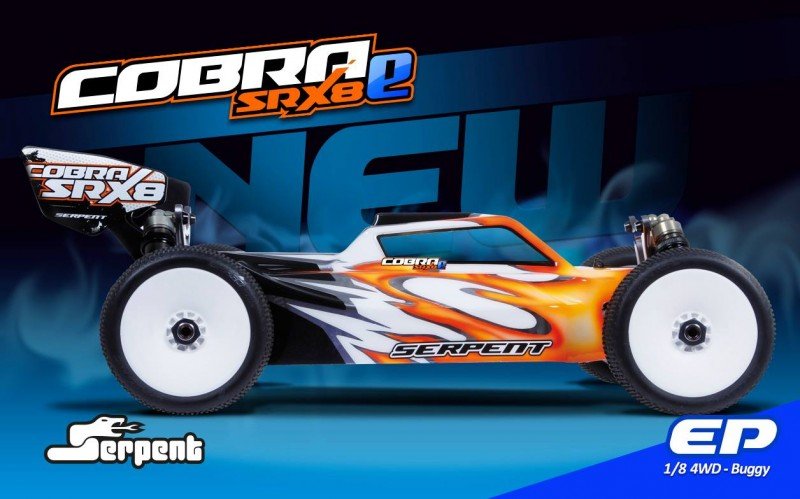

Cobra SRX8E buggy 1/8 EP high-end competition racing E-buggy in block-layout ( modification to seat pack as choice). The car wound up being created by Billy Easton in the usa which can be on the basis of the 2016 released Cobra SRX8 gas-powered buggy and shares your complete front side and straight back suspension system system system system, shocks and geardiffs.
Requirements:
- Class: 1/8 scale 4wd buggy EP
- Type: kit-version, high class competition
- Wheelbase: 330mm
- Width: 305mm
- bodyweight: 3.700 grms ( battle prepared, is created on radio-gear and elctronics )
Features:
- rough coated 4mm framework 7075 T6 aluminium , flat design sides, with kick up
- Block sort design with long front part centre shaft and fast right back one
- fast access receiver package and speedo/servo owner
- Smart incorporated design framework stiffeners
- Machined aluminium 15 dgr C-hubs, steeringblocks, uprights, shocktowers, one-screw motorholder and centre diff brackets, and suspension system system mounts
- rough coated Big bore shocks 16mm ( emulsion/membrane ) with a top end rushing springs and hardcoated aluminium shock standoffs
- Durable suspension system fingers with top and bottom mounted inserts ( for optional carbon inserts)
- Coated aluminium suspension system system holders with a varierty of feasible inserts
- curved springtime steel pivot pins turn in pivot inserts for minimal friction
- Angled steering system with adjustable Ackermann and included effective servosaver
- 3 big amount durable gear differentials with foam compensator inserts
- fast access differential circumstances
- Springsteel transmission elements, cvd design drive shafts and right back centre dogbones
- synthetic dustcovers on front component and back cvds
- Ebony coated 7075 T6 aluminium front component centre shaft
- Ballraced front side and back anti-roll pubs with Serpent pivotball linkage system regarding arms
- high quality NSK ball bearings in main areas
- Lightweight hardcoated aluminium track and steeringrods
- minimal profile medium downforce bodyshell and polycarbonate mudguards
- big high downforce moulded right sort back wing and strong monotype adjustable wingmount
Motorholder
- The light machined aluminium motor owner employs a slider which is often guaranteed with only 1 screw, a method which Serpent utilized from starting inside 811-Be and 977-e currently. The slider dinner is somewhat thicker to setup the engine whilst nonetheless being clear the mount whenever sliding. Both slider and mount come grey anodised. In the event of utilizing the seat design, comparable engine mount is employed, here is the centre insert is turned around 180 amounts. Therefore an extremely smart, integral and versatile design.
Centre diff owner
- Strong grey coated aluminium machined centre diff owner utilizing one component besides the other component is integrated to the motorholder featuring an autumn, which is often turned around whenever employed by the saddle design.
Speedo/servo holder/front stiffener
- The combined speedo owner / servo owner is a durable product which could fit all most useful speedo’s and servo’s easily. The entire item with mounted gear are just eradicated for upkeep or cleansing.
Receiver package
- The composite receiver package with address bolts on chassis and fits all contemporary receivers, additionally people who have make in antennas. The receiver industry may also be installed in to the front side centre component, which is typically employed in the chair setup just. A good carbon seems decal towards the utmost effective target.
Chassisplate
- The completely closed SRX8-E framework is manufactured in 4mm 7075 T6 aluminium and it has now flat but chamfered edges, countersunk holes and a kick up. Extreme coated for durability. The same framework is utilized the block and chair design. The framework tightness arises from the smart design included moulded centre stiffeners besides due to the fact the strong and durable sideguards. This package creates the greatest flex traits needed.
Sideguards
- all those other side-guard on the block design features and a simple task to utilize train and top target to well guide and protect the longer receiver cable. The sideguards keep debris out and protects against side-impact.
Battery-tray
- Composite block design battery pack tray with self-adhesive base foam cushioning and component foams for battery power protection. 3 pieces OneTouch straps are included to fasten the Lipo constantly set up.
Centre shaft
- The lightweight long centre shaft is stated in 7075 T6 aluminium, black colored coated plus the fast back one in Serpent springtime metal, dog bone tissue tissue design. In conjunction with really durable and lightened springtime metal driveshaft adaptors.
Chassis stiffeners
- The sturdy composite framework stiffener within the straight back increases as geardiff-cover, others more stiffener at the center links leading and end. For much more flex to be removed, since as well as the battery-box at this time adds tightness because area. One of many keys stiffener is incorporated in servo/speedo owner and links towards the top-bracket.
Steering system
- The double axis steering system with built-in servo saver is set up under an angle regarding inexpensive bump steer and a much more direct steering feel. The axels are developed in lightweight aluminium.
- The bell crank takes a bearing raced crossbar with zero slop. Its made with all optimal Ackermann to improve the cars driveability.
Sero saver
- it gives a helix to make sure the right working towards servo saver construction. The servo saver springtime is protected by a dense foam target, to carry debris out. The springtime pre-tension clamp nut could possibly be locked arranged in order to avoid switching loose. Ackermann changes are created effectively.
Differential circumstances
- The differential front component and right back might eradicated after taking right out merely 4 screws plus the removal of the anti-roll bars, super-easy!
- The strong moulded differential situations that have the differential and gives the surprise towers.
Gear-Differentials
- The diff-gearcases are larger in quantity permitting more diff oil. The diff now has cavities specifically made for shut mobile foam. This foam comprises for expansion of the oil, that could allow us to fill the diffs more complete, keeping the gears entirely engulfed in oil. The cavity where in actuality the gears sleep besides was redesigned ensuring there is not low force areas maybe not inside gears. This may keep more oil concerning the gears in the event spinning at high rpms. Therefore could keep the diff more constant at low and high speeds and hot or cool.
- Gears 28 / 14 / 44: The difficult metal 28T and 14T satellite gears have actually really a far more significant fundamental diameter, to make certain they're more in oil, making the diff more consistent, smoother and more effective. The steel 44T musical company gear is lighter possesses a good match due to the new 28T gear.
Wheel axels / hex / shoes
- The durable Serpent springtime steel wheel axles are captured CVD style need really plastic shoes to protect the machine and bearings against dust and dust, such that itwill all keep going longer. The wheel hex is a durable difficult aluminium variation which fits all popular tires well. The pins utilized are 3mm individuals enhance durability.
Steeringblocks aluminium
- The steering obstructs are created in 7075 T6 aluminium since they will be anodised in black colored colored. These steering obstructs have been developed to let you change the Ackermann throughout the steering spindle and provide united states a perfect scrub offset in conjunction with the caster block. The bushings push toward obstructs and minimize any unwanted play.
C-hubs aluminium
- The 15 dgr c-hubs are stated in 7075 T6 aluminium and most of the time are anodised in black colored. These available design acutely durable products enable room enough allowing the maximum steering angle and invite space to set up the synthetic dust protectors into the CVD system. As optional you could expect 13, 17 and 19 dgr c-hubs too.
Uprights aluminium
- The uprights are formulated out of 7075 T6 aluminium since they're additionally universal people become use left and appropriate . The most recent uprights have in reality the roll centre modification inside them with little inserts. Set screws are acclimatized to tense up lower on hinge pin to get rid of any unwelcome play. In to the underside 2 threaded holes are made to allow mounting the optional metal loads of 15 gr each for rough conditions.
Wishbones, composite
- really durable and very long moulded wishbones front and back. The composite is chosen to acquire sufficient flex as required. The look has pouches inside top and underside of each and every supply to put in the typical moulded insert dishes, and/or optional carbon fibre people. In that way you can pick the most useful supply flex for each condition. Even various or no inserts front part or straight back and combining moulded and carbon inserts can be achieved. The moulded inserts will stiffen the fingers only a little, but keeps them cleaner. The carbon people, or blended with moulded people will stiffen the hands plenty. Many choices to be able to make use of. The leading wishbones have 2 holes for shock-mounting, the trunk people in addition 3.
Mudguards
- The mudguards are available in lightweight clear polycarbonate which take place clear, be painted or skinned as plumped for.
Suspension system system brackets
- The suspension system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They input on framework for perfect fit. The brackets have precision machined pouches to make use of a full selection of moulded inserts to improve the set-up.
Anti-roll bars
- The anti-roll club system is the foremost around. Precision made cable runs in ball raced adaptors regarding front side and back diff case-plates. Super free and stabile. The cable links to a ballpoint which is fitted with a pivot ball toward wishbone. The works!
Shock Towers
- leading and back shock towers are durable difficult anodised 4.5mm 7075 T6 aluminium devices, CNC machined. 4 positons each for shock-angle and 6 for roll centre.
Shocks
- Big bore shock with difficult coated dual-system caps and difficult coated numbers. Durable refined steel 3.5mm rods are utilized with hard anodised caps and threaded shock-bodies. A new seal pack contains machined bushings and amazing x-rings and it's also held in spot with a little inside clip. The surprise pistons are machined delrin products for most of good use performance. The shock -tops in kit may be employed membrane layer layer layer design or emulsion sort with seals.
Shock Springs
- Race shock springtime which can be hand-selected and paired. The shock springs are grinded flat for perfect procedure.
Wing rear black colored colored
- the modern flat type back wing is an effectual high downforce device with big part wings
Wingholder backside
- the trunk wing owner is a fantastic durable and light one piece moulded item. The dog owner has 4 different angle spacer to chose from .
Body
- your body the SRX8-E buggy is a medium downforce design with high angle front windshield, wide angled sides and stepped back side to steer the environment in the right back component and back wing. Your system renders a lot space to include gadgets and fans as needed. Stated in quality, clear polycarbonate also it's provided with a practical masking sheet and a unique Serpent and Cobra SRX8 customized custom logo decal sheet.
- Cab-forward design body with little fin at the top for safety. Sweet moving sides with little right back upward fins for right back downforce. High-quality polycarbonate. The human body has good trim lines for simple cutting. Very same our body holes. A masking sheet is roofed to help with paintjob preps.
Body mounts
- This back body mount has a plastic pillow inside. Licenses the human body mount to create front element of rear in a definite impact or crash. This saves the human body from breaking or tearing. Leading one is an arduous and quick type and it is simple available.
