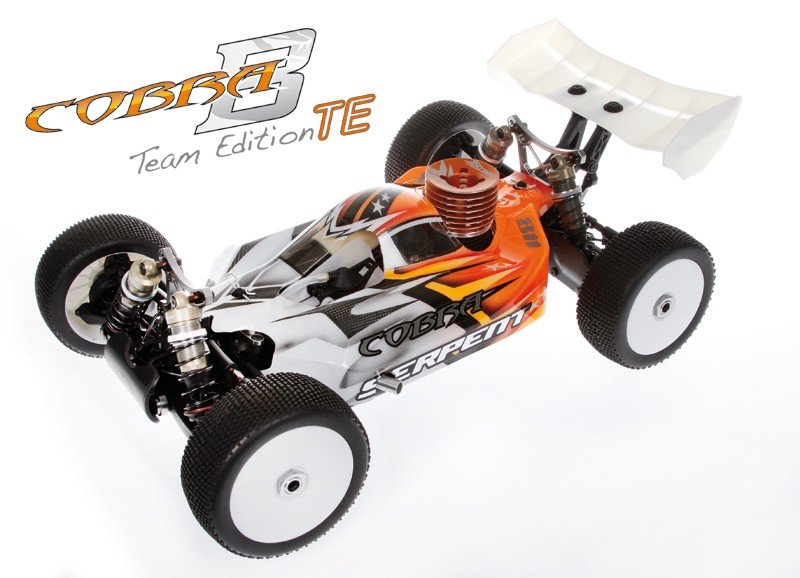

The Cobra Race Buggy is a brand new revolutionary design predicated on 15 several years of off road competition experience.
It really is a number of unique and present ideas to offer a considerably better fundamental package. The total amount left to right and front to right back additionally is improved over current designs. Afterwards provide a significant tuning screen without loss in drivability. With many unique competitive buggies being positioned on an eating plan, you will never ever be disappointed, since the S811 can be at 3300 grms, totally full of the majority of the traditional items. The philosophy finished up being effortless, how may you create a car or truck, that could require the traditional motorist and transform him into outstanding motorist. The final outcome solution was to offer him with an item that will are one harmonious product together, every thing running together.
Needs:
- Name: Serpent 811 Cobra Buggy Team Edition
- Class: 1/8 scale 4wd buggy
- Type: kit-version, high-quality competition
- Wheelbase: 330mm
- Width: 305mm
- bodyweight: 3.300 grms (battle prepared, is determined by radio-gear and motor)
- Clutch: 4-shoe centrifugal, carbon footwear
- Differential: lightweight, small geardiffs, front, main and rear
- Brake: piston kind with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with integral bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human anatomy, wing, silicone oil, color manual, decalsheet.
- Not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- professional sort 5.5mm alu shocktowers front and right back
- bigger bearings in steeringblocks and uprights
- Brand brand new transmission making use of bigger bearings and brand-new couplers for extra durability
- enhanced stiffer framework
- Gard coated shockcaps front and back
- Lower straight back wing
Suspension brackets aluminium fr and rr
CNC items suspension system brackets front and right back. Quite strong and durable, yet lightweight design, keeping the pivot-inserts well captured. Anodised and laser-engraved.
Symmetrical interior pivots
Front and rear pivots can be found in comparable airplane. This assists keep carefully the care more fundamental under cornering.
Steering
Inboard Bell crank Steering supply
this really is to offer a tighter fit regarding human anatomy including keep consitently the lever and linkage within the vehicle. It helps in preventing injury to the steering system
Zero scrub radiuses on steering knuckle
this particular feature assists in reducing the jacking impact developed by your steering knuckle offset. It offers a far more direct feel while maintaining the automobiles framework more degree while switching.
Ackerman dishes
Because of the design regarding the steering bell cranks whenever changing the Ackerman you might not need to adjust your steering tie rods. You merely will still just adjust your end points on your radio..
Angled Bell cranks
The bell cranks are angled to lessen the angle of distinction relating to the complete total caster and steering airplane. Therefore you have to have less bump steer and a truer steering Ackerman through the entire choice of suspension
Steering-blocks / caster obstructs / steering knuckle put up
Durable moulded composite steeringblocks with standard 10 level caster obstructs.
Front Steering knuckle installation
leading roll center might be changed quickly by going the steering knuckle shims about their appropriate places.
Adjustable wheel base
5 mm of wheel base modification inside backside from 322.5 to 327.5 mm.
Composite framework braces
Allows the framework to flex which assists enhance bump control. Front component and right back.
Big radius front Bumper
Assists in easing the yard dart affect nose down jump landings. Besides enables you to prevent scrubbing down price on moguls, and whoop design bumps
Chassis kick up angle
many angle in its course, this could provide more approval for attacking also the absolute most destroyed jump faces. It'll guarantee you will guide your path up a person's eye without scrubbing lower any valuable cost.
Chassis, slim design
Improves fundamental ground approval on sides for minimal framework dragging. This is a noticable difference for leaping and cornering over uneven ground. With less mass out wide the car will pitch less in part, but in addition remain straighter in fast left to right cornering.
Machined framework 3mm
Lightweight framework assists minmise fat and enhance overall vehicle performance. Countersunk holes. Anodised in titanium color and laser engraved Cobra logo design.
All suspension system system system system mounts are keyed into destination
This helps to help ease the mount of any component forces from tumbling in a collision. It you will want to simply take the strain from screws and transmission instance and locations in which force inside framework.
Eccentrics on suspension system system system mounts
there was clearly an array of different eccentrics you should use to change your kick up into the front component the car along with the anti squat in rear.
Long steering tie rods
in line with the bell crank design the rod size is optimized become because near on the way to identical size as you possibly can in lowering bump steer.
Captured Servo Saver installation
Reduces unwelcome debris from destroy servo saver faces. That will prevents nearly every untimely servo damage.
One piece radio tray.
The construction is unique as is provides on rigid component that may house most of the radio gear. The treatment is unquestionably as effortless with 6 screws total.
Crimping Antenna mount with rubber water evidence cap
With water ever being a concern in outside nitro competition. This Crimping design not merely will hold your antenna in position, but has a rubber restriction to stop water from sneaking straight into your radio package.
Light Pro-type alu surprise towers
4.5 mm dense light alu shock towers enhance appearance, but offer lighter fat. Both front and straight back.
Big bore shocks 16mm
although it's became the conventional you'll enjoy all benefits with this specific compacted bigbore design with big o bands and superb bleeders. The larger o bands provide less basic anxiety and a much better seal without a lot of the dragging regarding surprise shaft.
Laser angraved difficult anodised tops.
Threaded surprise figures
that is for reducing elements within pit example. Ignore videos to free. It can benefit change in much finer increments.
Oversized 4mm surprise shafts
Reducing dilemmas for shock shafts from hard jump landings or results.
Shock footwear with bump end
Shock footwear had been created to increase life, seal and use synthetic as a pillow to avoid dilemmas for suspension system elements.
Shock springtime buckets with debris drain and key locator The springtime buckets within foot of the shock have actually stress holes getting dust, water and debris out from the usable surprise area. One of many secrets locator assists align and secure the springtime bucket into destination such that it is still put during procedure.
Captured ball cups
All camber links, steering links and steering servo links happen trapped. It can help avoid any ball cups from popping down.
Anti-roll pubs
Front and right back anti-roll bars made out of springtime steel cable and size recommended with engraving.Anti-roll pubs are ballraced for effectiveness and smooth procedure. A variery of optional people available, in addition as sets.
Pillow Ball sway club bones
that is in fact a straightforward and simple replacement adjust the left and right tweak connected with sway club.
Roll center modification
Leading roll center are changed quickly by going the steering knuckle shims using their appropriate places.
Fueltank
Splash basin on tank top
it will also help reduce gasoline throughout the framework whenever there clearly was a messy pit stop. The basin gathers the splashed gas and guides it precisely from base of the framework
Personal centering vehicle's vehicle's gas tank seal
The vehicle's gas tank seal is angled to self guide its solutions to the bore of tank. Too provides a seal in regards to the chamfered and flat edges associated with seal, supplying constant motor performance in a single pit end to some other location.
Built-in tank splash guard
Helps in avoiding gas from splashing inside air conditioning equipment filter in the event of an incredibly excited pit guy.
Tank with swiveling nipple and drifting clunk.
Utilising the swiveling nipple you'll adjust the angle which you need you fuel line traveling. Furthermore the drifting clunk assists whenever you have ugly. The clunk by gravity will fall in the gasoline, using the flexibleness with this particular silicone fuel tubing.
Oversized Tank with adjustable quantity.
utilizing the insertion of a simple screw and volume reducer you need to have ROAR, IFMAR and simply about another companies appropriate tank amount
Low profile ac filter
Centralized ac filter design to attenuate cab width and height.Flexible plastic boot along with strong nylon situation to guide the foam elements. Excellent dense foam airfilter elements to help keep your devices clean inside.
Mud guards
In moist or moist dust circumstances these mud guards lessen and dirt after a large component drive shafts and shocks.
right back upright
Durable composite back uprights with larger size bearings. Dustcovers could well keep dust out while increasing lifespan.
Captured and bolted hinge pins
All hinge pins are either captured or bolted in position. This insures your possibilities to complete an hour or so extended primary occasion, while fighting the lead.
Larger 3.5 mm outside straight back hinge pins
Better effect opposition in crashes. Provides silky smooth suspension system system system procedure and longer pin life.
Hinge pin suspension system balls
This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to seek out virtually any angle without binding.
Lightweight 3.5mm drive shafts - Captured universal joints
whenever general fat is an issue, perhaps you have had thought to reduce rotating mass. Equal lenght front component and right back. Precision machined spring-steel.
Captured universal bones
the design below have now been effortless. Guarantees you will definitely complete a race without loosing a pin or set screw. All elements, axles and drive train elements have actually capture pins
Drive ratio 4.3:1
This drive ratio provides amazing acceleration in conjunction with low automobile fat. Their a sure triumph, to aid enhance gas mileage
Lightweight Differentials and center spur.
By reducing the rotating mass, you will further raise the degree of out from the component acceleration. Subsequently your motor breathes simple and easy utilizes less gasoline.
Throttle and brake lever ball cups
assists provide constant pulling regarding stopping system lever or carburetor if you don't need the linkage completely aligned.
Piston Braking system
Provides more stopping energy than you can have ever really imagined before with much less servo power. Is totally adjustable with 3 kinds of pistons
Solid
O musical company sort
springtime type
later you can adjust your bias or stopping feel towards design far more means than formerly.
Fiber Glass disk braking system system
Fiber Glass stopping system disks with oversized front part.
Brake dish springs
could keep the washing distribute available to guarantee perhaps not un-wanted dragging concerning the stopping system discs.
Rushing clutch 4 - footwear
enables you to mix and match footwear materials evenly in pairs. Also provides more area contact to guarantee the engagement.4 carbon shaped footwear are standard ( alu individuals optional).
Coil exhaust cable and alu mount
Helps help with the leading to back motion from pipeline whenever framework flex happens. Helps while we are avoiding injury to your exhaust gaskets.
Super Minimal profile Body
improves appearance and keeps the profile low with front to back.
Tall down force wing and Adjustable straight back wing mount
spine wing in strong versatile nylon. The composite back wing mount, allows to boost the angle of back wing.
Flanged and serrated wheel peanuts
Guarantees you may perhaps not free a wheel nut in a competition
Spur Gear Guard
aids in preventing the spur gear from slinging debris through the entire inside the vehicle and especially in toward ac filter. Functions for rain and water puddles.
