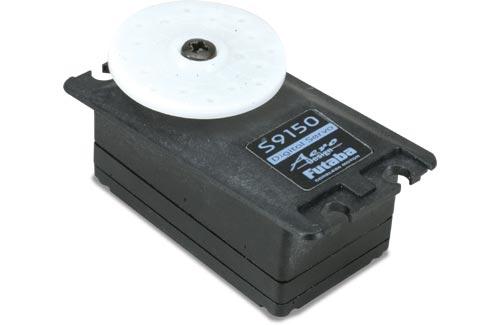

This is actually the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo could cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, cause them to become capable
of delivering sufficient Amps.
FEATURES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut by 50 per cent the response time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is quite suitable for wing installations
Black synthetic case
One year guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four steel grommets, four mounting screws and two artificial mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba doesn't recommend utilizing 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is best to prevent long leads and Y-harnesses specifically with
standard grade cables. If problems are experienced, start thinking about using
heavy responsibility cable including Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: This electronic servo is fairly made for high-
torque or high-speed, consequently quite high present drain is normal
at startup. For ultimate performance whenever applying this servo please
review these points.
1. Broadcast systems with all the current Battery Fail secure function have actually actually really a
higher cut-off voltage environment which will cause shorter
operation time.
2. Whenever developing the servo, please check always pushrod linkage to
make yes there is absolutely no binding to be able to prevent excessive
power usage and reduce living of motor and
battery.
This electronic servo may not be utilized in combination utilizing the next * have now been *
transmitters because servo fundamental indication is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with current AM systems *****
** no other hands works using this, has an extraordinary spline size.
