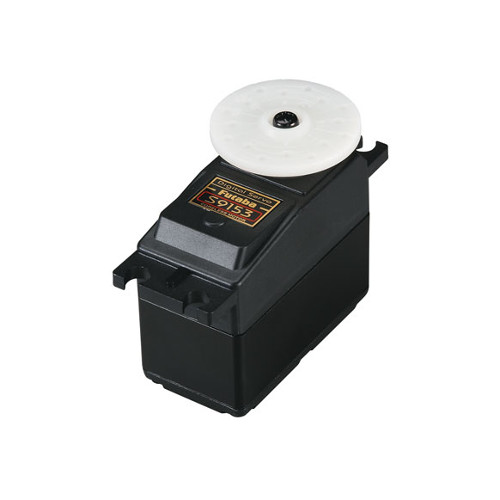

here is the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: quality wiring handles greater present loads
Metal center casing which allows you to dissipate temperature plus it's produced to
be water and dust proof
Coreless motor
High torque
One 12 months warranty
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four steel bushings
Four 3mm x 15mm self tapping phillips mind mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 amounts @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
fat: 3 oz (85g)
Length: 1.91" (48.6mm) example only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting space facilities same component: 0.55" (14mm)
Distance between mounting space facilities opposing component: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is much better to avoid long leads and Y-harnesses particularly with
standard grade cables. If dilemmas are experienced, consider using
heavy duty cable such as Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9153 Servo is manufactured especially for High-
Torque and High-Speed, due to this quite high present Drain Is
Normal At company. For Ultimate Efficiency Whenever Making Use Of This Servo
Please Review These Points.
(1) Whenever using Systems as a result of the Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that could Cause Shorter
Operation Time.
(2) Whenever developing the Servo Please check Pushrod Linkage To Make
Sure there is absolutely no Binding to avoid extortionate Power
Consumption and minimize steadily living for the engine and Battery.
This electronic servo may possibly not be aided by the next * happen *
transmitters as the servo fundamental indication is: 1310us).
CONQUEST were, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with present AM systems *****
COMMENTS: Servo Accessory Package (FUTM2042) includes the two big horns and
all mounting gear stated earlier.
Gear Set can be had independently, FUTM3453.
Case Set can be had individually, FUTM3071.
A note on coreless devices. The traditional servo engine has a steel
core armature covered with with wire that spins in magnets.
In a coreless design, the armature utilizes a thin cable mesh that forms
a cup that spins through the beyond your magnet eliminating the
heavy metal core. This design is particularly lighter causing smoother
operation and quicker effect time.
