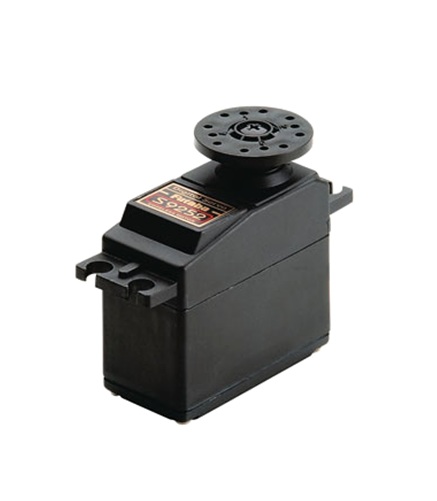

here is the Futaba S9252 Digital high Torque, All-Purpose F3C Servo
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo might cause high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, encourage them to capable
of delivering adequate Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response time
from transmitter input to servo reaction.
Coreless motor
Dual ball bearings in the manufacturing shaft
Plastic/nylon gear train
Moderately high speed
High current, high ability cable lead with low resistance
Case is manufactured out of black colored plastic
Dust and water-resistant (maybe not waterproof)
is effective alongside control areas on F3C helicopters or precision
fixed wing aircraft.
One 12 months warranty
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six supply Horn
SPECS: Speed: .14 sec/60 amounts (considering 4.8V rating)
Torque: 92 oz/in (6.6 kg-cm) (considering 4.8V score)
fat: 1.8 oz (50 g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
_ Height: 1.5" (38mm)
COMMENTARY: S9252 Digital Servo Precautions,
-It is way more straightforward to stop long leads and Y-harnesses specifically with
standard grade cables. If problems are experienced, begin considering using
heavy duty cable such as for instance Futaba's quality Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9252 Servo is created specifically for high-
torque and high-speed, as a result of this high current drain is
normal at startup. For ultimate performance whenever using this servo,
please review these points.
(1) Always utilize a 4.8V NiCd battery. Dry cells are rated at 1.5V
each making the whole voltage 6.0V which could damage the gyro.
(2) Whenever utilizing systems aided by the battery power fail safe function it has
a greater cut-off voltage environment that may cause shorter
operation time.
(3) Whenever developing the servo please check always pushrod linkage to make
sure there's no binding to avoid exorbitant power
consumption and minmise living of engine and power packs.
Whenever Along side GY501 Gyro:
Switch the GY501 servo framework expense function (Frm) from "NOR" to
"tall" showing the performance of gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to create "High".
This electronic servo cannot be coupled with after * have always been *
transmitters since the servo fundamental indication is: 1310us).
CONQUEST have been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), brand new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they'll work fine with present AM systems *****
A summary of coreless products, the standard servo engine has a
steel core armature covered with cable that spins inside the
magnets. In a coreless design, the armature employs a thin wire
mesh that kinds a cup that spins through the complete perhaps not in magnet
eliminating the hefty metal core. This design is lighter
resulting in smoother operation and faster response time
