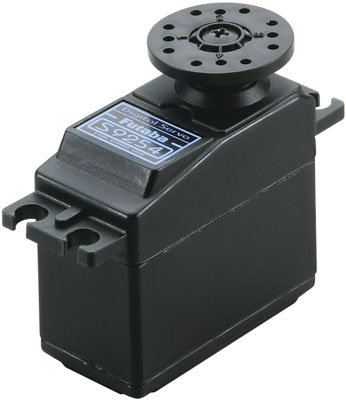

this is actually the Futaba S9254 Digital Coreless tall Torque,
tall Speed Helicopter Gyro Servo with J Connector.
This servo may cause high-current draw from your own batteries.
If using NiMH or Li-Po batteries, make sure they are capable
of delivering sufficient Amps.
QUALITIES: Coreless motor for reduced fat and high-speed response
Digitally improved microprocessors cut by 50 percent the effect time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Black synthetic case
One year warranty
INCLUDES: One S9254 Digital Coreless high Torque high Speed Helicopter Servo
One circular servo wheel, one 6 supply servo horn, one four arm servo
horn, four grommets, four mounting screws and four artificial mounts.
SPECS: Speed: 0.06 sec/60 deg @ 4.8V
Torque: 47.2 oz/in @ 4.8V
Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.4" (36mm)
Weigth: 1.7 oz (49g)
power: 4.8V (Futaba cannot recommend utilizing 6V)
COMMENTS: S9254 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses especially with
standard grade cables. If problems are experienced, consider using
heavy responsibility cable like Futaba's high quality show or Hobbico's
Pro Series,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: This electronic servo is particularly designed for high-
torque or high-speed, consequently high current drain is normal
at startup. For ultimate performance whenever applying this servo please
review these points.
1. Broadcast systems along with the Battery Fail secure function have actually in reality a
higher cut-off voltage environment that'll cause shorter
operation time.
2. Whenever starting the servo, make sure you check always pushrod linkage to
make yes there's no binding to cease excessive
power use and minmise living of motor and
battery.
A note on coreless engines. A day to day servo motor has a steel
core armature covered with wire that spins towards the magnets. In
a coreless design, the armature uses a thin cable mesh that kinds a
cup that spins over the away from magnet eliminating the
heavy metal core. This design causes smoother procedure and
faster response time.
This servo is rated as high-torque for helicopter gyro applications,
the score wouldn't be looked at high-torque for airplane control
surface or monster automobile steering applications.
This electronic servo can not be used with these * will always be *
transmitters since the servo fundamental sign is: 1310us.
CONQUEST will always be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Original Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
***** Otherwise they are going to work fine with current AM systems *****
No other hands works together with this servo, due to unique
spline size.
***** kit set by using this servo is FUTM3445 (gear set S9253)*****
