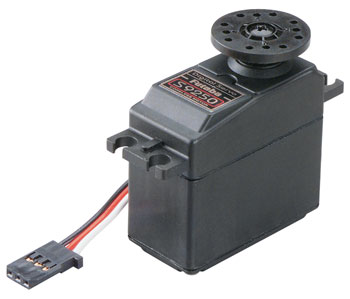

here is the S9250 Digital Servo w/Two Ball Bearings for
Helicopter and Aircraft use which will be offered with "J" Connector Pre-Installed.
This servo can create high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.
QUALITIES: Digitally Improved Microprocessors Cut About 1/2 the Effect Time
From Transmitter Input To Servo Reaction.
Coreless Motor
Dual Ball Bearing manufacturing Shaft
Metal Gears
High Speed
Case includes Ebony Plastic
Dust and waterproof (perhaps not Waterproof)
Great for Helicopters or Airplanes in which greater Torque and Speed are
required.
One year guarantee.
INCLUDES: One Digital Helicopter/Aircraft Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six Supply Horn
SPECS: Speed: .11 Sec/60 quantities (considering 4.8V)
Torque: 76 oz/in (5.5 kg-cm) (centered on 4.8V)
Weight: 1.9 oz (54 g)
power: 4.8 Volts (Futaba wont recommend utilizing 6V)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.5" (38mm)
REVIEWS: S9250 Digital Servo Precautions,
-It is much better to stop long leads and Y-harnesses specifically with
standard grade cables. If issues are skilled, think of using
heavy responsibility cable such as for instance Futaba's top quality show or Hobbico's
Pro Series ,minimizing lead lengths, and/or removing Y-harnesses.
-Current Drain: Futaba S9250 Servo is extremely created for High-
Torque and High-Speed, consequently high present Drain Is
Normal At business. For Ultimate Effectiveness Whenever Using This Servo
Please Review These Points.
(1) Always use a 4.8V NiCd w/gyro. Dry cells are rated at 1.5V each
making the conventional voltage 6.0V that might damage the gyro.
__---------------------------------------------------------------------------
The reasons why this servo is recommended for 4.8V batteries, often batteries
will cost above their stated votlage level. A 6V 5-cell battery will
charge within the 6 Volt level. A voltage quantity of over 6 Volts may
damage inside circuitry. As a result we cannot recommend 5-cell battery
packs.If you utilize a 6 volt regulator to power this servo, the servo will
operate typically without circuit damage.
---------------------------------------------------------------------------
(2) whenever utilizing techniques with the Battery Fail secure Function it Has
a Higher Cut-Off Voltage Setting which will Cause Shorter
Operation Time.
(3) Whenever setting up the Servo Please check Pushrod Linkage To Make
Sure there's no Binding to prevent exorbitant Power
Consumption and reduce the life span associated with the engine and Battery.
Whenever Employed in combination with GY501 Gyro:
Switch the GY501 Servo Frame rate Function (Frm) from "NOR" to
"tall" to make the effectiveness of Gyro towards Fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key showing "High".
This electronic servo may not be utilized in combination utilising the after * are *
transmitters considering that the servo fundamental indication is: 1310us).
CONQUEST is, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), fresh Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with current AM systems *****
