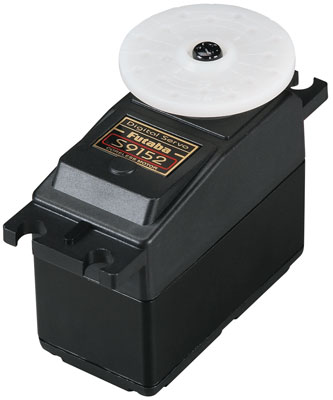

this is actually the Futaba S9152 Mega high Torque Digital Rudder Servo.
Comes with "J" Connector Pre-Installed.
QUALITIES: durable wiring handles greater present loads
New steel center casing helps dissipate temperature and is built to be
water and dust proof
Coreless motor
High Torque
One year guarantee
INCLUDES: One Futaba S9152 Digital Rudder Servo
Two rectangular grommets
Four steel bushings
Four 3mm x 15mm self tapping phillips brain mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: .19 sec/60 amounts @ 6V
Torque: 278 oz/in @ 6V ( 20.0 kg/cm )
fat: 3 oz (84g)
Length: 1.91" (48.6mm) situation just
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting starting facilities identical side: 0.55" (14mm)
Distance between mounting opening facilities opposing side: 2.35" (59.6mm)
COMMENTS: S9152 Digital Servo Precautions,
-It is way better to get rid of long leads and Y-harnesses especially with
standard grade cables. If issues are skilled, start considering using
heavy obligation cable such as for instance Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9152 Servo is particularly created for High-
Torque and High-Speed, consequently quite high current Drain Is
Normal At business. For Ultimate Effectiveness When Working With This Servo
Please Review These Points.
(1) When working with Systems with the Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that could Cause Shorter
Operation Time.
(2) When installing the Servo Please check Pushrod Linkage To Make
Sure there's absolutely no Binding to avoid exorbitant Power
Consumption and minmise the life span of motor and Battery.
This electronic servo may not be along with after * will always be *
transmitters after the servo basic indicator is: 1310us).
CONQUEST can be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), groundbreaking Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with current AM systems *****
OPINIONS: Servo Accessory Package (FUTM2042) includes both big horns and
all mounting gear talked about formerly.
Replacement Case Set is FUTM3071.
Replacement Gear Set is FUTM3452.
A note on coreless machines. The conventional servo engine has a steel
core armature covered with with cable that spins in the magnets.
In a coreless design, the armature uses a thin cable mesh that forms
a cup that spins throughout the not inside magnet eliminating the
heavy steel core. This design is significantly lighter causing smoother
operation and quicker reaction time.
