Futaba S3153 Digital Micro High-Speed Servo  [S3153]

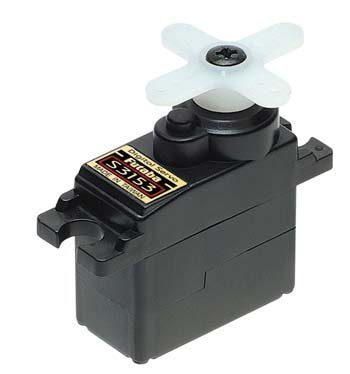

This is actually the S3153 Digital High Speed Micro Mini Servo
designed for use with Futaba broadcast Control Systems.
It's the Digital high Speed type of the S3103 Servo.

This servo makes high-current draw from your batteries if utilizing NiMH or LiPo batteries, get them to proficient at delivering sufficient amps.

FEATURES:
Small compact design for tiny electric engine airplanes metal gears
twelve months guarantee

INCLUDES:
One S3153 Digital Tall Speed Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings)

NEEDS:
Installing in model, attaching linkage and plugging into receiver

SPECS:
Speed: 0.11 sec/60�X @ 4.8V
0.09 sec/60�X @ 6V
Torque: 19 oz-in (1.4kg/cm) @ 4.8V
24 oz-in (1.7kg/cm) @ 6V
Proportions: .9" x 0.4" x 0.8" (22 x 11 x 20mm)
weight: .34oz (9.6g)
Manufacturing Shaft Diameter: 5mm


COMMENTS:
The S3153 servo can't be used in combination with gas motor airplanes sufficient cause for big gliders and also other models seeking some torque.
Using with an enormous load at a better voltage will certainly reduce servo life (4.8V recommended).
For an upgraded servo horn purchase FUTM2038.
The long horns utilize component quantity FUTM2005.
