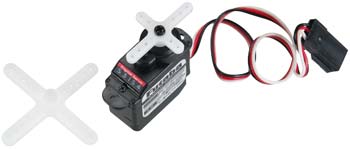

Futaba S3154 Digital Micro High-Torque Servo  [S3154]

CHARACTERISTICS:

• Increased accuracy since it is Digital
• Light-weight, ideal for Micro helis
• Nylon gears

INCLUDES:

• One S3154 Digital Micro Servo
• One .91" x .64" (23mm x 16mm) 4 supply servo horn (comes pre-installed)
• One 1.33" x 1.33" (34mm x 34mm) 4 supply servo horn

REQUIRES:

• Installing into the model
• Purchase DUBM6924 if mounting gear is necessary

SPECS:

• Torque: 21 oz-in (1.5kg/cm) @ 4.8V
• 24 oz-in (1.7kg/cm) @ 6V
• Speed: 0.10 sec/60? @ 4.8V
• .09 sec/60? @ 6V
• Dimensions: .09 x 0.4 x 0.8in (22 x 11 x 20mm)
• Body fat: 0.28oz (7.9g)
• Lead size: 6.5" (170mm)
• Production Shaft Diameter: 4mm

REMARKS:

• Avoid S3154 servos with gas or high energy engine models, big gliders, or other models that are looking for high torque
• Using supply voltage over 6V or utilizing high load on servo wil dramatically reduce living.
• Alway utilize servo horn particularly made for this servo. Avoid old-fashioned servo horns.
• Extortionate force or surprise towards servo horn may harm the ultra mini accuracy gears within the servo.
