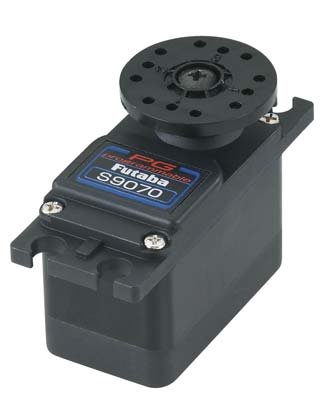

Futaba S9070 Digital Programbl Mini BB Hi-Voltage Servo  [S9070]

QUALITIES:

• Two ball bearings
• Tall torque, steel gear
• Programmable, requires the CIU-2 software, FUTM0951

INCLUDES:

• One S9070 Digital Programmable BB Mini Servo
• Four 2x12mm Screws
• One 45mm (1.8") Round Servo Horn
• One 29mm (1.1") Four Aim Servo Horn
• One 32mm (1.3") Six Aim Servo Horn

NEEDS:

Installing in model, connecting linkage and plugging into receiver

SPECS:

• Proportions: 35.9 x 19.5 x 24.9mm (1.41 x 0.77 x 0.98")
• Body fat: 32g (1.13oz)
• Operating Speed: 0.12sec/ 60?X (7.2V)
• 0.15sec/ 60?X (6.0V)
• 0.18sec/ 60?X (4.8V)
• Production Torque: 6.8kg-cm (94.5oz-in) (7.2V)
• 5.5kg-cm (76.4oz-in) (6.0V)
• 4.5kg-cm (62.5oz-in) (4.8V)
• Selection of motion: 120?X
• Power provide Voltage: 4.8-7.4V
