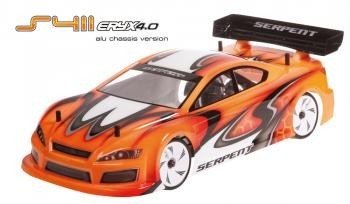

1/10 scale upper end competition rushing car the worldwide touringcar battle show. Electrical The Serpent ERYX ERYX 4.0 will be the next big development stage the 411 platform. Featuring an ultra low centre of gravity, optimized fat blood supply, high-end geometry and top-notch materials throughout, the ERYX will be your vehicle for certain best times !
Specs:
- Course: 1/10th scale 190mm Electrical
- Function: 190mm Competition touring car
- Chassis: 2mm 7075 T6 aluminium, anodised, CNC machined
- Suspension: Front C-Hub suspension system system system
- Back axle: back gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: Super-Short RCM shock absorbers
- Wheel base: 254mm +/- 4mm
- Track-width front side: 190mm /- 6mm
- Track-width rear: 190mm /- 6mm
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll centers
- Included: Comprehensive colour PDF guide and guide guide
- Not included: motor, battery, rate Controller, tires, body, radio equipment.
Features:
- unique 2mm coated and laser etched 7075 T6 aluminium framework; dark grey anodised with ERYX logo, lowered machined sides for optimal flex and paid down CG, fully symmetrical also for flex
- new shocksabsorbers; housing, reduced restriction, x-rings, machined bushings, shockrods, shockcaps, membrames
- 2mm greater front part carbon shocktowers to put in the modern shocks
- 2mm greater straight back carbon shocktowers to create the current shocks
- brand-new mid-shaft pulley system with playfree construction, one screw fixture
- brand new sort one piece paid down CG 7075 T6 motormount, centraly mounted
- adjustable carbon/alu battery power supports to possess battery pack front component or back properly, effortlessly and firmly
- steering-set with wider pivot system for much more direct effect
- improved diff gears for super smooth diff action
- Serpent springsteel front component Double Joint Cardan shafts
- difficult combination moulded suspension system system system elements
- ball raced anti-roll bars
- centrally mounted servo-mount, cheapest cg
- low friction belts and supertrue low friction pullies
Harder C-hub front
a typical system of high-end touring vehicles, the ERYX features a front C-hub system in intense composite. The automobile comes standard with a 4-degree caster block it is moreover offered several 2 and 6-degree obstructs. The C-hub is big sufficient obtaining the drive-shaft setup without dis-assembling the c-hubs.
Front suspension system system system
including the rear suspension system system system system in setup, leading suspension system system system recreations a decreased composite wishbone although the top camber modification is handled using an aluminium track pole that will be solid, lightweight and may also effectively manage results.
backside area with harder fingers
a large component end in regards to the ERYX features more powerful tough reduced wishbones . The paid down wishbones can be utilized on both staying and right edges, minimizing the number of free components had a need to make direction of track. The trunk rough upright features a pivot pin mounting point regarding base and 2 top camber website link mounting holes for fine-tuning camber enhance.
Indentical
the best and buttocks of Serpent ERYX are completely indentical and been made for first class and ease of maintenance. A huge component bearing obstructs was indeed developed in 2 pieces permitting the topside become simply eliminated with 4 screws, proclaiming to provide you instant access towards the differential for upkeep or modification. A lot of the components are machined from aluminium since they are anodized in weapon steel grey.
core section
the newest one piece machined aluminium motorbracket is superlight and superlow and fits both stock and mod gearing well. The tiny front component alu bracket, comes with an alu bushing with long screw allowing you to connect on top-deck. It is usually eradicated to build extra flex. The seperate machined brackets offer the light aluminium middle shaft/ 19T pulley.
Composite Gear differential with brand-new product composite gears and X-axle
The ERYX comes supplied a lightweight and smooth right back gear-differential. This supersmall differential are made for many energy of BL devices. Gear-diff doubles regarding front part. This new variation has fresh kind composite inside gears and 3.5mm x-shape shaft and features covered aluminium outdrives. The metal gears may also be used or blended with composite. ( The ball-diff is optional).
Big bore shocks
This brand new Serpent bigbore onroad shockabsorbers repaid the biggest market of gravity also further. They contain threaded coated shock-bodies, pre-load shock peanuts with o-ring, harder membrames , supersmooth and strong shock-rods with clip to hold the piston, entirely machined pistons ( 1,2,3 and 4 holes in kit) in a brand new yellowish item , toplevel x-ring /bushing package, light spring-cups, strong balljoints. The bonus is the undeniable fact that you are going to carry on using the normal size springs as before. High quality race-springs placed into color coding, grinded flat even for load.
Bumper
Leading bumper is created from an elevated cushioning foam product that is shaped to protect all your front end from the automobile in the event of a collision. The bumper is held in place with a sizable top-plate.
Ball-bearings
The ERYX comes with top-quality lightweight bearings with orange seals throughout, making the drive train in fact efficient and allowing it to run excessively efficiently.
Anti-roll pubs
The ERYX comes with coded anti-roll pubs front and straight back with a composite centering bracket. The anti-roll pubs are available in numerous thicknesses being that they are through the wishbones using quick adjustable track rods, connected with a pivot ball on reduced front wishbone, adequate reason for a ball straight to the trunk paid down wishbone.
The anti-roll pubs run in little tapered nylon inserts , with the anti-roll club is concentrated through one captured center bushing.
Spool
the automobile comes given a front part spool which includes been produced from hard anodised aluminium and broadly speaking are used together with blades to enhance lifspan. The look have now been optimised to make certain the component could possibly be light that you can without compromising power.
Steering construction
The Serpent ERYX utilises a centrally installed ballraced twin pivot steering assembly-rack in aluminium. Offset steering linkage for appropriate steering geometry and ackermann. The steering construction permits excessively precise steering and great control. The ackermann is adjustable if you are using shims. Them pivots on wider low steering-shafts, producing a far more direct steering feel. The bearing in levers are forced set for a play-free put up
Unique servo-holder
the initial and revolutionary servo owner has zero impact on tweak, due to the fact drifting within the framework and mounted directly to the steering-assembly into the heart of vehicle. This keeps the surplus fat below some other design.
Suspension brackets
For adjusting the automobiles toe-in and track-width, the ERYX has seperately set up suspension system system brackets regarding front side and right back for the vehicle. Each bracket features an effectively recognisable volume that corresponds toward developing being used and for that reason of means they have been installed allows the customer to easily and accurately adjust their vehicles settings. The brackets was indeed developed such technique they are going to be present anywhere in vehicle. The inner brackets FR and RR are now split kind, to allow to get more flex. The split suspension system system system blcoks are mirror kind, for that reason you must utilize them either left or appropriate and obtain a brand new desired environment. This way less different obstructs are anticipated for an ideal choice of settings. Standard people: : 3.5/ 0.5 split obstructs in right back, 2.0/ 0.5 ahead
DJC / CVD's spring-steel
This automobile comes with a complete range 4 quality difficult coated spring-steel CVD shafts, which can be an exceptionally constant, efficient and durable approach to move a lot of the power the outside liner. Top folks are v2 kind double joint cardans DJC, the trunk regular CVD design shafts.
Chassisplate
The newly developed extremely slim framework plate is machined from 2mm 7075 6 aluminium, lowered sides to cut back the middle of gravity and install the electronics paid down. All holes in the base of the framework are countersunk . The framework further features extra holes to create loads and extra stiffners . All holes are due to the fact near to the centerline of framework, to create furthermore flex.
Battery-stays carbon / alu
The electric batteries is held arranged by 2 mounts regarding the centreline the vehicle, and 2 special carbon/alu mounts with slits to install the glass-tape. The carbon brace might be simply relocated fronr or rearwarsd to maneuver the battery power more ahead or backwards. Below these these the carbon Lipo battery power holders are set up.
Belts - drivetrain
The ERYX features a 2-belt setup with a lengthy front side and a brief rear Kevlar reinforced low friction belt that combied with accuracy moulded gears creates a great smooth and free drive train.
Shocktowers
The Serpent ERYX features lowered shocktowers 2.5mm dense carbon soluble fbre surprise towers on front side and right back from car. Each tower activities many holes for modification regarding shock absorber angle although backside tower furthermore will behave as the mount the rear body articles and also the front part tower accommodates a third front side component human anatomy post.
