Tamiya 45028 - ESC TEU-302BK Speed Controller TEU-302BK  [45028]

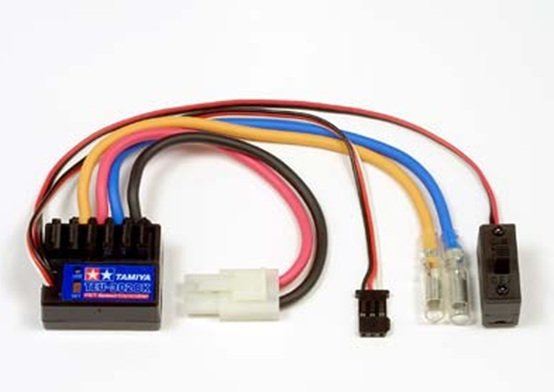

FET Speed Controller TEU-302BK

A good forward/reverse running electronic cost controller (ESC) featuring a top regularity revolution drive system. Three kinds of current motion adjuster, modification of optimum ahead and reverse throttle trigger settings, and reverse termination may be handled via transmitter and ESC procedure.

Tamiya R/C System No.28 (ITEM 45028)

Suitable for due to 23 change stock engines. Transmitters from other manufacturers also can

Here is the Tamiya ahead and Reverse Electronic Speed Control.

CHARACTERISTICS:

• suitable for stock engines down to 23 turns
• Current modification permits driver available three modification rates including mild setting for slippery conditions and quick environment for high hold songs
• Reverse is changed into stopping function
• Three security functions:
• Paid down voltage decrease protection circuit prevents insufficient control
• Temperature protection function
• Overcurrent protection function
• Receiver connector suitable for Tamiya, Futaba KO, JR, and Airtronics/Sanwa (blue)

INCLUDES:

One Tamiya ahead and Reverse Electronic Speed Control with Kyosho design battery power connector, pre-installed motor leads, universal receiver connector, and instructions

REQUIRES: Installing in model and connecting to motor and receiver

SPECS:

• Length: 1.3" (33.5mm)
• Width: 1.1" (27.2mm)
• Height: 0.6" (14.3mm)
• fat: 1.7oz (48g) with wires
• Fat 1.5oz (43g) human anatomy just
• Control System: high regularity revolution drive
• Max Continuous active: (FET spec) ahead 120A, Reverse 60A
• Power provide: 7.2V - 8.4V (6-7 cells)
• Appropriate engine: R/C automobile engine over 23 turns
• Driving Frequency: 500Hz, 1kHz, 2kHz (with three steps)
• Receiver manufacturing Voltage: 6V (input 7.2V)
• Receiver manufacturing Present: 1A
