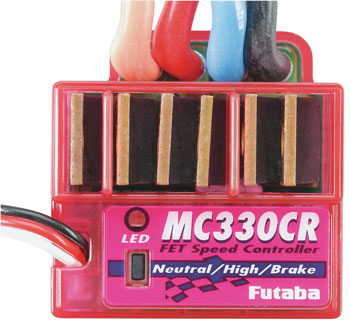

Futaba MC330CR ESC w/Reverse 13+T  [MC330CR]

This can be a MC330CR Electronic Speed Control w/ Reverse for 13+ Turn Motors.

CHARACTERISTICS:

• Functions products that may efficiently be 13 arises to 27 turns
• All connectors are pre-installed
• Reverse Disable helps it be right for rushing

INCLUDES:

One MC330CR Electronic Speed Control w/ Reverse and Brake/ Futaba J receiver connector, Standard electric batteries connector, ON/OFF modification. One Vinyl Adjustment Screwdriver

NEEDS:

• Futaba J appropriate receiver
• Feminine bullet motor connectors for motor, use TRIC5500.

SPECS:

• Capability: 6 to 7 mobile batteries
• Engine limitation: 13+ turns
• Current- ahead: 200A Reverse: 100A
• On-resistance: .010 Ohms
• Tall Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for battery, Bullet engine (all pre-installed)
• Bullet motor Wire: 14 gauge
• BEC: Yes
• Length: 1.07"
• Width: .50"
• Height: 1.31"
• Weight: 1.59oz

REMARKS:

Generally speaking, high-torque and brushless servos for steering control can be employed with this specific ESC provided the constant current draw concerning the servo wont rise above 1A constantly. Steer clear of the Futaba S9157 high-torque servo with this specific ESC as this servo appeals to over 3A."
