Futaba MC230CR ESC w/Reverse 20+T  [MC230CR]

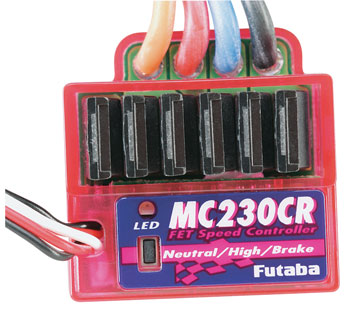

This is certainly a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

CHARACTERISTICS:

• Functions devices which are generally 20 arises to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up Light-emitting Diode.
• Completely proportional ahead and reverse
• Includes Reverse Disable it is therefore befitting ROAR rushing
• Heat/overload/short circuit protection
• Low-battery function immediately cuts motor energy whenever power become too low.
• Receiver reminder switch beeps to remind that you switch off the receiver as well as the car will pulse (perhaps not run) ahead as an extra reminder.
• Brake

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard sort battery pack connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

NEEDS:

• Futaba J plug appropriate receiver
• Feminine bullet motor connectors for engine, usage TRIC5500.

SPECS:

• Ability: 6 to 7 mobile batteries
• Motor Limit: 20+ turns
• Current- ahead: 90A Reverse: 45A
• On opposition: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet engine (all pre-installed)
• Bullet Engine Wire: 16 measure
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• fat: 1.55oz (44g)

REMARKS:

Often, high-torque and brushless servos for steering control works perfectly making use of this ESC provided that the constant current draw the servo cannot surpass 1A constantly. Steer clear of the Futaba S9157 high-torque servo with this ESC as this servo appeals to over 3A."
