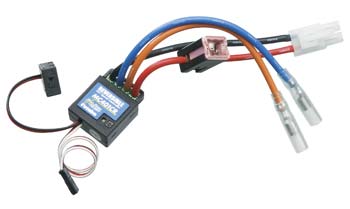

Futaba MC401CR ESC w/Reverse  [MC401CR]

This is actually the Futaba MC401CR Electronic Speed Control with Reverse for motors with 10 turns and above.

FEATURES:

• SMD MOSFETs with tiniest interior opposition for minimal loss and maximum performance
• Ahead, Reverse, and Brake operations are linear
• Reverse procedure termination function
• Temperature and low voltage protection
• Serial slot connection with a pc (Futaba CIU-2 Interface, FUTM0951 needed)
• Serial relationship function-
• Information signing consider and erase (Information signing memorizes the running current and power voltage for around 8-minutes at 2nd durations)
• Variable regularity range settings: 100Hz to 10kHZ (Sets the stress effect system adjustable regularity range)
• Dead musical organization: ??2μs ~ ??55μs (fundamental point range may be set)
• Low electric batteries protection voltage establishing: 2.5V ~ 6V (Sets the voltage which cuts the production toward engine in the event that capability voltage is dropped)
• Present Limiter: 50A ~ 300A (The current limitation for suppressing energy can besides be set and switched off)
• Brake mix: 0per cent ~ 100per cent (Sets the braking system power regarding the optimum stopping system point from neutral)
• Neutral braking system: 0percent ~ 100percent (Brake developing within throttle basic point)

INCLUDES:

Futaba MC401CR Electronic Speed Control with Reverse

NEEDS:

Starting in vehicle and connecting to motor, receiver and electric batteries NiCd or NiMH battery pack 4 - 6 cells (4.8V - 7.2V)

SPECS:

• Operating-system: Forward and braking system (Resolution 255)
• Energy requirement: NiCd, NiMH electric batteries 4~6 cells (4.8 ~ 7.2V)
• PWM frequency-
• Forward: 100Hz ~ 10kHz Initial value: 2.5kHz ~ 3kHz
• Brake: 2kHz
• BEC voltage: 6V
• Setting: One-touch switch
• Present ability: FET rating
• Ahead: 360A (Momentary load: 440A)
• Brake: 120A
• Fuse: 30A
• Battery reverse protection/overload protection
• Case size: 1.01 x 1.03 x .51" (25.7 x 26.2 x 12.9mm) (excluding protruding components)
• Silicone cable measure size: 14AWG equivalent
• Weight: .39oz (11.2g)
