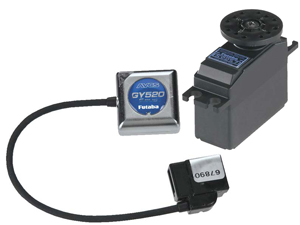

Futaba GY520 Heading Hold Gyro + S9257 High Speed Digital Servo for Helicopter Gyro Operation.Futaba GY520 Heading Hold Gyro
QUALITIES:
Ultra small and lightweight gyro within one unit-no split sensor and control product
utilizes a top price advanced level PID (Proportional-Integral-Derivative) control algorithm current MEMS (Micro-Electro-Mechanical techniques) permits complete control system utilizing one chip
Delivers superior performance with analog servos and excels with electronic servos
F3C and 3D mode selectable, six programmable parameters
Functions at quite higher rate; 280Hz into the 1520uS mode and 506Hz in 760uS mode
Programmable through solitary button and multi-color LED or through a pc utilizing Futaba
CIU-2 USB adapter
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end maintaining ability
annually limited warranty
CONTAINS: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored connectors
two chapters of sensor tape, mini screwdriver and guidelines
NEEDS: Digital or analog servos
SPECS: Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
Voltage number: 3.8 - 6.0V DC
Control System: Advanced PID control
Present Draw: 40mA (without servo)
Sensor: MEMS vibrating framework gyro
running Temperature: 14�XF - 113�XF (-10�XC - +45�XC)
Sensor cost volume: +/- 800�X sec
Angular Velocity number: +- 800 deg/sec
this is actually the Futaba S9257 high Speed Digital Servo for Helicopter Gyro procedure.
FEATURES:
Become utilized using the Futaba GY401 (FUTM0807, FUTM0808) this means GY502 gyros
made with two ball bearings
year restricted guarantee
CONTAINS:
Futaba S9257 Tall Speed Digital Servo with .83" (21mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm)
diameter six-point horn, mounting gear, electronic servo
precaution sheet and guarantee card
REQUIRES:
linking to gyro
SPECS: Dimensions: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
bodyweight: .92oz (26g)
Torque: 28 oz-in (2.0 kg-cm) at 4.8V
working Speed: 0.08 sec/60�X at 4.8V
Lead Length: 7.9" (200mm)
