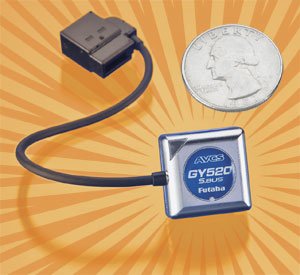

Futaba GY520 Gyro  [GY520]

CHARACTERISTICS:

• Ultra tiny and light-weight gyro contained in one unit-no split sensor and control device
• Uses a top rate higher rate PID (Proportional-Integral-Derivative) control algorithm present MEMS (Micro-Electro-Mechanical strategies) allows complete control system on a single chip
• Delivers superior performance with analog servos and excels with electronic servos
• F3C and 3D mode selectable, six programmable parameters
• Operates at quite higher level; 280Hz towards 1520uS mode and 506Hz inside 760uS mode
• Programmable through solitary key and multi-color Light-emitting Diode or through a PC utilizing Futaba
• CIU-2 USB adapter
• Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end keeping capability

INCLUDES: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored colored connectors two areas of sensor tape, mini screwdriver and guide

NEEDS:

Digital or analog servos

SPECS:

• Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
• Voltage quantity: 3.8 - 6.0V DC
• Control System: Advanced PID control
• Present Draw: 40mA (without servo)
• Sensor: MEMS vibrating framework gyro
• Operating temperature: 14?FXF - 113?FXF (-10?FXC - +45?FXC)
• Sensor cost range: +/- 800?FX sec
• Angular Velocity quantity: +- 800 deg/sec
