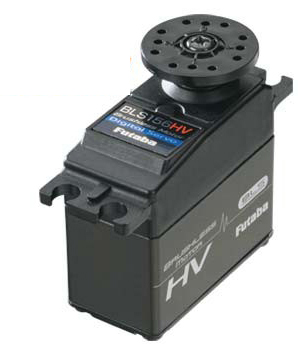

Futaba BLS156HV - High Voltage High Torque Servo  [BLS156HV]

Loaded with a brushless engine that persists a lot longer and runs smoother and faster than brushed products with a better opposition to jolts and vibration same energy consumption as brushed electronic servos double ball bearings.

INCLUDES: BLS156HV Servo with 0.83" (21mm) diameter circular horn, 1.8" (45mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm) diameter six-point horn, recommendations and mounting equipment

NEEDS: Installing in model and connecting linkage.

Specs and Features

• Speed: 0.15 sec/60 level at 6.0V ,0.12 sec/60 degree at 7.4V
• Torque: 250oz/in (18.0kg/cm) at 6.0V ,291.7oz/in (21.0kg/cm) at 7.4V
• Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• body fat: 2.33oz (66g)
• power: DC 6.0 - 7.4V
• Horn Screw Size: 3x8mm
