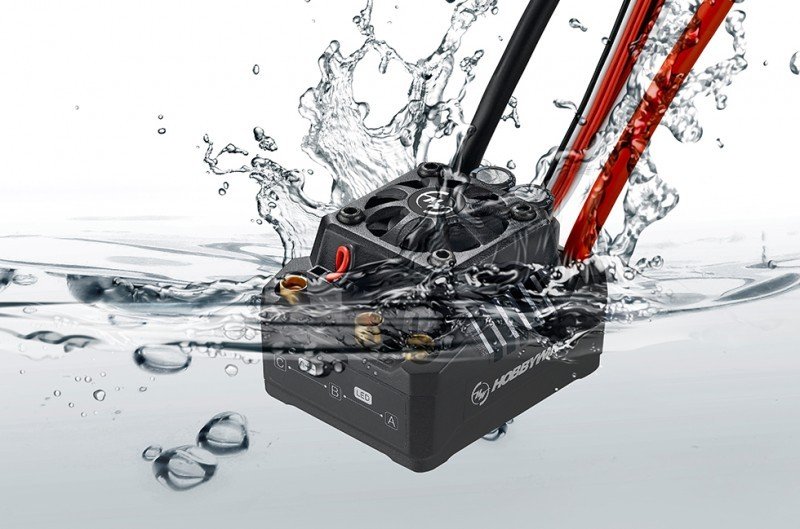

HOBBYWING EzRun MAX10 SCT - 30102601  [HW-30102601]

Tall Reliability & Durability

Built with tough and top-quality elements and along with
cutting-edge firmware, the EzRun MAX10 SCT has the ability to deliver unmatched power and satisfaction also for
numerous hardcore of rushing applicatinos, it is also responsive enough to shield it self from
damage considering overloading considering genuine punishment, overuse and particular blunder.

Advanced and Secure Electronic Switch

The MAX10 SCT features an electrical switch with a lifespan of over 50000 on/off rounds,
housed in an entirely waterproof, dust-prood and shock-resistant design.

Applicable to everyone Weather Conditions

The waterproof and dust-proof design allows the MAX10 SCT become utilized in every climate
minus the dilemma of harm caused towards the ESC from water or dirt.

Revolutionary Filter Capacitor Thermal Protection

The filter capacitor thermal safety first accustomed the MAX10 SCT will effortlessly protect
capacitors from exploding and causing irreversible injury to the ESC as a result of overload.

Regular Firmware Updates
without Charge

You can upgrade the MAX10 SCT due to the HobbyWing
USB LINK computer software, a multifunction LCD system package
and a laptop computer. HobbyWing updates its ESC firmware
regularly providing you with upgraded features more regularly
whenever available.

Product Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : Yes

Specifications

• Cont./Peak Present : 120A/830A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : change Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Range : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 49.0x39.5x34.7mm
• Weight : 105g
