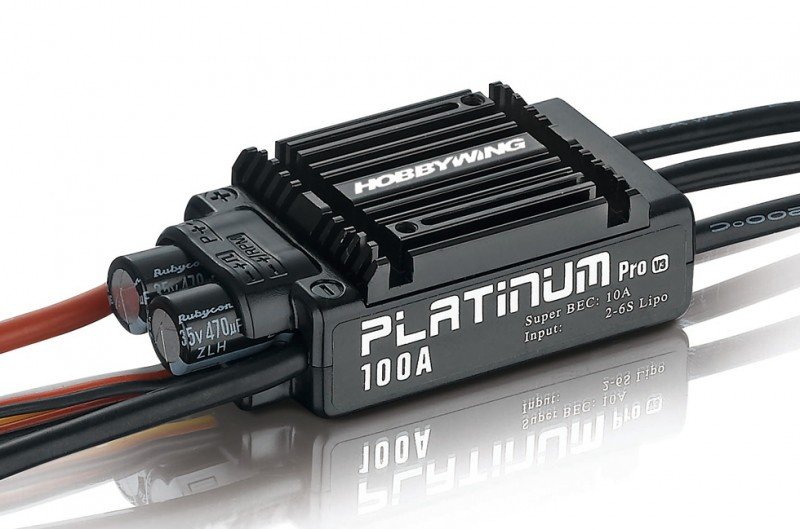

HOBBYWING Platinum 100A V3 - 30203900  [HW-30203900]

Brand new Design & exceptional Performance

New framework design along with superior micro-processor
guarantees users efficient temperature dissipation, good compatibility (with various devices),
high driving effectiveness, and etc.

Great power Output

This Platinum 100A V3 ESC featuring a frequent present of 100A
and top up-to-date as high as 150A guarantees users high and stable production
regularly during each journey.

Tall Voltage Built-in BEC

The included switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, a continuous present of over 10A and top present of 25A
provides sufficient energy the servos to make use of efficiently.

Effective Heat-dissipating System

Besides the heatsink on Platinum 100A V3, an additional cooling
fan is roofed in item industry to enhance cooling performance (clients can arrange it
onto ESC heatsink if needed).

Four Flight Modes & “Auto Restart” Function

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (shop Governor)” four
trip modes and “Auto Restart (Time)” function guarantees users excellent
speed-governing performance in Heli Governor mode and enables users to cutoff manufacturing and restart
engine for avoiding feasible crash as a result of bad procedure.

A few Protections

Multiple security features have actually irregular input voltage,
ESC thermal, throttle indication loss (or Fail secure), and low voltage cutoff
effectively prolongs the perfect solution is life associated with the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC production : change Mode:6V/7.4V/8.4V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : particular system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x35.0x21.0mm
• Weight : 104g
