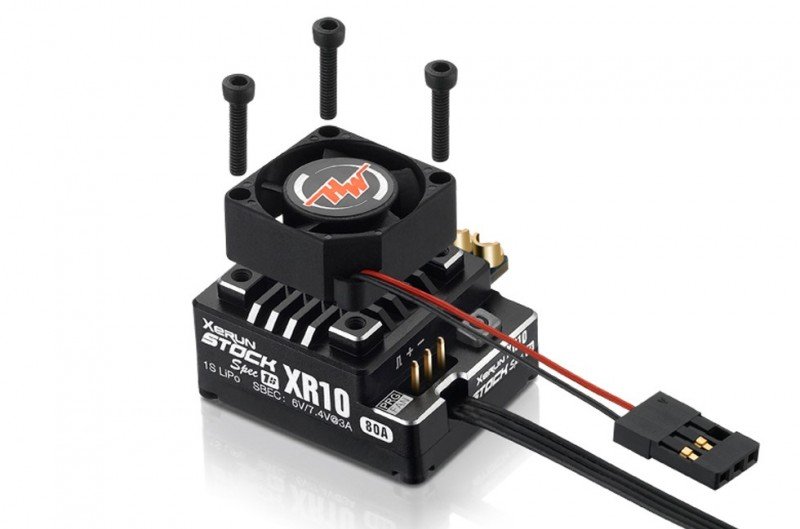

HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751 [HW-30112751]

Price:

NZD$217.42

Brand:

Hobbywing

Model:

HW-30112751

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category

Write a review

alt="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751" title="HOBBYWING XeRun XR10 PRO STOCK SPEC 1S - 30112751"

Description

Minimal & Lightweight

The little size (20per cent smaller set alongside the conventional variation XeRun XR10 expert 1S)
saves area this implies light-weight (just 23.5g w/o cables) provides more
fat margin whenever adjusting the total amount regarding the framework.

Super Internal BEC

The integral boost BEC with a maximum manufacturing of 6A and voltage
adjustable between 6V and 7.4V licenses users to the office alongside various,
servos and receivers (without linking any extra battery power).

Adjustable Throttle & Brake PWM Frequencies

The independent and adjustable throttle & brake PWM frequencies guarantee users the
accurate and accurate throttle and stopping system control.

Programming/Upgrading/Data Reading Wirelessly

With Hobbywing's "WiFi Express" module and iPhone or an Android os os os phone (due to the HOBBYWING
WiFi Link software create), someone may from another location program parameters, upgrade firmware and check always
appropriate information of ESC without making the control stand.

Incorporated Electronic Switch

The inside electronic switch with a lifespan of over 50000 on/off rounds
completely solves the disadvantages like stuck reed, rusted contact points, and
automatic shutdown traditional technical switches often have.

Data-logging Capability

This ESC features the data-logging function that'll record the
optimum ESC& engine conditions, probably the most engine RPM,
and and so on. instantly and allows users to be sure for the information via a LCD
system package or WiFi module after every usage.

Item Specification

Type

Scale : 1/12^th
Brushed/Brushless : BL
Sensored/Sensorless : SD
Waterproof : No

Specifications

Cont./Peak Current : 80A/380A
Input Voltage : 1S Lipo/3-4 Cell NiMH
BEC production : 6V/7.4V@3A

Wires & Connectors

Input Wires : Black-14AWG-200mm*2
Output cables : Black-14AWG-200mm*3
Input Connectors : No
Output Connectors : No

ESC Programing via

SET Button on ESC : perhaps not Supported
LED Program Box : not Supported
LCD Program Box : Supported
WiFi Module : Supported
Programming : split Programming

Firmware

Firmware Upgrade : Supported

Size & Weight

Size : 31.6x25.8x16.2mm
Weight : 23.5g (w/o Wires)

Applications

Motors : SL BL Motors
SD BL Motors
Vehicles : stock 1S course of 1/10^th & 1/12^th on-road racing.
KV Rating/T Count : ≥10.5T, 3650-size motor
