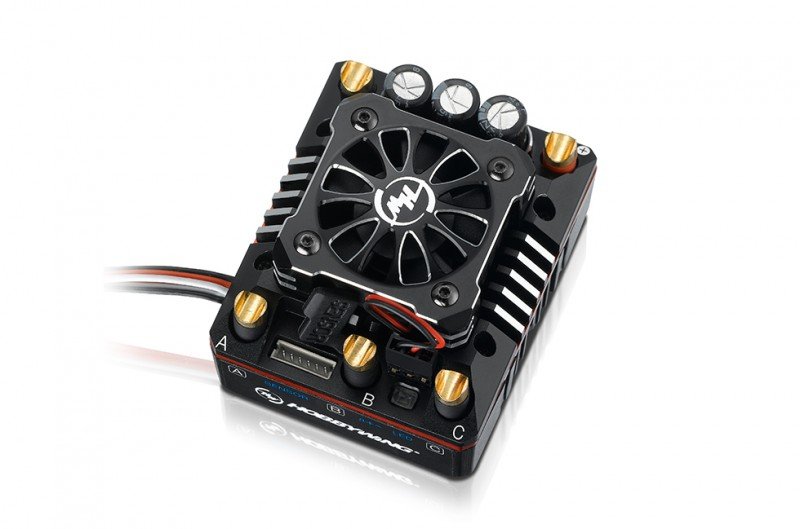

HOBBYWING XeRun XR8 Plus - 30113300  [HW-30113300]

High Reliability & Durability

Built numerous loaded in tough and top-notch elements as well as in combination with cutting-edge
firmware, the XR8 PLUS has the capacity to deliver unmatched energy and satisfaction also for
many hardcore of rushing applications, it is also responsive sufficient to shield itself
from harm due to overloading considering genuine punishment, overuse and/or people error.

Great Flexibility & Versatility

With strong torque and exceptional production, the XR8 PLUS will certainly care for all
the power hungry requirements that professional motorists require. The
adjustable parameters connected to ESC enables motorists to have enjoyment from smooth throttle
reaction when the throttle/brake linearity is utmost needed.

Tall Voltage included BEC

The XR8 PLUS will be the world’s first 1/8^th ESC that integrates a HV built-in BEC with a production
up-to-date completely to 15 Amp and a switchable manufacturing voltage of 6V-7.4V. The high voltage BEC is
developed to manage today’s high voltage servos on need utilized by 1/8^th scale automobiles.

Ultra-Reliable Cooling System

HOBBYWING’s patented ac technology utilizes
proprietary heat-conductive copper pubs to rapidly and
effortlessly move all inside temperature through MOSFET board
towards the integral CNC machined billet aluminum heatsink
housing. The cooling fan adopts a shockproof mounting
which effortlessly decreases the chance of fan harm due
to vehicle’s regular jumps.

Practically free of maintenance Operation

Because of excellent thought and design place in
the XR8 PLUS, users could easily get a virtually upkeep
free working experience, as a result of more impressive range error
sensing and thermal security, a tremendously
tough housing, the greatest in heat-dissipation
technology and a particular shockproof fan mounting capable
to withstand one thing a racer can throw at it.

Effective Dynamic
Timing Algorithm

The world’s first 1/8^th scale competition ESC such as
utilized effective timing technology, with had great
successes in 1/10th scale touring vehicle tournaments for an extended
time now, will somewhat expand the adjustable power manufacturing
choice of the ESC while nonetheless keeping the whole system
effectiveness and smoothness.

Item Specification

Type

• Scale : 1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Present : 150A/950A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC manufacturing : modification Mode:6V/7.4V,6A

Wires & Connectors

• Input Wires : Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : maybe not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 58.7x48.0x36.9mm
• Weight : 127g

Applications

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/8^th Touring Car/Buggy/Truck Competitions
• KV Rating/T Count : 4S LiPo: KV≤3000
  6S LiPo: KV≤2400
  (40XX band of Motors)
