Absolutely Integrated

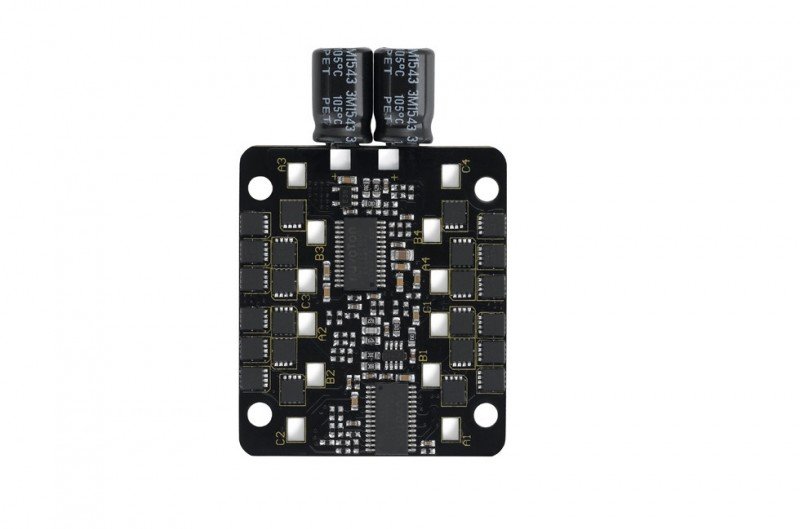

This XRotor 4IN1 Micro ESC not only includes 4 superior 20A ESCs,
1 integral BEC, but additionally manufacturing ports for powering peripherals like FC, camera,
and a slot for FC checking present and voltage immediately. The built-in
framework makes the installation and wiring quick and simple clean.
Direction Reversal via TX
Rotation way of each motor may be set via transmitter.
This saves the matter of re-soldering/re-connecting after connected/soldered engines to
the ESC efficiently and discovered motor runs backwards.
Quality Components
The utilizing higher end 32-bit supply processors
(because of the working regularity completely to 48MHz),
key drive ICs, attained quality MOSFETs,
3-ounce copper and 6 degrees of PCBs guarantees less temperature,
greater effectiveness and rapider reaction.
Oneshot125, Oneshot42 & Multishot Modes eager!
This Xrotor 20A 4IN1 Micro ESC not merely supports
regular throttle signals (utilizing the regularity completely to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(with all the current real-time regularity entirely to 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
higher rate throttle signals. This makes conversation
between FC and ESC more agile, throttle linearity smoother,
and throttle effect rapider.
DEO Technology/Active Freewheeling
The DEO (Driving effectiveness Optimization) technology
applied within the ESC has many advantages:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate quickly. This particular feature allows pilots to easier
perform all maneuvers like razor-sharp turns, altitude changes,
and unexpected braking.
● greater driving effectiveness, much longer journey time.
● Lower ESC heat and a dependable procedure.
Engine Lock-up Protection
This XRotor 20A 4IN1 Micro ESC decreases its manufacturing to engine immediately
when it detects the motor shaft is locked up.
Splash-proof
The whole circuit board and all sorts of types of forms of the components on
it had nano-coating treatment;
this could result in the XRotor 20A 4in1 Micro ESC splash-proof.
Specifications
- Cont./Peak active : 12A×4/18A×4
- LiPo Cells : 1-4S LiPo
- BEC manufacturing : 5V,1A
Wires & Connectors
- Output cables : solder tabs
- Input Connectors : No
- Output Connectors : No
- Firmware : HW Special Program for FPVs
- ESC Programming : Supported
- Stick Programming : Transmitter
- DEO : Supported
- Throttle amount Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- Timing : maybe not Supported
- Motor Rotation : Supported
Size & Weight
- Size : 38.1x37.9x5.3mm
- Weight : 8g
Applications
