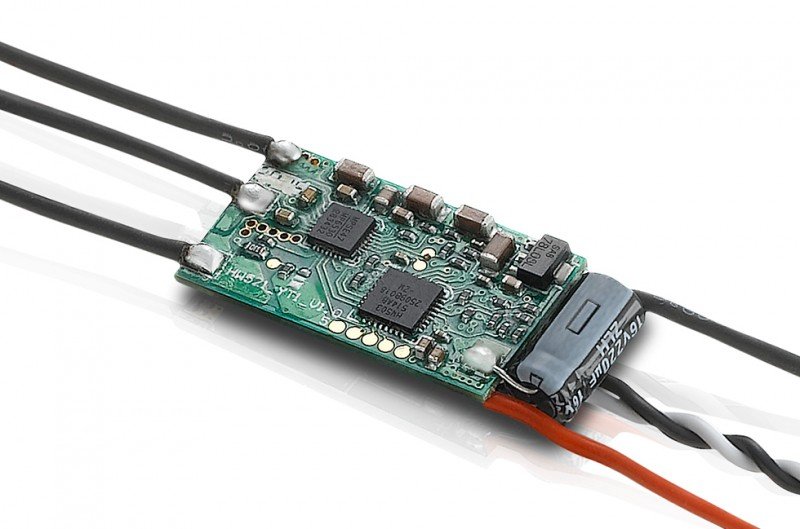

HOBBYWING XRotor 15A - 30901100  [HW-30901100]

The most truly effective ESC for 250/300 system Multi-Rotors

in comparison with regular 12A & 10A QAV ESCs, the XRotor-15A ESC’s current stamina
is enhanced by 25percent to 50percent. There won’t be any problem generate it with 1806 size engine &
2204 size motor. They will offer high power for 250/300 course multi-rotors.

DEO (Driving effectiveness
Optimization)

The XRotor-15A ESC adopted the DEO technology with
multiple advantages:
● Active braking. Whenever reducing the throttle amount, the engine will
decelerate quickly. This sort of function permits pilot to quicker
perform all maneuvers like razor-sharp turns, altitude quick improvements, and
sudden braking.
● greater driving effectiveness, a lot longer journey time.
● Lower ESC heat.
* different companies call this technology by various names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.

Twisted-Pair Signal Cable
Reduces Interference

The twisted-pair throttle indicator cable efficiently decreases
interruption manufactured in alert transmission and makes
the trip more stable and dependable.

Item Specification

Specifications

• Cont./Peak Present : 15A/20A
• LiPo Cells : 2-4S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-20AWG-100mm*1/Black-20AWG-100mm*1
• Output cables : Black-20AWG-100mm*3
• Input Connectors : No
• Output Connectors : 2.0mm silver Connectors (Female)

Features

• Throttle quantity Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 47.0x17.0x8.3mm
• Weight : 10.5g
