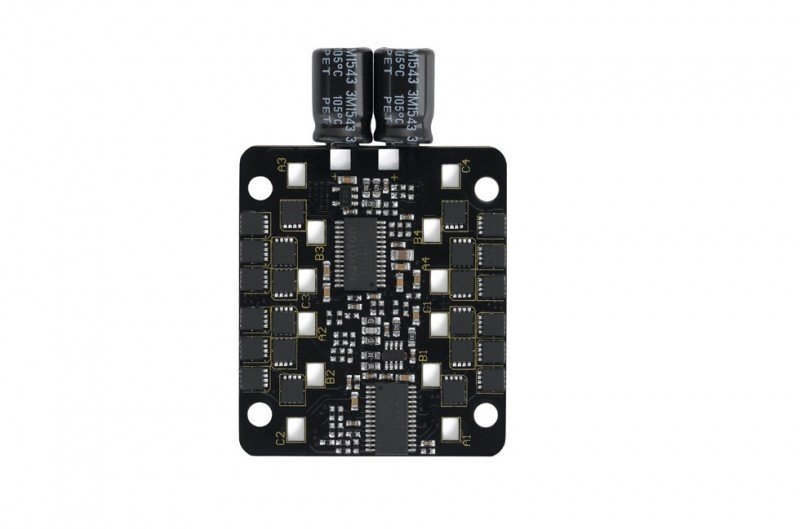

HOBBYWING Xrotor 20A 4IN1 Micro - 30901065  [HW-30901065]

Surely Integrated

This XRotor 4IN1 Micro ESC not merely includes 4 superior 20A ESCs,
1 integral BEC, but additionally production ports for powering peripherals like FC, digicam,
and a slot for FC checking present and voltage immediately. The vital
framework makes the installation and wiring quick and easy clean.

Direction Reversal via TX

Rotation approach to each engine are set via transmitter.
This saves the problem of re-soldering/re-connecting after connected/soldered machines to
the ESC freely and discovered motor runs backwards.

Quality Components

The making use of high end 32-bit supply processors
(aided by the running regularity as high as 48MHz),
integral drive ICs, brought in quality MOSFETs,
3-ounce copper and 6 levels of PCBs guarantees less temperature,
greater effectiveness and rapider impact.

Oneshot125, Oneshot42 & Multishot Modes set!

This Xrotor 20A 4IN1 Micro ESC not just supports
regular throttle signals (using the regularity completely to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(utilizing the real-time regularity due to the fact high as 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
higher level throttle signals. This will make connection
between FC and ESC more agile, throttle linearity smoother,
and throttle reaction rapider.

DEO Technology/Active Freewheeling

The DEO (Driving effectiveness Optimization) technology
applied inside ESC has numerous benefits:
● Active braking. Whenever reducing the throttle quantity, the motor will
decelerate quickly. This kind of function enables pilots to easier
perform all maneuvers like razor-sharp turns, altitude adjustments,
and unexpected braking.
● greater driving effectiveness, much longer journey time.
● Lower ESC temperature and an even more dependable procedure.

Motor Lock-up Protection

This XRotor 20A 4IN1 Micro ESC lessens its production to engine instantly
about detects the engine shaft is locked up.

Splash-proof

The whole circuit board and all kinds of sun and rain on
it went through nano-coating treatment;
this might end in the XRotor 20A 4in1 Micro ESC splash-proof.

Specifications

• Cont./Peak active : 20A×4/25A×4
• LiPo Cells : 3-4S LiPo
• BEC manufacturing : 5.3V/12V，3A

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : HW Special Program for FPVs
• ESC Programming : Supported
• Stick Programming : Transmitter
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 54x36x7mm
• Weight : 24.5g

Applications

• 130-280mm FPVs
