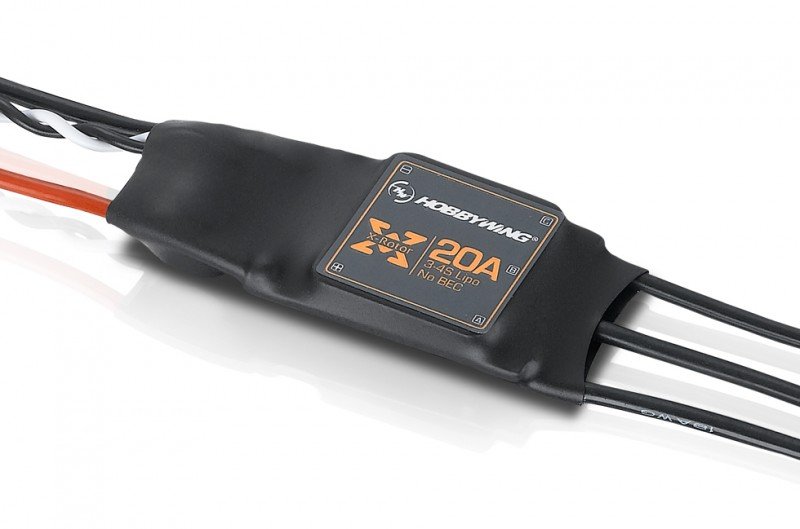

HOBBYWING XRotor 20A(Asian Version A) - 30901012  [HW-30901012]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, that will be much better than various open-source
programs, significantly improves throttle effect.

A simple task to Use

All settings except the "Timing (adjustable between high and Intermediate)"
are preset, making use simple, excessively smart and adaptive.

Less alert Interference

The twisted-pair throttle indication cable effectively decreases disruption produced
in alert transmission and makes journey more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs employed by this XRotor 20A ESC make
interior opposition low but current stamina high.

Super high Throttle Signal

Compatible with different flight-control systems and helps a
throttle indicator regularity completely to 621Hz.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle quantity Calibration : Supported
• Stick Programming : Supported
• DEO : not Supported
• OneShot Mode : maybe not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 42.0x21.6x12.0mm
• Weight : 18.5g

Applications

• 330/450 Course Multirotors
