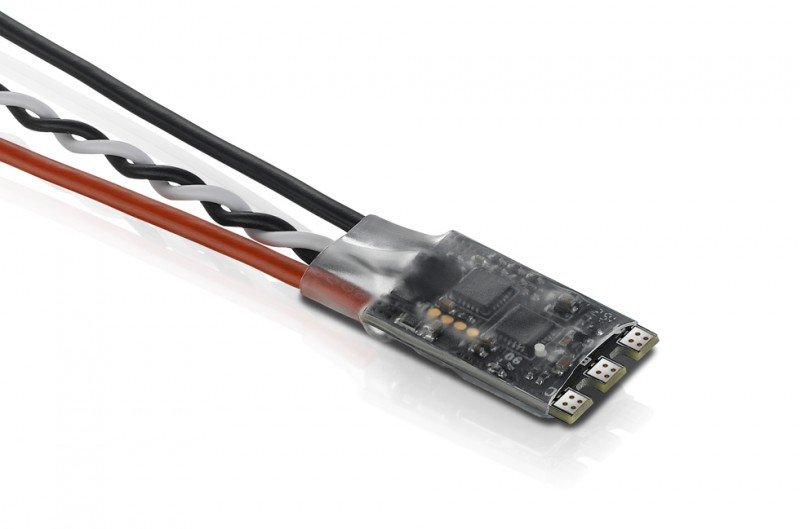

HOBBYWING XRotor micro 20A BLHeli - 30901066  [HW-30901066]

Super Small & Light

ESCs with extremely small size and lightweight are
particularly made for competition FPV drones.

Quality Components

The usage of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 degrees of PCBs along with other
quality elements guarantees less temperature, greater effectiveness and rapider effect.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware through the indication cable (on ESCs), and system 4 ESCs additionally after
linking their journey controller toward BLHeliSuite pc software if the journey controller employs the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey a little while heat
dissipation. The ESCs assist OneShot125 higher level throttle
indication and regular throttle sign (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle indicator cable effectively decreases disruption stated in alert
transmission and makes the journey much more stable and dependable.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 2-4S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : maybe not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
