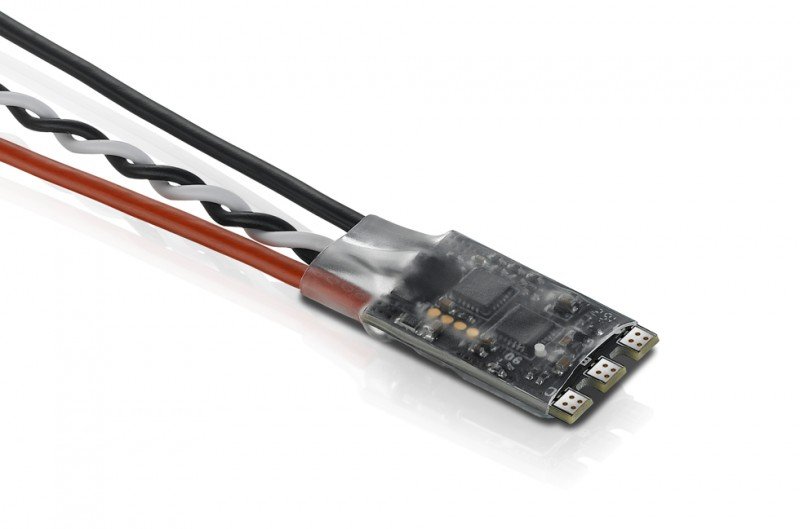

HOBBYWING XRotor micro 30A BLHeli - 30901071  [HW-30901071]

Super Small & Light

ESCs with incredibly little size and light-weight are
particularly made for competition FPV drones.

Quality Components

The making use of F396 48MHz MCU, earned MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 degrees of PCBs along with other
quality elements guarantees less heat, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the sign cable (on ESCs), and system 4 ESCs besides after
connecting their journey controller towards the BLHeliSuite computer programs when journey controller utilizes the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the motor retardation and enables
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey a while temperature
dissipation. The ESCs help OneShot125 high rate throttle
indication and regular throttle indicator (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle sign cable effectively decreases disruption stated in alert
transmission and makes the journey more stable and dependable.

Specifications

• Cont./Peak active : 30A/40A
• LiPo Cells : 2-4S LiPo
• BEC manufacturing : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : maybe not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
